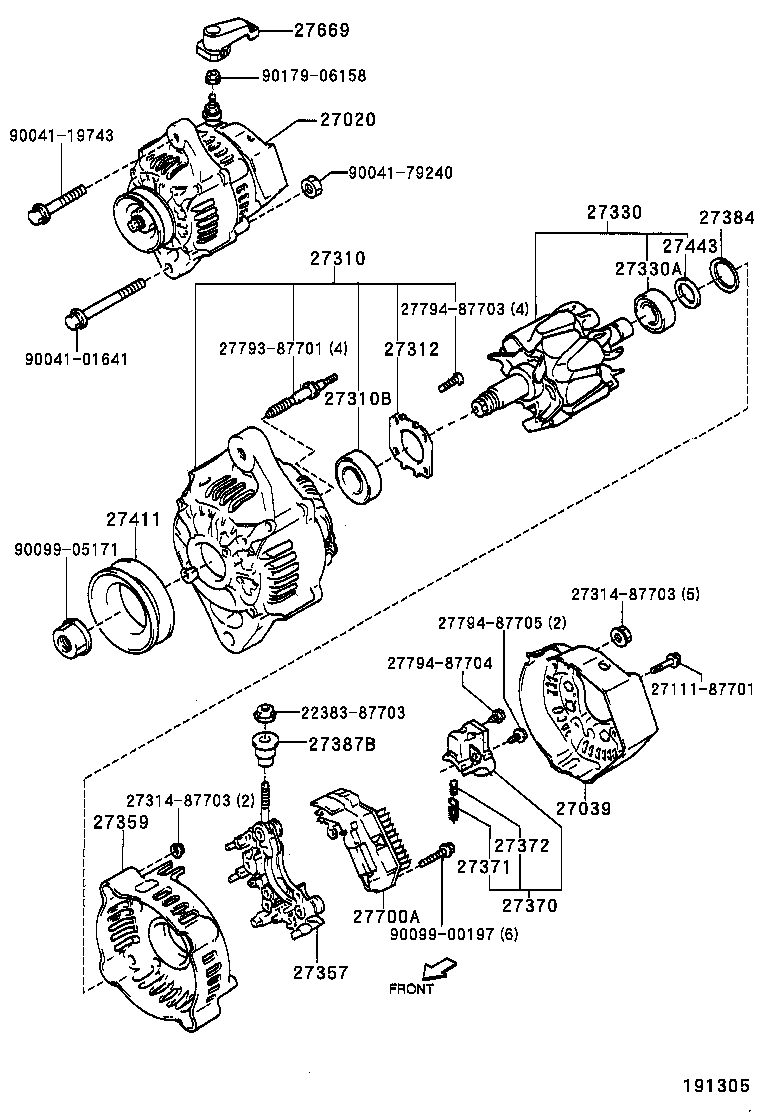

Toyota Sparky S221E ALTERNATOR - JDM Part Detective

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-97504	K3VE..S221,231..X..HIR;K3VE..S221,231..5MT..G;K3VE..S221,231..5MT..LOR 12V 70A	09/2000 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-97201	K3VE..S221,231	09/2000 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-97502	K3VE..S221,231..X..HIR;K3VE..S221,231..5MT..G;K3VE..S221,231..5MT..LOR	09/2000 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
27791-87707	K3VE..S221,231	09/2000 - 12/2999	1
27312 - PLATE, RETAINER
27312-87704	K3VE..S221,231	09/2000 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-97201	K3VE..S221,231..X..HIR;K3VE..S221,231..5MT..G;K3VE..S221,231..5MT..LOR	09/2000 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
27791-87708	K3VE..S221,231	09/2000 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-87305	K3VE..S221,231..X..HIR;K3VE..S221,231..5MT..G;K3VE..S221,231..5MT..LOR	09/2000 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-97502	K3VE..S221,231	09/2000 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-87708	K3VE..S221,231	09/2000 - 12/2999	1
27371 - BRUSH, ALTERNATOR
27371-87501	K3VE..S221,231	09/2000 - 12/2999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-87501	K3VE..S221,231	09/2000 - 12/2999	2
27384 - WASHER
27384-87702	K3VE..S221,231	09/2000 - 12/2999	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-87705	K3VE..S221,231	09/2000 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-97202	K3VE..S221,231	09/2000 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-87501	K3VE..S221,231	09/2000 - 12/2999	1
27669 - CAP, GENERATOR
27669-87201	K3VE..S221,231	09/2000 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-97204	K3VE..S221,231	09/2000 - 12/2999	1
Common parts
22383-87703
27111-87701
27314-87703
27793-87701
27794-87703
27794-87704
27794-87705
90041-01641
90041-19743
90041-79240
90099-00197
90099-05171
90179-06158

S221E-ZMRF (2000)

(0009- )
