S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)

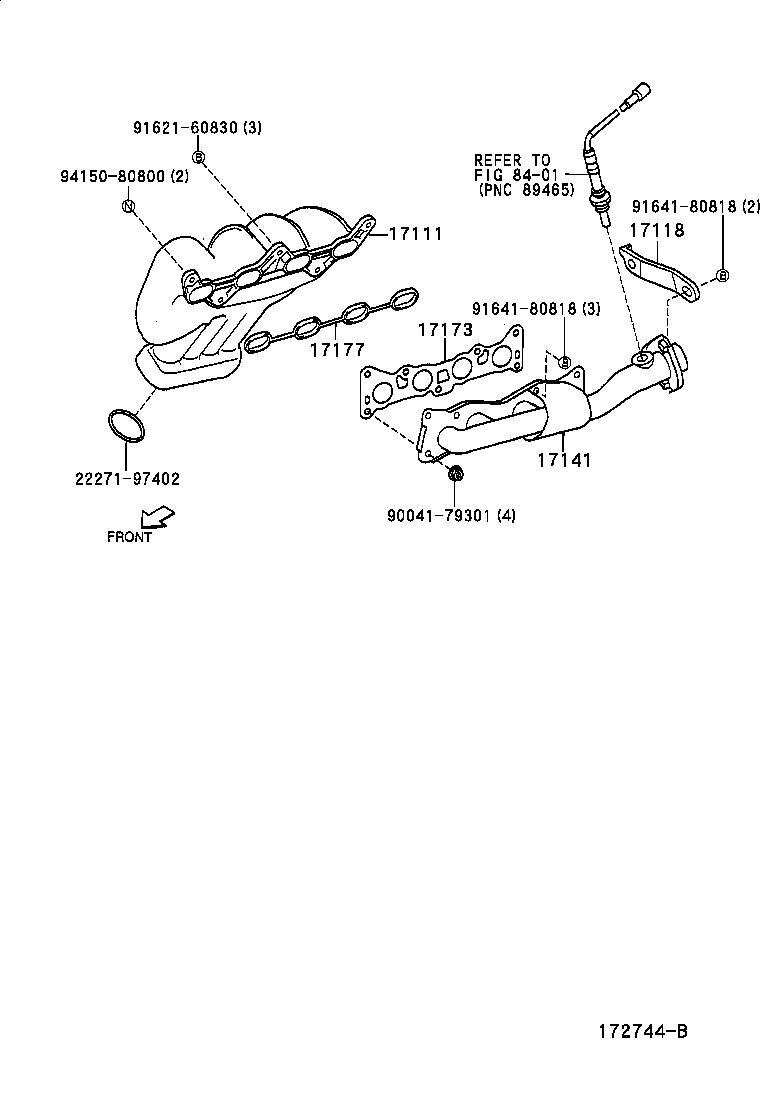

(0009-0206)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-97401 |
K3VE..S221,231 |
1 | ||
| 17111-97402 |
K3VE..S221,231 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-97405 |
K3VE..S221,231 |
1 | ||
| 17118-97402 |
K3VE..S221,231 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-97403 |
K3VE..S221,231 |
1 | ||
| 17141-97401 |
K3VE..S221,231 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-97402 |
K3VE..S221,231 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-97401 |
K3VE..S221,231 |
1 | ||
| Common parts | ||||
| 22271-97402 | ||||
| 90041-79301 | ||||
| 91621-60830 | ||||
| 91641-80818 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

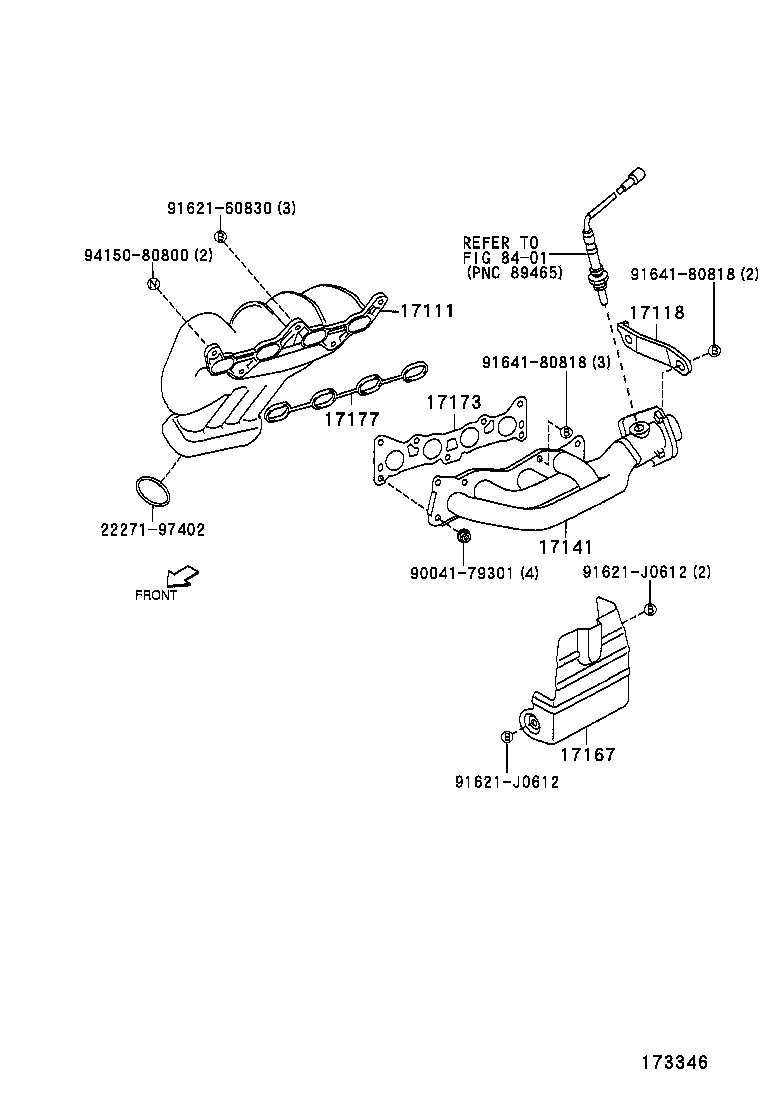

(0206- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-97401 |
K3VE..S221,231 |
1 | ||
| 17111-97402 |
K3VE..S221,231 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-97405 |
K3VE..S221,231 |
1 | ||
| 17118-97402 |
K3VE..S221,231 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-97403 |
K3VE..S221,231 |
1 | ||
| 17141-97401 |
K3VE..S221,231 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-97502 |
K3VE..S221,231 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-97402 |
K3VE..S221,231 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-97401 |
K3VE..S221,231 |
1 | ||
| Common parts | ||||
| 22271-97402 | ||||
| 90041-79301 | ||||
| 91621-60830 | ||||
| 91621-J0612 | ||||
| 91641-80818 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
