1603 - RADIATOR & WATER OUTLET

S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003

Engine K3VE

Transmission 5MT MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0009-0206)

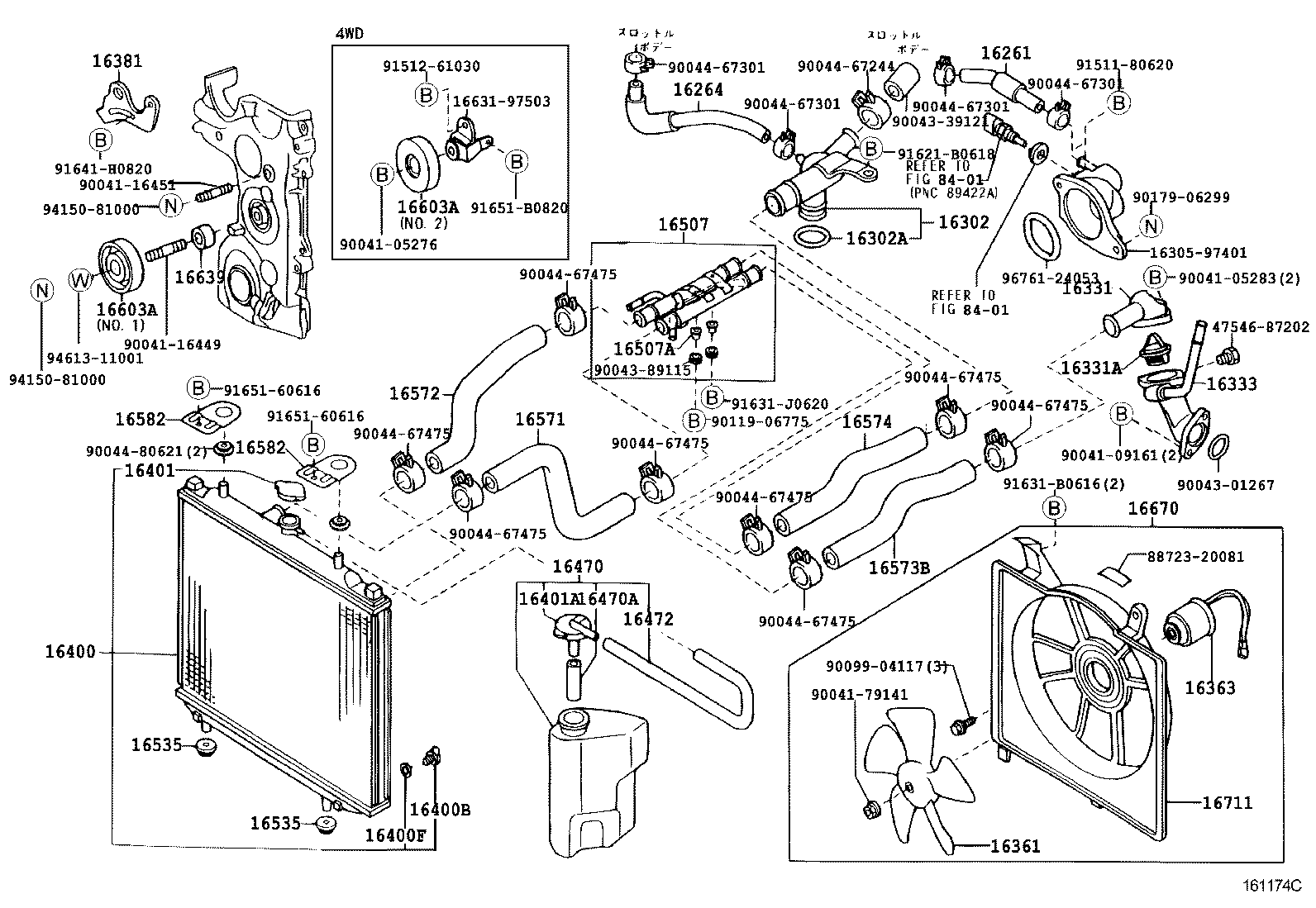

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-97402	K3VE..S221,231	09/2000 - 12/2999	1
16264 - HOSE, WATER BY-PASS, NO.2
16264-97401	K3VE..S221,231	09/2000 - 12/2999	1
16302 - HOUSING SUB-ASSY, WATER INLET
16302-97401	K3VE..S221,231	09/2000 - 12/2999	1
16302A - SEAL, RUBBER(FOR WATER INLET HOUSING)
90043-01274	K3VE..S221,231	09/2000 - 12/2999	1
16331 - OUTLET, WATER
16331-97401	K3VE..S221,231	09/2000 - 12/2999	1
16331A - THERMOSTAT
90048-33087	K3VE..S221,231	09/2000 - 12/2001	1
90048-33091	K3VE..S221,231	12/2001 - 12/2999	1
16333 - HOUSING, WATER OUTLET
16303-97401	K3VE..S221,231	09/2000 - 12/2999	1
16361 - FAN
16690-97505	K3VE..S221,231	09/2000 - 12/2999	1
16363 - MOTOR, COOLING FAN
16680-97201	K3VE..S221,231	09/2000 - 12/2999	1
16381 - BAR, FAN BELT ADJUSTING
16381-97501	K3VE..S221,231	09/2000 - 12/2999	1
16400 - RADIATOR ASSY
16400-97511	K3VE..S221,231..5MT	09/2000 - 12/2999	1
16400B - PLUG, RADIATOR DRAIN COCK
23322-87101	K3VE..S221,231	09/2000 - 12/2999	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16442-97201	K3VE..S221,231	09/2000 - 12/2999	1
16401 - CAP SUB-ASSY, RADIATOR
16401-97202	K3VE..S221,231	09/2000 - 12/2999	1
16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK
16475-97501	K3VE..S221,231	09/2000 - 04/2001	1
16471-87402	K3VE..S221,231	05/2001 - 12/2999	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-97503	K3VE..S221,231	09/2000 - 12/2999	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16472-97501	K3VE..S221,231	09/2000 - 12/2999	1
16472 - HOSE, BREATHER
90044-44038	K3VE..S221,231	09/2000 - 12/2999	1
16507 - PIPE SUB-ASSY, RADIATOR
16507-97504	K3VE..S221,231	09/2000 - 06/2002	1
16507A - PLUG(FOR RADIATOR PIPE)
90044-80393	K3VE..S221,231	09/2000 - 06/2002	2
16535 - SUPPORT, RADIATOR, LOWER
90044-80474	K3VE..S221,231	09/2000 - 12/2999	2
16535 - SUPPORT, RADIATOR, LOWER
90044-80474	K3VE..S221,231	09/2000 - 12/2999	2
16571 - HOSE, RADIATOR, INLET
16571-97506	K3VE..S221,231	06/2002 - 12/2999	1
16571-97505	K3VE..S221,231	09/2000 - 06/2002	1
16572 - HOSE, RADIATOR, OUTLET
16572-97504	K3VE..S221,231	09/2000 - 06/2002	1
16058-97501	K3VE..S221,231	06/2002 - 12/2999	1
16573B - HOSE, RADIATOR, NO.3
16573-97503	K3VE..S221,231	09/2000 - 06/2002	1
16574 - HOSE, RADIATOR, NO.4
16574-97502	K3VE..S221,231	09/2000 - 06/2002	1
16582 - BRACKET, RADIATOR, NO.1
16582-97502	K3VE..S221,231	09/2000 - 12/2999	2
16582 - BRACKET, RADIATOR, NO.1
16582-97502	K3VE..S221,231	09/2000 - 12/2999	2
16603A - PULLEY SUB-ASSY, IDLER, NO.1
16603-97401	K3VE..S221,231 NO.1	09/2000 - 12/2999	1
16603A - PULLEY SUB-ASSY, IDLER, NO.1
16603-97401	K3VE..S221,231 NO.1	09/2000 - 12/2999	1
16639 - SPACER, IDLER PULLEY
16639-97401	K3VE..S221,231	09/2000 - 12/2999	1
16670 - MOTER ASSY, FAN W/SHROUD
16670-97509	K3VE..S221,231	09/2000 - 12/2999	1
16711 - SHROUD, FAN
16700-97507	K3VE..S221,231	09/2000 - 12/2999	1
Common parts
16305-97401
16631-97503
47546-87202
88723-20081
90041-05276
90041-05283
90041-09161
90041-16449
90041-16451
90041-79141
90043-01267
90043-39121
90043-89115
90044-67244
90044-67301
90044-67475
90044-80621
90099-04117
90119-06775
90179-06299
91511-80620
91512-61030
91621-B0618
91631-B0616
91631-J0620
91641-H0820
91651-60616
91651-B0820
94150-81000
94613-11001
96761-24053
Linked diagrams
8401

(0206- )

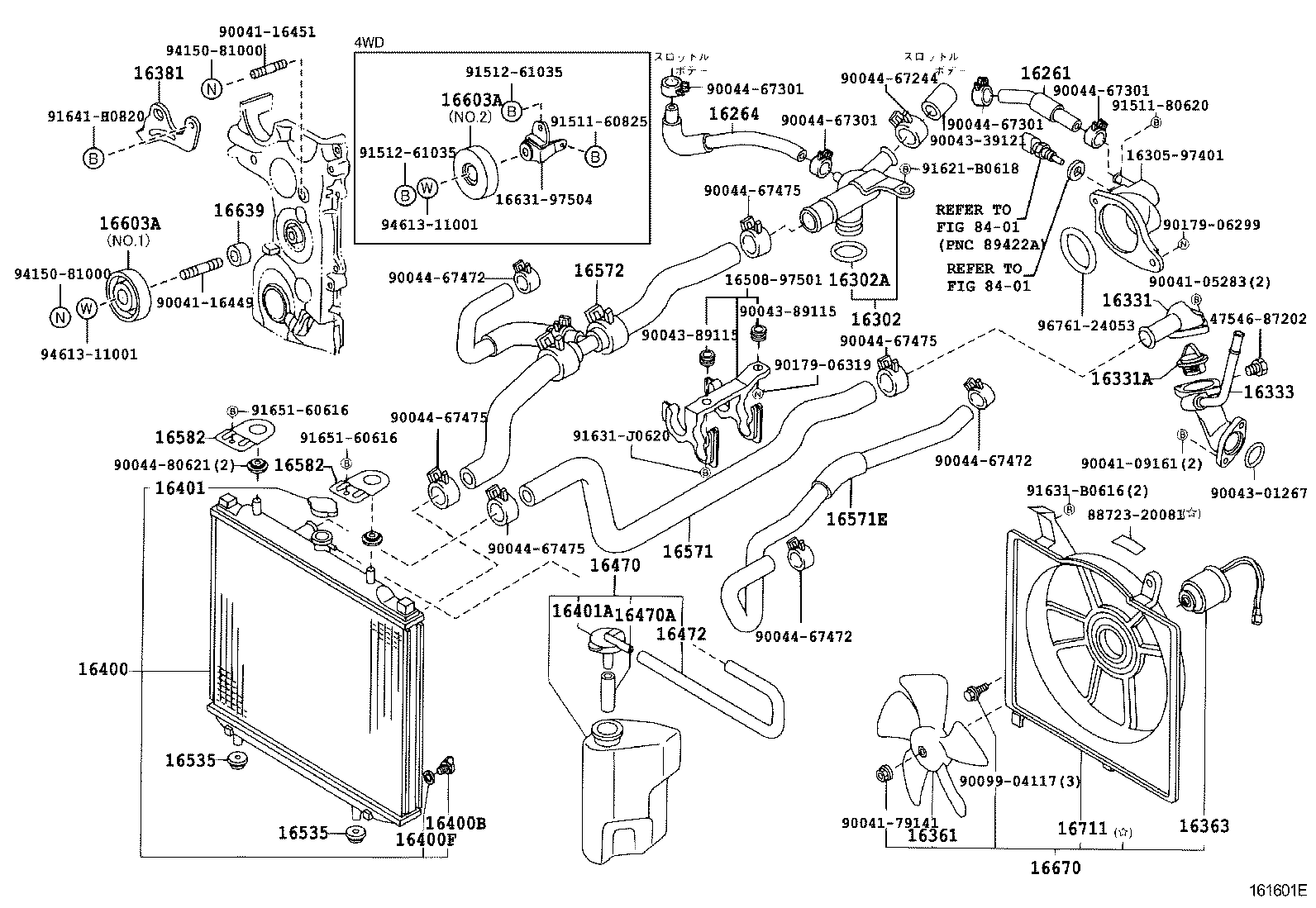

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-97402	K3VE..S221,231	09/2000 - 12/2999	1
16264 - HOSE, WATER BY-PASS, NO.2
16264-97401	K3VE..S221,231	09/2000 - 12/2999	1
16302 - HOUSING SUB-ASSY, WATER INLET
16302-97401	K3VE..S221,231	09/2000 - 12/2999	1
16302A - SEAL, RUBBER(FOR WATER INLET HOUSING)
90043-01274	K3VE..S221,231	09/2000 - 12/2999	1
16331 - OUTLET, WATER
16331-97401	K3VE..S221,231	09/2000 - 12/2999	1
16331A - THERMOSTAT
90048-33087	K3VE..S221,231	09/2000 - 12/2001	1
90048-33091	K3VE..S221,231	12/2001 - 12/2999	1
16333 - HOUSING, WATER OUTLET
16303-97401	K3VE..S221,231	09/2000 - 12/2999	1
16361 - FAN
16690-97505	K3VE..S221,231	09/2000 - 12/2999	1
16363 - MOTOR, COOLING FAN
16680-97201	K3VE..S221,231	09/2000 - 12/2999	1
16381 - BAR, FAN BELT ADJUSTING
16381-97501	K3VE..S221,231	09/2000 - 12/2999	1
16400 - RADIATOR ASSY
16400-97511	K3VE..S221,231..5MT	09/2000 - 12/2999	1
16400B - PLUG, RADIATOR DRAIN COCK
23322-87101	K3VE..S221,231	09/2000 - 12/2999	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16442-97201	K3VE..S221,231	09/2000 - 12/2999	1
16401 - CAP SUB-ASSY, RADIATOR
16401-97202	K3VE..S221,231	09/2000 - 12/2999	1
16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK
16475-97501	K3VE..S221,231	09/2000 - 04/2001	1
16471-87402	K3VE..S221,231	05/2001 - 12/2999	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-97503	K3VE..S221,231	09/2000 - 12/2999	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16472-97501	K3VE..S221,231	09/2000 - 12/2999	1
16472 - HOSE, BREATHER
90044-44038	K3VE..S221,231	09/2000 - 12/2999	1
16535 - SUPPORT, RADIATOR, LOWER
90044-80474	K3VE..S221,231	09/2000 - 12/2999	2
16535 - SUPPORT, RADIATOR, LOWER
90044-80474	K3VE..S221,231	09/2000 - 12/2999	2
16571 - HOSE, RADIATOR, INLET
16571-97506	K3VE..S221,231	06/2002 - 12/2999	1
16571-97505	K3VE..S221,231	09/2000 - 06/2002	1
16571E - HOSE, WATER
87245-97522	K3VE..S221,231	06/2002 - 12/2999	1
16572 - HOSE, RADIATOR, OUTLET
16572-97504	K3VE..S221,231	09/2000 - 06/2002	1
16058-97501	K3VE..S221,231	06/2002 - 12/2999	1
16582 - BRACKET, RADIATOR, NO.1
16582-97502	K3VE..S221,231	09/2000 - 12/2999	2
16582 - BRACKET, RADIATOR, NO.1
16582-97502	K3VE..S221,231	09/2000 - 12/2999	2
16603A - PULLEY SUB-ASSY, IDLER, NO.1
16603-97401	K3VE..S221,231 NO.1	09/2000 - 12/2999	1
16603A - PULLEY SUB-ASSY, IDLER, NO.1
16603-97401	K3VE..S221,231 NO.1	09/2000 - 12/2999	1
16639 - SPACER, IDLER PULLEY
16639-97401	K3VE..S221,231	09/2000 - 12/2999	1
16670 - MOTER ASSY, FAN W/SHROUD
16670-97509	K3VE..S221,231	09/2000 - 12/2999	1
16711 - SHROUD, FAN
16700-97507	K3VE..S221,231	09/2000 - 12/2999	1
Common parts
16305-97401
16508-97501
16631-97504
47546-87202
88723-20081
90041-05283
90041-09161
90041-16449
90041-16451
90041-79141
90043-01267
90043-39121
90043-89115
90044-67244
90044-67301
90044-67472
90044-67475
90044-80621
90099-04117
90179-06299
90179-06319
91511-60825
91511-80620
91512-61035
91621-B0618
91631-B0616
91631-J0620
91641-H0820
91651-60616
94150-81000
94613-11001
96761-24053
