S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

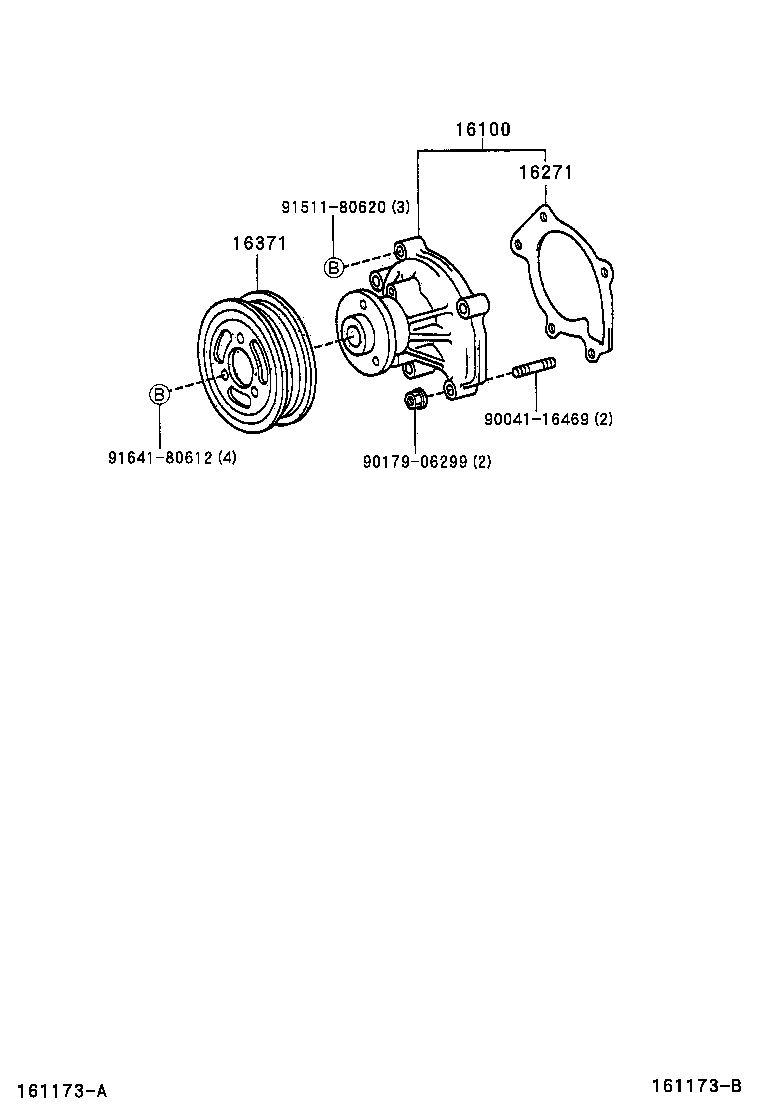

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-97406 |
K3VE..S221,231 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-97401 |
K3VE..S221,231 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-97401 |
K3VE..S221,231 |
1 | ||
| Common parts | ||||
| 90041-16469 | ||||
| 90179-06299 | ||||
| 91511-80620 | ||||
| 91641-80612 | ||||
