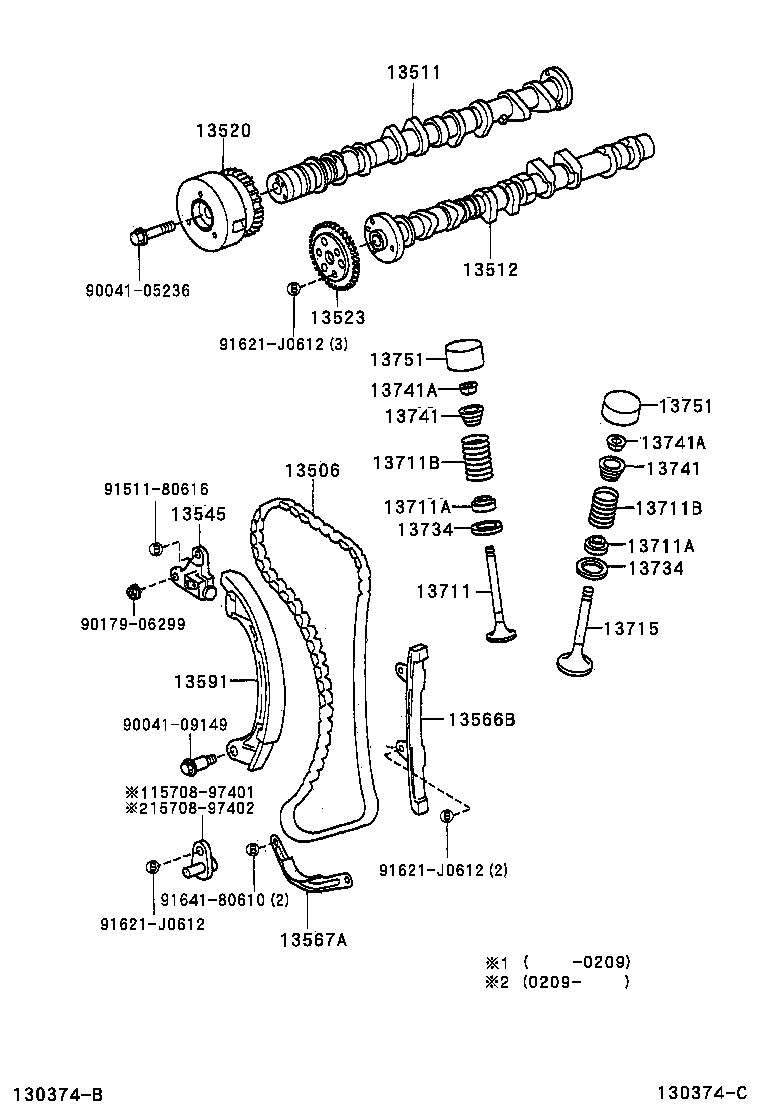

S221E-ZMRF (2000)
Toyota Sparky
(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-97401 |
K3VE..S221,231 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-97401 |
K3VE..S221,231 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-97401 |
K3VE..S221,231 |
1 | ||
| 13520 - SPROCKET ASSY, CAMSHAFT TIMING | ||||
| 13520-97401 |
K3VE..S221,231 |
1 | ||
| 13520-97402 |
K3VE..S221,231 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-97401 |
K3VE..S221,231 |
1 | ||
| 13545 - PLUNGER, CHAIN TENSIONER | ||||
| 13545-97401 |
K3VE..S221,231 |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-97401 |
K3VE..S221,231 |
1 | ||
| 13567A - GUIDE, TIMING CHAIN, NO.2 | ||||
| 13567-97401 |
K3VE..S221,231 |
1 | ||
| 13591 - ARM, TIMING CHAIN TENSION | ||||
| 13591-97401 |
K3VE..S221,231 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-97401 |
K3VE..S221,231 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12021 |
K3VE..S221,231 |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90048-12021 |
K3VE..S221,231 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01568 |
K3VE..S221,231 ｵﾚﾝｼﾞ |
16 | ||
| 90045-01567 |
K3VE..S221,231 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90045-01568 |
K3VE..S221,231 ｵﾚﾝｼﾞ |
16 | ||
| 90045-01567 |
K3VE..S221,231 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-97401 |
K3VE..S221,231 |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87206 |
K3VE..S221,231 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-87206 |
K3VE..S221,231 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-97401 |
K3VE..S221,231 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-97401 |
K3VE..S221,231 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-97401 |
K3VE..S221,231 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
K3VE..S221,231 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90048-13013 |
K3VE..S221,231 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-9740114 |
K3VE..S221,231 MARK14,厚さ=5.14 |
16 | ||
| 13751-9740132 |
K3VE..S221,231 MARK32,厚さ=5.32 |
16 | ||
| 13751-9740112 |
K3VE..S221,231 MARK12,厚さ=5.12 |
16 | ||
| 13751-9740142 |
K3VE..S221,231 MARK42,厚さ=5.42 |
16 | ||
| 13751-9740130 |
K3VE..S221,231 MARK30,厚さ=5.30 |
16 | ||
| 13751-9740128 |
K3VE..S221,231 MARK28,厚さ=5.28 |
16 | ||
| 13751-9740116 |
K3VE..S221,231 MARK16,厚さ=5.16 |
16 | ||
| 13751-9740120 |
K3VE..S221,231 MARK20,厚さ=5.20 |
16 | ||
| 13751-9740152 |
K3VE..S221,231 MARK52,厚さ=5.52 |
16 | ||
| 13751-9740122 |
K3VE..S221,231 MARK22,厚さ=5.22 |
16 | ||
| 13751-9740118 |
K3VE..S221,231 MARK18,厚さ=5.18 |
16 | ||
| 13751-9740150 |
K3VE..S221,231 MARK50,厚さ=5.50 |
16 | ||
| 13751-9740148 |
K3VE..S221,231 MARK48,厚さ=5.48 |
16 | ||
| 13751-9740146 |
K3VE..S221,231 MARK46,厚さ=5.46 |
16 | ||
| 13751-9740136 |
K3VE..S221,231 MARK36,厚さ=5.36 |
16 | ||
| 13751-9740156 |
K3VE..S221,231 MARK56,厚さ=5.56 |
16 | ||
| 13751-9740138 |
K3VE..S221,231 MARK38,厚さ=5.38 |
16 | ||
| 13751-9740140 |
K3VE..S221,231 MARK40,厚さ=5.40 |
16 | ||
| 13751-9740124 |
K3VE..S221,231 MARK24,厚さ=5.24 |
16 | ||
| 13751-9740168 |
K3VE..S221,231 MARK68,厚さ=5.68 |
16 | ||
| 13751-9740134 |
K3VE..S221,231 MARK34,厚さ=5.34 |
16 | ||
| 13751-9740154 |
K3VE..S221,231 MARK54,厚さ=5.54 |
16 | ||
| 13751-9740144 |
K3VE..S221,231 MARK44,厚さ=5.44 |
16 | ||
| 13751-9740158 |
K3VE..S221,231 MARK58,厚さ=5.58 |
16 | ||
| 13751-9740160 |
K3VE..S221,231 MARK60,厚さ=5.60 |
16 | ||
| 13751-9740166 |
K3VE..S221,231 MARK66,厚さ=5.66 |
16 | ||
| 13751-9740162 |
K3VE..S221,231 MARK62,厚さ=5.62 |
16 | ||
| 13751-9740164 |
K3VE..S221,231 MARK64,厚さ=5.64 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-9740114 |
K3VE..S221,231 MARK14,厚さ=5.14 |
16 | ||
| 13751-9740132 |
K3VE..S221,231 MARK32,厚さ=5.32 |
16 | ||
| 13751-9740112 |
K3VE..S221,231 MARK12,厚さ=5.12 |
16 | ||
| 13751-9740142 |
K3VE..S221,231 MARK42,厚さ=5.42 |
16 | ||
| 13751-9740130 |
K3VE..S221,231 MARK30,厚さ=5.30 |
16 | ||
| 13751-9740128 |
K3VE..S221,231 MARK28,厚さ=5.28 |
16 | ||
| 13751-9740116 |
K3VE..S221,231 MARK16,厚さ=5.16 |
16 | ||
| 13751-9740120 |
K3VE..S221,231 MARK20,厚さ=5.20 |
16 | ||
| 13751-9740152 |
K3VE..S221,231 MARK52,厚さ=5.52 |
16 | ||
| 13751-9740122 |
K3VE..S221,231 MARK22,厚さ=5.22 |
16 | ||
| 13751-9740118 |
K3VE..S221,231 MARK18,厚さ=5.18 |
16 | ||
| 13751-9740150 |
K3VE..S221,231 MARK50,厚さ=5.50 |
16 | ||
| 13751-9740148 |
K3VE..S221,231 MARK48,厚さ=5.48 |
16 | ||
| 13751-9740146 |
K3VE..S221,231 MARK46,厚さ=5.46 |
16 | ||
| 13751-9740136 |
K3VE..S221,231 MARK36,厚さ=5.36 |
16 | ||
| 13751-9740156 |
K3VE..S221,231 MARK56,厚さ=5.56 |
16 | ||
| 13751-9740138 |
K3VE..S221,231 MARK38,厚さ=5.38 |
16 | ||
| 13751-9740140 |
K3VE..S221,231 MARK40,厚さ=5.40 |
16 | ||
| 13751-9740124 |
K3VE..S221,231 MARK24,厚さ=5.24 |
16 | ||
| 13751-9740168 |
K3VE..S221,231 MARK68,厚さ=5.68 |
16 | ||
| 13751-9740134 |
K3VE..S221,231 MARK34,厚さ=5.34 |
16 | ||
| 13751-9740154 |
K3VE..S221,231 MARK54,厚さ=5.54 |
16 | ||
| 13751-9740144 |
K3VE..S221,231 MARK44,厚さ=5.44 |
16 | ||
| 13751-9740158 |
K3VE..S221,231 MARK58,厚さ=5.58 |
16 | ||
| 13751-9740160 |
K3VE..S221,231 MARK60,厚さ=5.60 |
16 | ||
| 13751-9740166 |
K3VE..S221,231 MARK66,厚さ=5.66 |
16 | ||
| 13751-9740162 |
K3VE..S221,231 MARK62,厚さ=5.62 |
16 | ||
| 13751-9740164 |
K3VE..S221,231 MARK64,厚さ=5.64 |
16 | ||
| Common parts | ||||
| 15708-97401 | ||||
| 15708-97402 | ||||
| 90041-05236 | ||||
| 90041-09149 | ||||
| 90179-06299 | ||||
| 91511-80616 | ||||
| 91621-J0612 | ||||
| 91641-80610 | ||||
