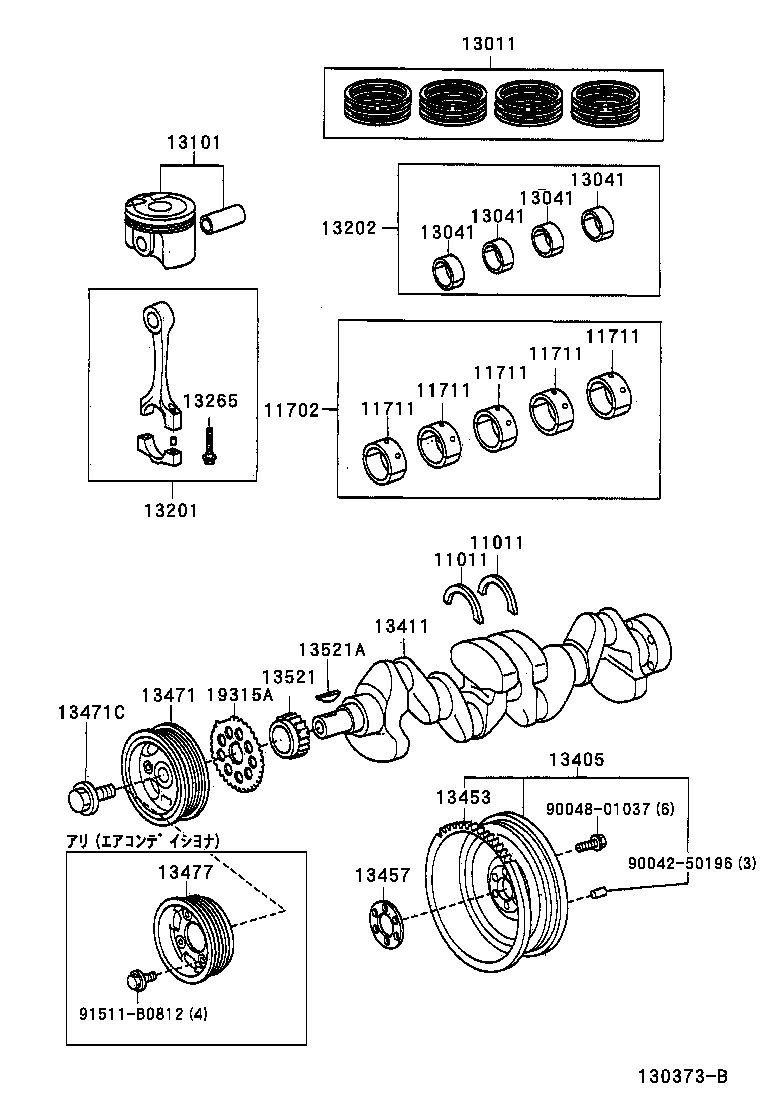

S221E-ZMRF (2000)
Toyota Sparky
(0009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11791-97401 |
K3VE..S221,231 STD |
2 | ||
| 11792-97401 |
K3VE..S221,231 O/S 0.125 |
2 | ||
| 11793-97401 |
K3VE..S221,231 O/S 0.25 |
2 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11791-97401 |
K3VE..S221,231 STD |
2 | ||
| 11792-97401 |
K3VE..S221,231 O/S 0.125 |
2 | ||
| 11793-97401 |
K3VE..S221,231 O/S 0.25 |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-97401 |
K3VE..S221,231 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-9740105 |
K3VE..S221,231 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
5 | ||
| 11701-9740102 |
K3VE..S221,231 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
5 | ||
| 11701-9740104 |
K3VE..S221,231 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
5 | ||
| 11701-9740103 |
K3VE..S221,231 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-9740105 |
K3VE..S221,231 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
5 | ||
| 11701-9740102 |
K3VE..S221,231 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
5 | ||
| 11701-9740104 |
K3VE..S221,231 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
5 | ||
| 11701-9740103 |
K3VE..S221,231 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-9740105 |
K3VE..S221,231 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
5 | ||
| 11701-9740102 |
K3VE..S221,231 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
5 | ||
| 11701-9740104 |
K3VE..S221,231 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
5 | ||
| 11701-9740103 |
K3VE..S221,231 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-9740105 |
K3VE..S221,231 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
5 | ||
| 11701-9740102 |
K3VE..S221,231 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
5 | ||
| 11701-9740104 |
K3VE..S221,231 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
5 | ||
| 11701-9740103 |
K3VE..S221,231 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-9740105 |
K3VE..S221,231 MARK 5:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 5 |
5 | ||
| 11701-9740102 |
K3VE..S221,231 MARK 2:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 2 |
5 | ||
| 11701-9740104 |
K3VE..S221,231 MARK 4:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 4 |
5 | ||
| 11701-9740103 |
K3VE..S221,231 MARK 3:ｼﾕｳﾘｼﾖ ｻﾝｼﾖｳ,MARK 3 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-97401 |
K3VE..S221,231 O/S 0.50 |
1 | ||
| 13011-97401 |
K3VE..S221,231 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-97401 |
K3VE..S221,231 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-97401 |
K3VE..S221,231 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-97401 |
K3VE..S221,231 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-97401 |
K3VE..S221,231 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-97401 |
K3VE..S221,231 STD 櫻興業 |
4 | ||
| 13103-97401 |
K3VE..S221,231 O/S 0.50 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-97401 |
K3VE..S221,231 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-97401 |
K3VE..S221,231 U/S 0.25 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-97401 |
K3VE..S221,231 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-97402 |
K3VE..S221,231..5MT |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-97401 |
K3VE..S221,231 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-87104 |
K3VE..S221,231..5MT |
1 | ||
| 13457 - RING, FLYWHEEL SPACER | ||||
| 13457-97401 |
K3VE..S221,231..5MT |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-97402 |
K3VE..S221,231 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90041-05255 |
K3VE..S221,231 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-97501 |
K3VE..S221,231 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-97401 |
K3VE..S221,231 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90042-80034 |
K3VE..S221,231 |
1 | ||
| 19315A - ROTOR, CRANK POSITION SENSOR | ||||
| 19315-97401 |
K3VE..S221,231 |
1 | ||
| Common parts | ||||
| 90042-50196 | ||||
| 90048-01037 | ||||
| 91511-B0812 | ||||
