S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

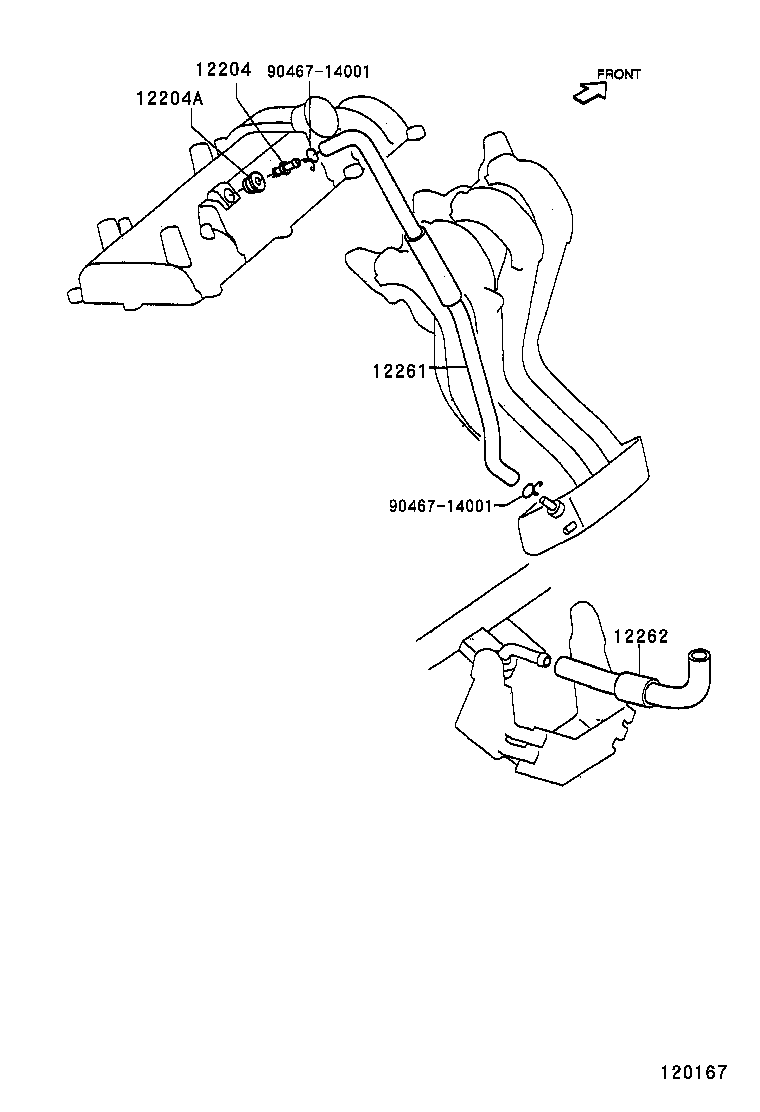

Click highlighted areas on diagram

diagram 12204 12204A 12261 12262 9046714001 9046714001
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-97401

K3VE..S221,231

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

K3VE..S221,231

 1
12261 - HOSE, VENTILATION
12261-97401

K3VE..S221,231

 1
12262 - HOSE, VENTILATION, NO.2
12262-97402

K3VE..S221,231

 1
Common parts
90467-14001
