S221E-ZMRF (2000)

Toyota Sparky

Production Sep 2000 - Mar 2003
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

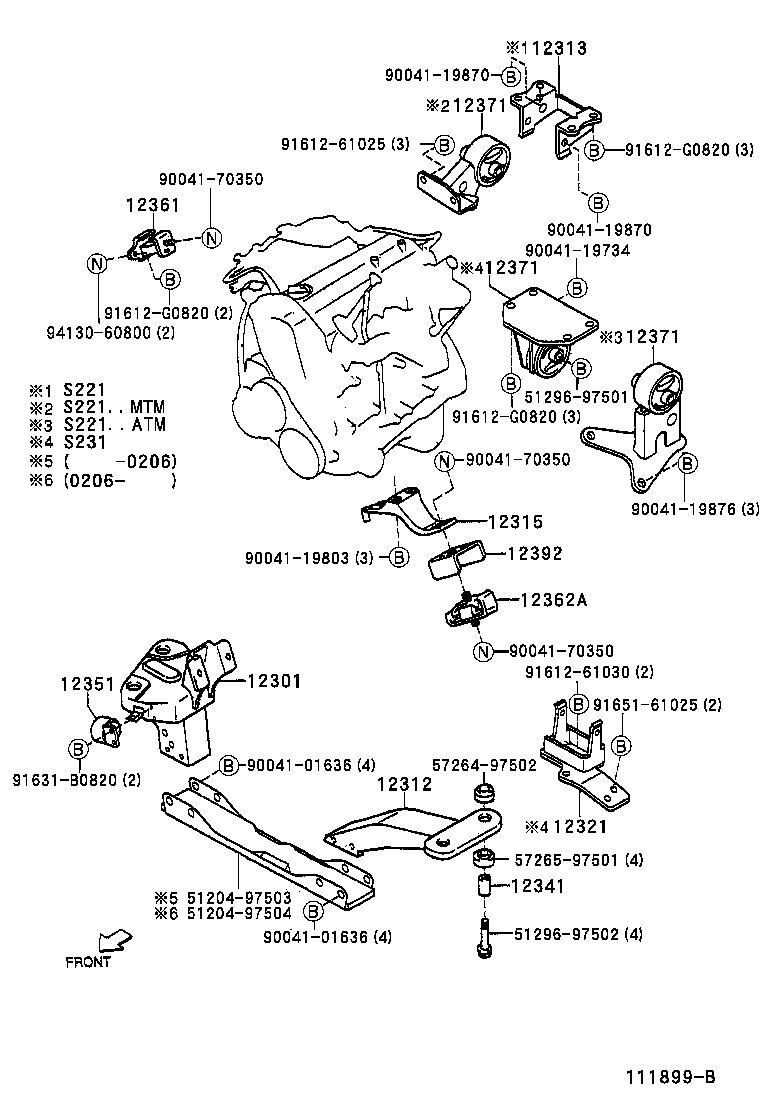

Click highlighted areas on diagram

diagram 12301 12312 12313 12315 12321 12341 12351 12361 12362A 12371 12371 12371 12392 5120497503 5120497504 5129697501 5129697502 5726497502 5726597501 9004101636 9004101636 9004119734 9004119803 9004119870 9004119870 9004119876 9004170350 9004170350 9004170350 9161261025 9161261030 91612G0820 91612G0820 91612G0820 91631B0820 9165161025 9413060800
Part # Description Qty Price
12301 - BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH
12301-97504

K3VE..S221,231

 1
12312 - BRACKET, ENGINE MOUNTING, FRONT NO.2
12302-97501

K3VE..S221,231

 1
12302-97503

K3VE..S221,231

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-97501

K3VE..S221

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-97506

K3VE..S221,231

 1
12315-97505

K3VE..S221,231

 1
12315-97507

K3VE..S221

 1
12341 - SPACER, ENGINE MOUNTING
12341-87501

K3VE..S221,231

 4
12351 - DAMPER, ENGINE MOUNTING
12351-97501

K3VE..S221,231

 1
12351-97502

K3VE..S221,231

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-97502

K3VE..S221,231

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-97504

K3VE..S221,231

 1
12362-97503

K3VE..S221,231

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12306-97504

K3VE..S221..5MT

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12306-97504

K3VE..S221..5MT

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12306-97504

K3VE..S221..5MT

 1
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12392-97501

K3VE..S221,231

 1
Common parts
51204-97503
51204-97504
51296-97501
51296-97502
57264-97502
57265-97501
90041-01636
90041-19734
90041-19803
90041-19870
90041-19876
90041-70350
91612-61025
91612-61030
91612-G0820
91631-B0820
91651-61025
94130-60800
