S221E-ZMRF (2000)
Toyota Sparky
Production
Sep 2000
-
Mar 2003
Engine
K3VE
Transmission
5MT MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0009- )

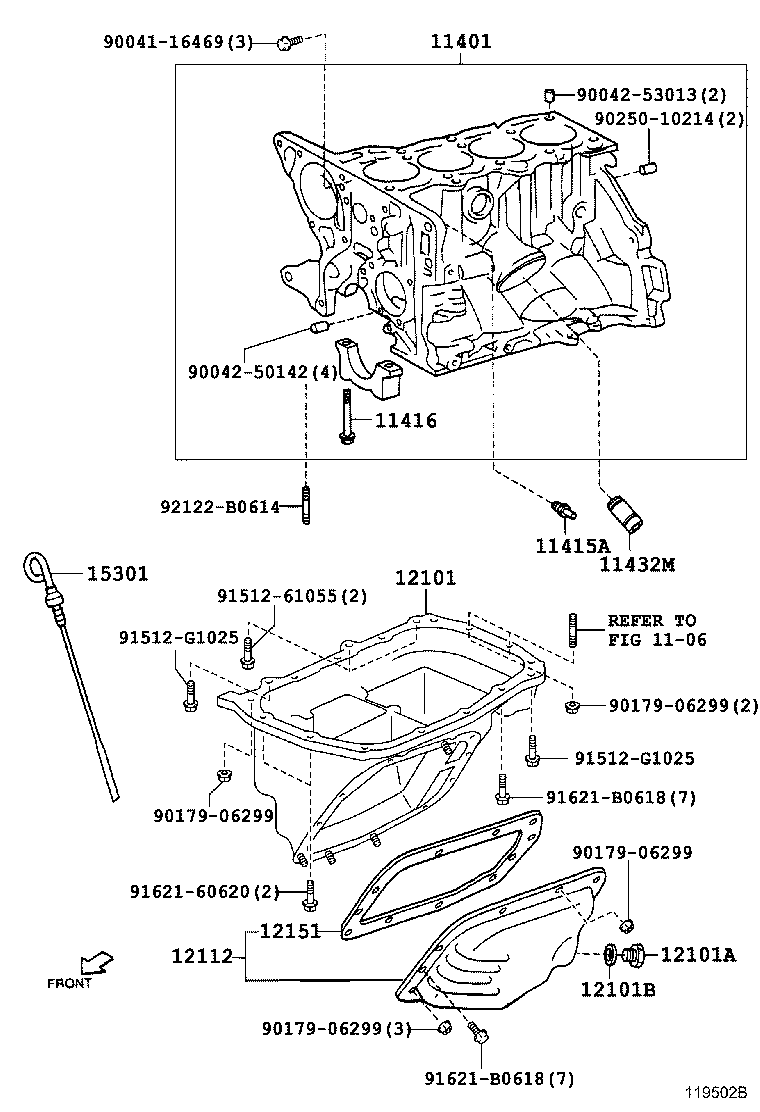

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-97406 |
K3VE..S221,231 |
1 | ||
| 11401-97403 |
K3VE..S221,231 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90048-08005 |
K3VE..S221,231 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90041-05271 |
K3VE..S221,231 |
10 | ||
| 11432M - UNION(FOR CYLINDER BLOCK) | ||||
| 90404-19013 |
K3VE..S221,231 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-97402 |
K3VE..S221,231 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90043-41041 |
K3VE..S221,231 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90044-30281 |
K3VE..S221,231 |
1 | ||
| 12112 - PAN, OIL NO.2 | ||||
| 12101-97405 |
K3VE..S221,231 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-97401 |
K3VE..S221,231 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-97502 |
K3VE..S221,231 |
1 | ||
| Common parts | ||||
| 90041-16469 | ||||
| 90042-50142 | ||||
| 90042-53013 | ||||
| 90179-06299 | ||||
| 90250-10214 | ||||
| 91512-61055 | ||||
| 91512-G1025 | ||||
| 91621-60620 | ||||
| 91621-B0618 | ||||
| 92122-B0614 | ||||
| Linked diagrams | ||||
| 1106 | ||||
