S221E-ZMDF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

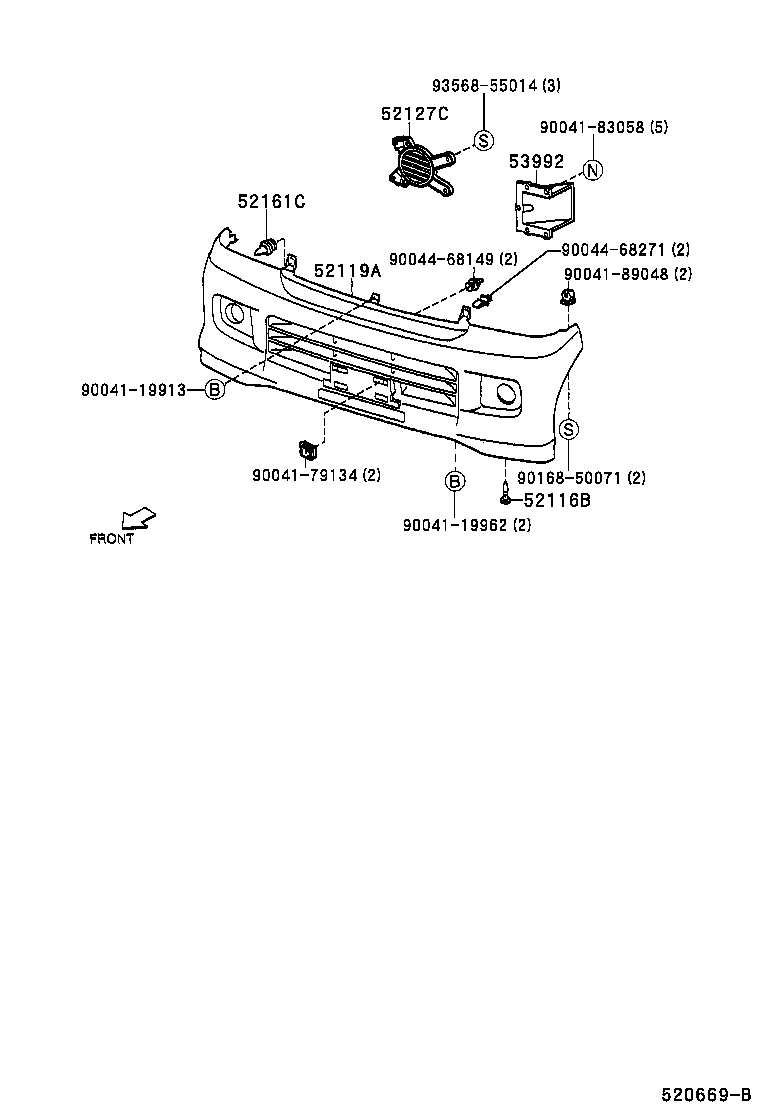

Click highlighted areas on diagram

diagram 52116B 52119A 52127C 52161C 53992 9004119913 9004119962 9004179134 9004183058 9004189048 9004468149 9004468271 9016850071 9356855014
Part # Description Qty Price
52116B - RETAINER, FRONT BUMPER
90044-6720401

S221,231

BLACK

 2
52119A - COVER, FRONT BUMPER
52119-9751608

S221,231

WHITE,056

 1
52119-9751604

S221,231

DARK BLUE MC M.,B42

 1
52119-9751602

S221,231

RED MC,3K3

 1
52119-9751603

S221,231

SILVER M.,1C0

 1
52119-9751618

S221,231

WHITE PM.,W16

 1
52119-9751601

S221,231

BLACK M.,6A5

 1
52119-9751609

S221,231

SHAMPGNE ME.,583

 1
52161C - PIECE, FRONT BUMPER
90044-67419

S221,231

 2
53992 - GUIDE, COOL AIR
53992-97502

S221,231

 1
Common parts
90041-19913
90041-19962
90041-79134
90041-83058
90041-89048
90044-68149
90044-68271
90168-50071
93568-55014
