S221E-ZMDF (2000)

Toyota Sparky

Production Sep 2000 - Jun 2002
Engine K3VE
Transmission 5MT MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0009- )

Click highlighted areas on diagram

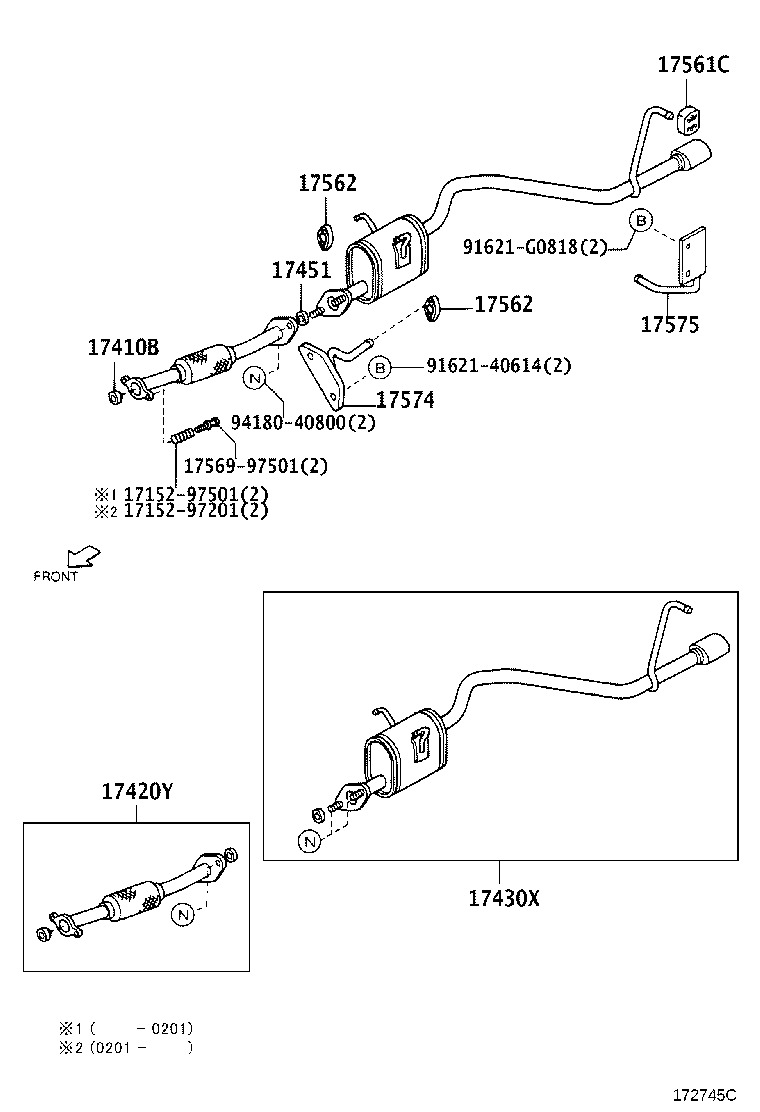

TYPE A

diagram 1715297201 1715297501 17410B 17420Y 17430X 17451 17561C 17562 17562 1756997501 17574 17575 9162140614 91621G0818 9418040800
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
17451-97501

K3VE..S221,231

 1
17420Y - PIPE SET, EXHAUST, FRONT
17420-B9500

K3VE..S221,231

 1
17420-B9500

K3VE..S221,231

 1
17430X - PIPE SET, EXHAUST TAIL
17430-B9500

K3VE..S221,231

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17430-B9520

K3VE..S221,231..G

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17451 - GASKET, EXHAUST PIPE
17451-87512

K3VE..S221,231

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17567-87706

K3VE..S221,231

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-97502

K3VE..S221,231

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-97502

K3VE..S221,231

 2
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-97502

K3VE..S221,231

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-97503

K3VE..S221,231..G

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17575-97502

K3VE..S221,231

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
17152-97201
17152-97501
17569-97501
91621-40614
91621-G0818
94180-40800

(0009- )

Click highlighted areas on diagram

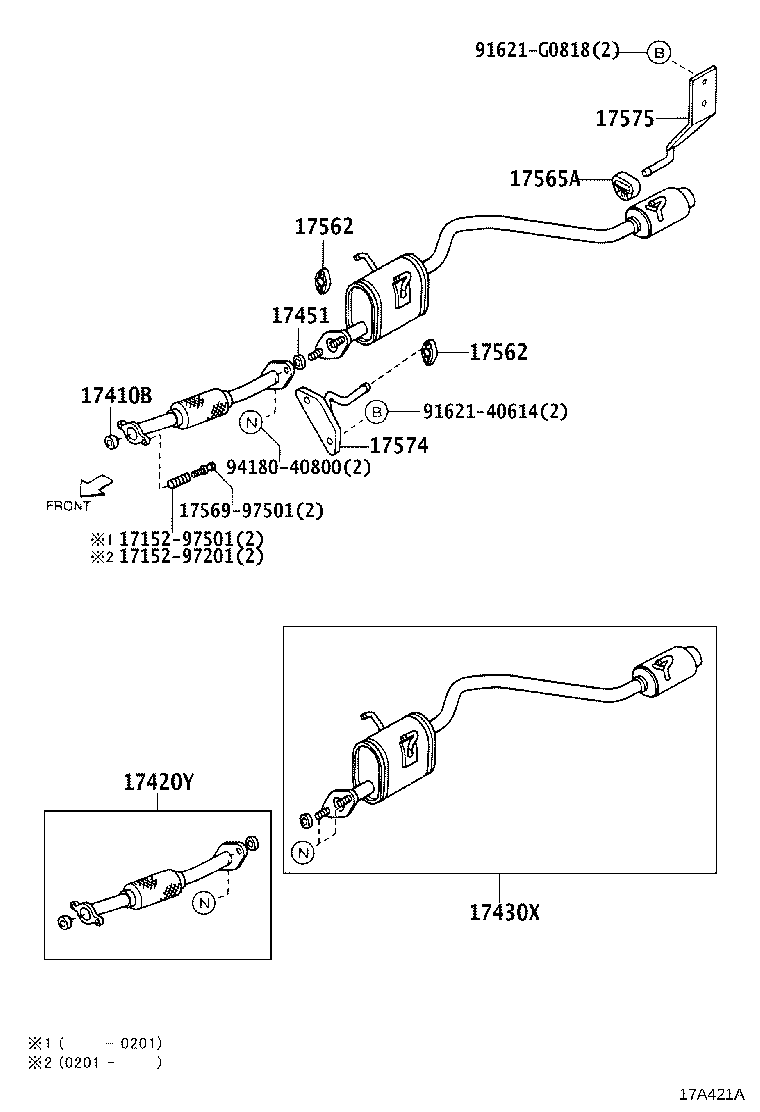

TYPE B

diagram 1715297201 1715297501 17410B 17420Y 17430X 17451 17562 17562 17565A 1756997501 17574 17575 9162140614 91621G0818 9418040800
Part # Description Qty Price
17410B - GASKET, EXHAUST PIPE
17451-97501

K3VE..S221,231

 1
17420Y - PIPE SET, EXHAUST, FRONT
17420-B9500

K3VE..S221,231

 1
17420-B9500

K3VE..S221,231

 1
17430X - PIPE SET, EXHAUST TAIL
17430-B9500

K3VE..S221,231

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17430-B9520

K3VE..S221,231..G

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17451 - GASKET, EXHAUST PIPE
17451-87512

K3VE..S221,231

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-97502

K3VE..S221,231

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-97502

K3VE..S221,231

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17566-35030

K3VE..S221,231..G

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-97502

K3VE..S221,231

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-97503

K3VE..S221,231..G

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
17575-97502

K3VE..S221,231

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
17152-97201
17152-97501
17569-97501
91621-40614
91621-G0818
94180-40800
