S221E-SQRF (2002)
Toyota Sparky

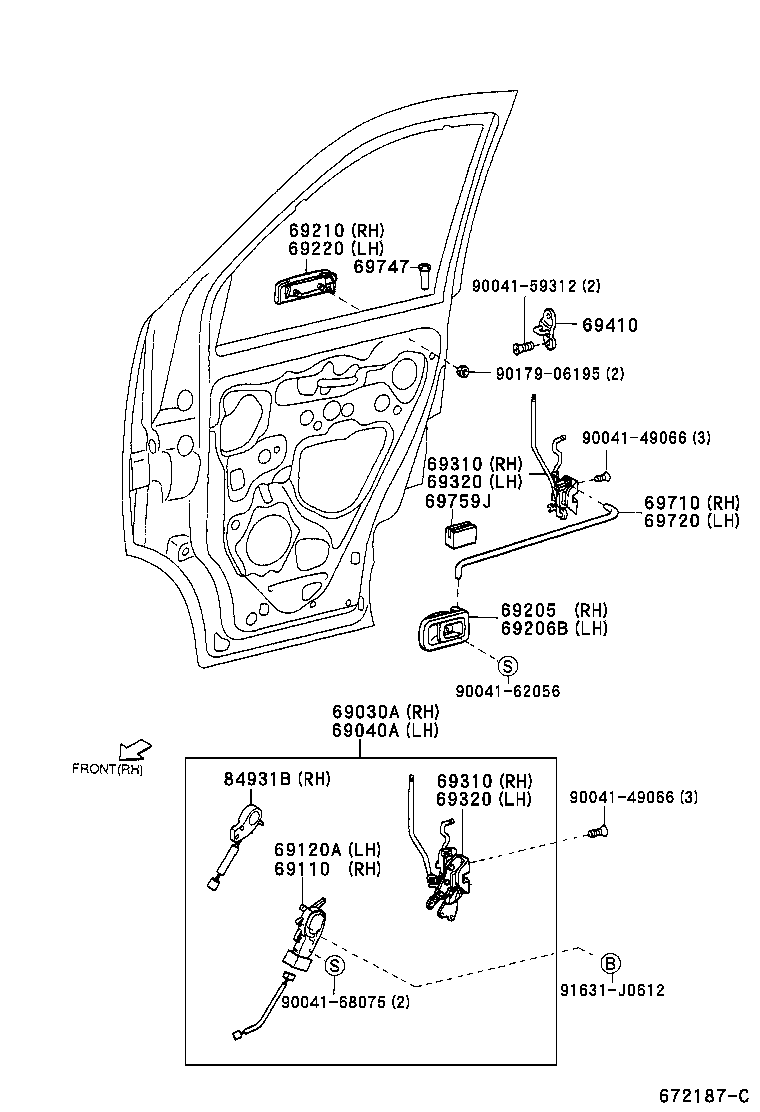

(0009-0210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-97506 |
S221,231 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-97505 |
S221,231 |
1 | ||
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-97501 |
S221,231 ﾊｰﾈｽﾀﾝｼ:4P |
1 | ||
| 69110-97502 |
S221,231 ﾊｰﾈｽﾀﾝｼ:5P |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-97503 |
S221,231 ﾊｰﾈｽﾀﾝｼ:2P |
1 | ||
| 69120-97501 |
S221,231 ﾊｰﾈｽﾀﾝｼ:4P |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69270-8770763 |
S221,231 GRAY |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69280-8770763 |
S221,231 GRAY |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-8770913 |
S221,231 SILVER M.,1C0 |
1 | ||
| 69210-8770912 |
S221,231 RED MC,3K3 |
1 | ||
| 69210-8770914 |
S221,231 DARK BLUE M.M.,B42 |
1 | ||
| 69210-8770918 |
S221,231 WHITE,056 |
1 | ||
| 69210-8770928 |
S221,231 WHITE PEARL,W16 |
1 | ||
| 69210-8770901 |
S221,231 BLACK M.,6A5 |
1 | ||
| 69210-8770923 |
S221,231 GREENISH SOL. M.,S29 |
1 | ||
| 69210-87215 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-8770912 |
S221,231 RED MC,3K3 |
1 | ||
| 69220-8770918 |
S221,231 WHITE,056 |
1 | ||
| 69220-87215 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69220-8770928 |
S221,231 WHITE PEARL,W16 |
1 | ||
| 69220-8770913 |
S221,231 SILVER M.,1C0 |
1 | ||
| 69220-8770914 |
S221,231 DARK BLUE M.M.,B42 |
1 | ||
| 69220-8770901 |
S221,231 BLACK M.,6A5 |
1 | ||
| 69220-8770923 |
S221,231 GREENISH SIL. M.,S29 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-97506 |
S221,231 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-97506 |
S221,231 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-97506 |
S221,231 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-97506 |
S221,231 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-97501 |
S221,231 |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-97501 |
S221,231 |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-97501 |
S221,231 |
1 | ||
| 69747 - BUTTON, DOOR LOCKING | ||||
| 69747-87208 |
S221,231 |
2 | ||
| 69759J - SILENCER, DOOR LOCK LINK | ||||
| 69759-87207 |
S221,231 |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-97501 |
S221,231 |
1 | ||
| Common parts | ||||
| 90041-49066 | ||||
| 90041-59312 | ||||
| 90041-62056 | ||||
| 90041-68075 | ||||
| 90179-06195 | ||||
| 91631-J0612 | ||||

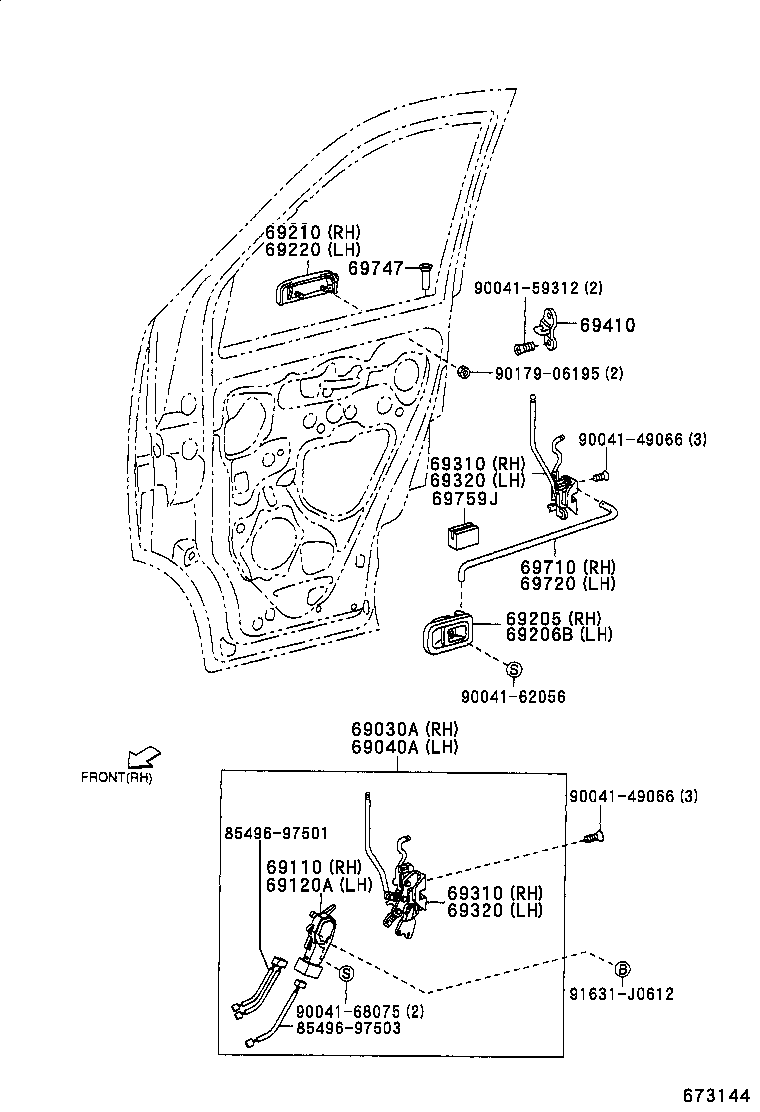

(0210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-97506 |
S221,231 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-97505 |
S221,231 |
1 | ||
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-97501 |
S221,231 ﾊｰﾈｽﾀﾝｼ:4P |
1 | ||
| 69110-97502 |
S221,231 ﾊｰﾈｽﾀﾝｼ:5P |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-97503 |
S221,231 ﾊｰﾈｽﾀﾝｼ:2P |
1 | ||
| 69120-97501 |
S221,231 ﾊｰﾈｽﾀﾝｼ:4P |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69270-8770763 |
S221,231 GRAY |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69280-8770763 |
S221,231 GRAY |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-8770913 |
S221,231 SILVER M.,1C0 |
1 | ||
| 69210-8770912 |
S221,231 RED MC,3K3 |
1 | ||
| 69210-8770914 |
S221,231 DARK BLUE M.M.,B42 |
1 | ||
| 69210-8770918 |
S221,231 WHITE,056 |
1 | ||
| 69210-8770928 |
S221,231 WHITE PEARL,W16 |
1 | ||
| 69210-8770901 |
S221,231 BLACK M.,6A5 |
1 | ||
| 69210-8770923 |
S221,231 GREENISH SOL. M.,S29 |
1 | ||
| 69210-87215 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-8770912 |
S221,231 RED MC,3K3 |
1 | ||
| 69220-8770918 |
S221,231 WHITE,056 |
1 | ||
| 69220-87215 |
S221,231..X Jﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69220-8770928 |
S221,231 WHITE PEARL,W16 |
1 | ||
| 69220-8770913 |
S221,231 SILVER M.,1C0 |
1 | ||
| 69220-8770914 |
S221,231 DARK BLUE M.M.,B42 |
1 | ||
| 69220-8770901 |
S221,231 BLACK M.,6A5 |
1 | ||
| 69220-8770923 |
S221,231 GREENISH SIL. M.,S29 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-97506 |
S221,231 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-97506 |
S221,231 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-97506 |
S221,231 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-97506 |
S221,231 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-97501 |
S221,231 |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-97501 |
S221,231 |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-97501 |
S221,231 |
1 | ||
| 69747 - BUTTON, DOOR LOCKING | ||||
| 69747-87208 |
S221,231 |
2 | ||
| 69759J - SILENCER, DOOR LOCK LINK | ||||
| 69759-87207 |
S221,231 |
2 | ||
| Common parts | ||||
| 85496-97501 | ||||
| 85496-97503 | ||||
| 90041-49066 | ||||
| 90041-59312 | ||||
| 90041-62056 | ||||
| 90041-68075 | ||||
| 90179-06195 | ||||
| 91631-J0612 | ||||
