S221E-SQRF (2002)
Toyota Sparky
Production
Jun 2002
-
Mar 2003
Engine
K3VE
Transmission
4ATS ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0206- )

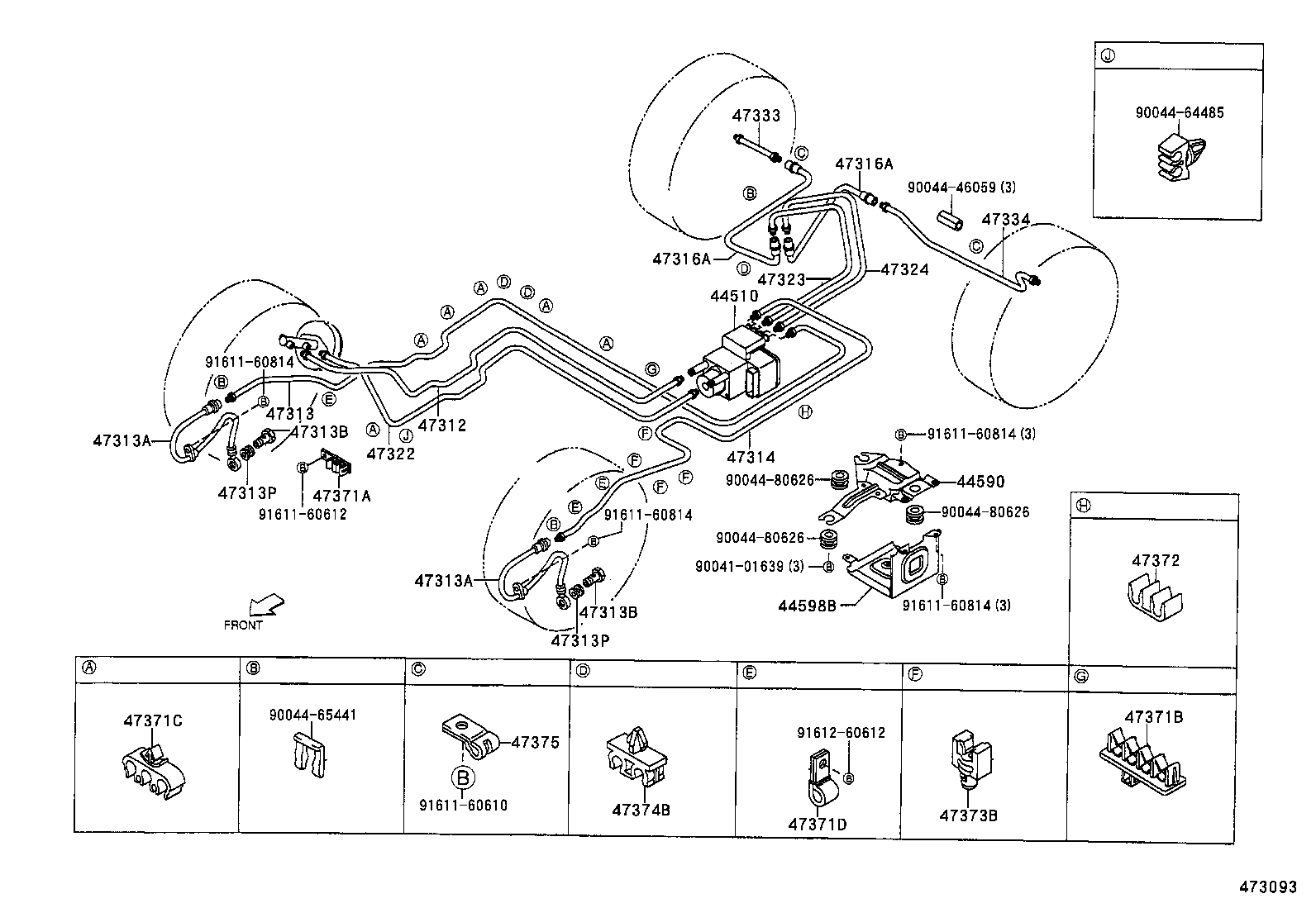

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-97509 |
S221 |
1 | ||
| 44050-97514 |
S221 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-97503 |
S221,231 |
1 | ||
| 44598B - COVER, BRAKE ACTUATOR | ||||
| 44511-97503 |
S221,231 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-97507 |
S221,231 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-97511 |
S221,231 |
1 | ||
| 47313-97508 |
S221,231 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22182 |
S221,231 |
2 | ||
| 90049-22190 |
S221,231 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22182 |
S221,231 |
2 | ||
| 90049-22190 |
S221,231 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90044-01079 |
S221,231 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90044-01079 |
S221,231 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-97201 |
S221,231 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-97201 |
S221,231 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-97504 |
S221,231 |
1 | ||
| 47314-97507 |
S221,231 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90049-22180 |
S221,231 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90049-22180 |
S221,231 |
2 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-97506 |
S221,231 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-97509 |
S221,231 |
1 | ||
| 47323-97505 |
S221,231 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-97505 |
S221,231 |
1 | ||
| 47324-97502 |
S221,231 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47333-97506 |
S221,231 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47334-97506 |
S221,231 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90044-64424 |
S221,231 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90044-64590 |
S221,231 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 96221-10706 |
S221,231 |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90044-64731 |
S221,231 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90044-64348 |
S221,231 |
4 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90044-64622 |
S221,231 |
4 | ||
| 90044-64622 |
S221,231 |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 96221-30705 |
S221,231 |
2 | ||
| Common parts | ||||
| 90041-01639 | ||||
| 90044-46059 | ||||
| 90044-64485 | ||||
| 90044-65441 | ||||
| 90044-80626 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91612-60612 | ||||
