UZZ32-ACPZK (1991)

Toyota Soarer

Production May 1991 - Aug 1996
Engine 1UZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )

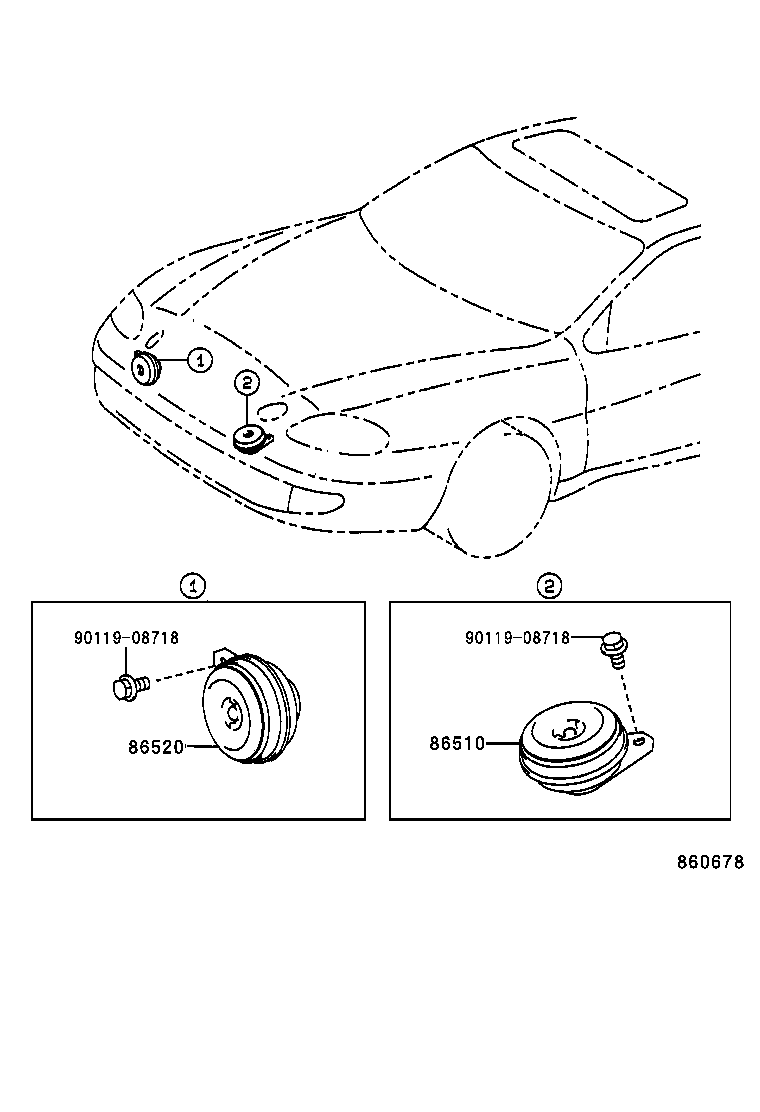

Click highlighted areas on diagram

diagram 86510 86520 9011908718 9011908718
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-24050

JZZ30,UZZ3#

 1
86510-17090

JZZ3#,UZZ3#

 1
86520 - HORN ASSY, LOW PITCHED
86520-24010

JZZ3#,UZZ3#

 1
Common parts
90119-08718
