UZZ32-ACPZK (1991)

Toyota Soarer

Production May 1991 - Aug 1996
Engine 1UZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )

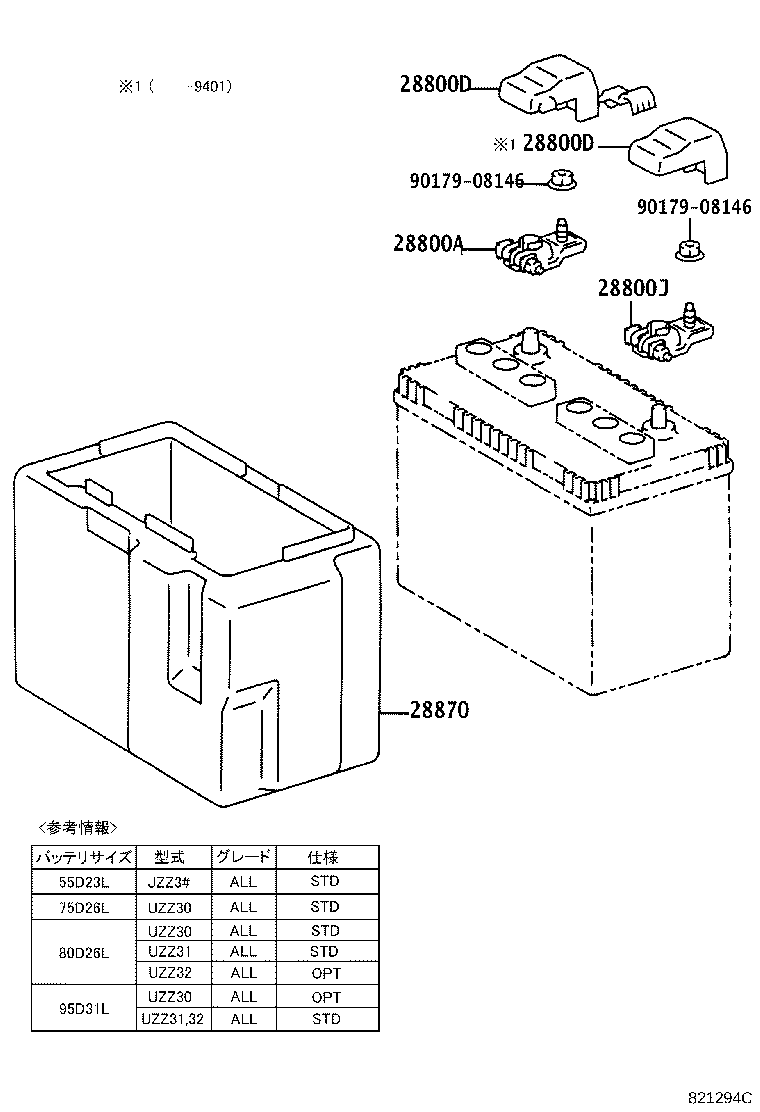

Click highlighted areas on diagram

diagram 28800A 28800D 28800D 28800J 28870 9017908146 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05037

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
90982-05030

1JZGTE,1UZFE..JZZ30,UZZ3#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24060

1UZFE..UZZ3#

(+)ﾀ-ﾐﾅﾙ

 1
82821-24070

1JZGTE,1UZFE..JZZ30,UZZ3#

(-)ﾀ-ﾐﾅﾙ

 1
82821-50050

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24060

1UZFE..UZZ3#

(+)ﾀ-ﾐﾅﾙ

 1
82821-24070

1JZGTE,1UZFE..JZZ30,UZZ3#

(-)ﾀ-ﾐﾅﾙ

 1
82821-50050

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06022

1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3#

 1
28870 - INSULATOR ASSY, BATTERY
28870-50030

1UZFE..UZZ3#

ｶﾝﾚｲﾁ ｼﾖｳ,ﾊﾞﾂﾃﾘ=80D26L OR 95D31L

 1
28870-50030

1UZFE..UZZ32

 1
Common parts
90179-08146
