UZZ32-ACPZK (1991)
Toyota Soarer
Production
May 1991
-
Aug 1996
Engine
1UZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

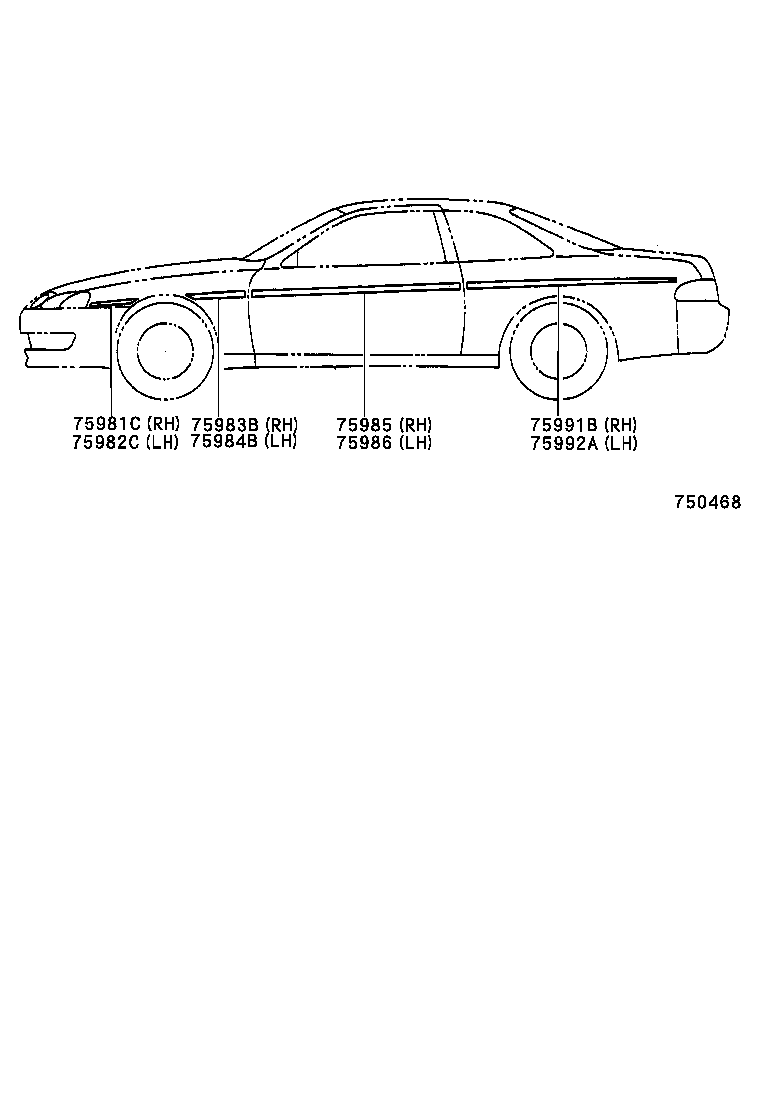

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75981C - STRIPE, FRONT FENDER, FRONT RH | ||||
| 75981-24020G0 |
JZZ3#,UZZ3# GOLD,202 ,3L4 ,6M2 ,8J5 |
1 | ||
| 75981-24020B0 |
JZZ3#,UZZ3# BROWN,051 ,1A0 ,3L2 |
1 | ||
| 75982C - STRIPE, FRONT FENDER, FRONT LH | ||||
| 75982-24020B0 |
JZZ3#,UZZ3# BROWN,051 ,1A0 ,3L2 |
1 | ||
| 75982-24020G0 |
JZZ3#,UZZ3# GOLD,202 ,3L4 ,6M2 ,8J5 |
1 | ||
| 75983B - STRIPE, FRONT FENDER, REAR RH | ||||
| 75983-24040B0 |
JZZ3#,UZZ3# BROWN,051 ,1A0 ,3L2 |
1 | ||
| 75983-24040G0 |
JZZ3#,UZZ3# GOLD,202 ,3L4 ,6M2 ,8J5 |
1 | ||
| 75984B - STRIPE, FRONT FENDER, REAR LH | ||||
| 75984-24040B0 |
JZZ3#,UZZ3# BROWN,051 ,1A0 ,3L2 |
1 | ||
| 75984-24040G0 |
JZZ3#,UZZ3# GOLD,202 ,3L4 ,6M2 ,8J5 |
1 | ||
| 75985 - STRIPE, FRONT DOOR, RH | ||||
| 75985-24100B0 |
JZZ3#,UZZ3# BROWN,051 ,1A0 ,3L2 |
1 | ||
| 75985-24100G0 |
JZZ3#,UZZ3# GOLD,202 ,3L4 ,6M2 ,8J5 |
1 | ||
| 75986 - STRIPE, FRONT DOOR, LH | ||||
| 75986-24040G0 |
JZZ3#,UZZ3# GOLD,202 ,3L4 ,6M2 ,8J5 |
1 | ||
| 75986-24040B0 |
JZZ3#,UZZ3# BROWN,051 ,1A0 ,3L2 |
1 | ||
| 75991B - STRIPE, QUARTER, RH | ||||
| 75991-24030G0 |
JZZ3#,UZZ3# GOLD,202 ,3L4 ,6M2 ,8J5 |
1 | ||
| 75991-24030B0 |
JZZ3#,UZZ3# BROWN,051 ,1A0 ,3L2 |
1 | ||
| 75992A - STRIPE, QUARTER, LH | ||||
| 75992-24030G0 |
JZZ3#,UZZ3# GOLD,202 ,3L4 ,6M2 ,8J5 |
1 | ||
| 75992-24030B0 |
JZZ3#,UZZ3# BROWN,051 ,1A0 ,3L2 |
1 | ||
