UZZ32-ACPZK (1991)
Toyota Soarer
Production
May 1991
-
Aug 1996
Engine
1UZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9105-9608)1UZFE..UZZ32

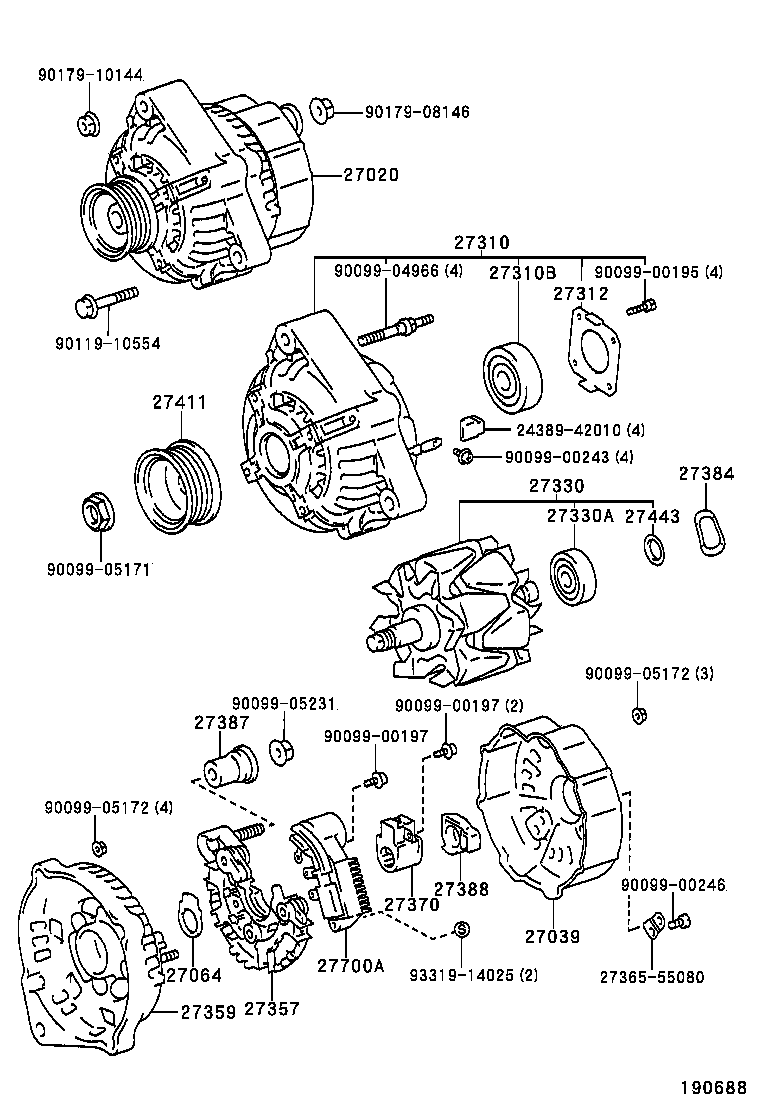

Click highlighted areas on diagram
12V 120A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-50150 |
1UZFE..UZZ32 12V 100A |
1 | ||
| 27060-50050 |
1UZFE..UZZ32 12V 120A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-74420 |
1UZFE..UZZ32 |
1 | ||
| 27039-50070 |
1UZFE..UZZ32 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-50070 |
1UZFE..UZZ32 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-50070 |
1UZFE..UZZ32 |
1 | ||
| 27330-50070 |
1UZFE..UZZ3# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10194 |
1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-50070 |
1UZFE..UZZ32 |
1 | ||
| 27357-74300 |
1UZFE..UZZ32 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-50070 |
1UZFE..UZZ32 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-50070 |
1UZFE..UZZ32 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1JZGTE,1UZFE..JZZ30,UZZ3#..ATM |
1 | ||
| 27388-42010 |
1JZGTE,1UZFE..JZZ30,UZZ3# |
1 | ||
| 27388-42010 |
1UZFE..UZZ3# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50030 |
1UZFE..UZZ3# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1JZGTE,2JZGE,1UZFE..JZZ3#,UZZ3# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-46040 |
1UZFE..UZZ3# |
1 | ||
| Common parts | ||||
| 24389-42010 | ||||
| 27365-55080 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90119-10554 | ||||
| 90179-08146 | ||||
| 90179-10144 | ||||
| 93319-14025 | ||||
