UZZ32-ACPZK (1991)
Toyota Soarer
(9105- )1UZFE

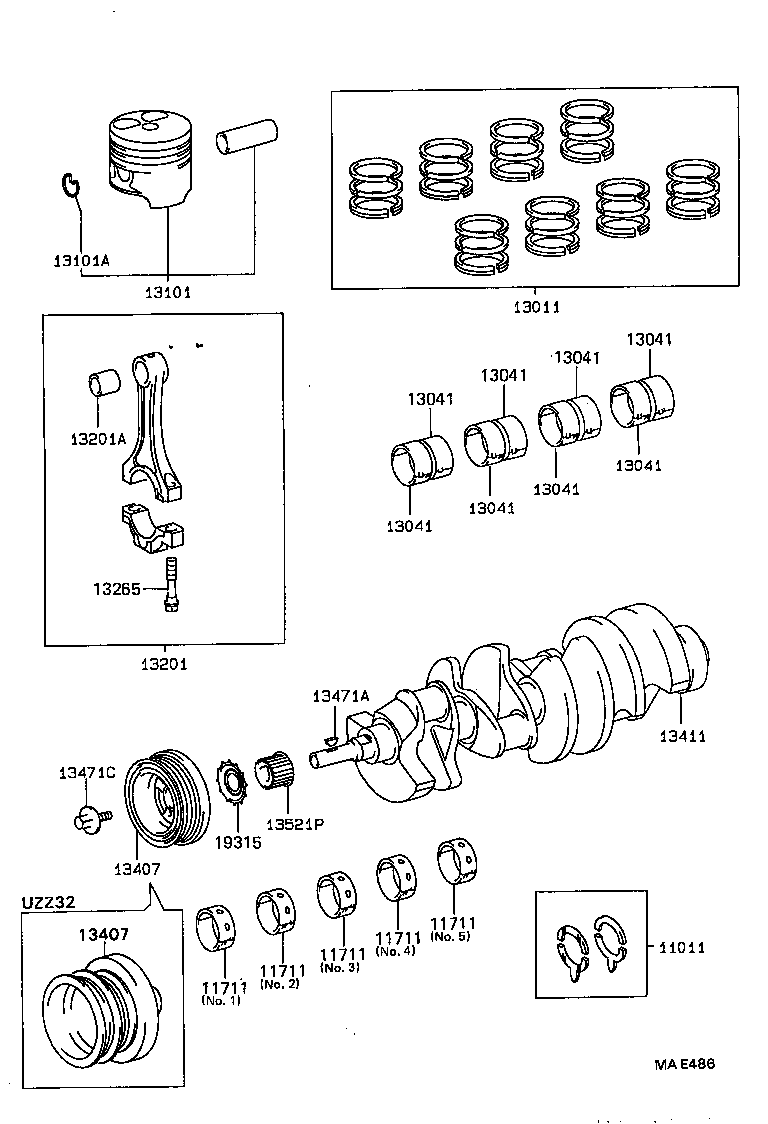

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-50010 |
1UZFE..UZZ3# STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5001001 |
1UZFE..UZZ3# MARK 1,NO.1,5 |
2 | ||
| 11701-5001004 |
1UZFE..UZZ3# MARK 4,NO.1,5 |
2 | ||
| 11701-5001002 |
1UZFE..UZZ3# MARK 2,NO.1,5 |
2 | ||
| 11701-5001003 |
1UZFE..UZZ3# MARK 3,NO.1,5 |
2 | ||
| 11701-5001005 |
1UZFE..UZZ3# MARK 5,NO.1,5 |
2 | ||
| 11071-5001001 |
1UZFE..UZZ3# MARK 1,NO.2,3,4 |
3 | ||
| 11071-5001003 |
1UZFE..UZZ3# MARK 3,NO.2,3,4 |
3 | ||
| 11071-5001005 |
1UZFE..UZZ3# MARK 5,NO.2,3,4 |
3 | ||
| 11071-5001004 |
1UZFE..UZZ3# MARK 4,NO.2,3,4 |
3 | ||
| 11071-5001002 |
1UZFE..UZZ3# MARK 2,NO.2,3,4 |
3 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5001001 |
1UZFE..UZZ3# MARK 1,NO.1,5 |
2 | ||
| 11701-5001004 |
1UZFE..UZZ3# MARK 4,NO.1,5 |
2 | ||
| 11701-5001002 |
1UZFE..UZZ3# MARK 2,NO.1,5 |
2 | ||
| 11701-5001003 |
1UZFE..UZZ3# MARK 3,NO.1,5 |
2 | ||
| 11701-5001005 |
1UZFE..UZZ3# MARK 5,NO.1,5 |
2 | ||
| 11071-5001001 |
1UZFE..UZZ3# MARK 1,NO.2,3,4 |
3 | ||
| 11071-5001003 |
1UZFE..UZZ3# MARK 3,NO.2,3,4 |
3 | ||
| 11071-5001005 |
1UZFE..UZZ3# MARK 5,NO.2,3,4 |
3 | ||
| 11071-5001004 |
1UZFE..UZZ3# MARK 4,NO.2,3,4 |
3 | ||
| 11071-5001002 |
1UZFE..UZZ3# MARK 2,NO.2,3,4 |
3 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5001001 |
1UZFE..UZZ3# MARK 1,NO.1,5 |
2 | ||
| 11701-5001004 |
1UZFE..UZZ3# MARK 4,NO.1,5 |
2 | ||
| 11701-5001002 |
1UZFE..UZZ3# MARK 2,NO.1,5 |
2 | ||
| 11701-5001003 |
1UZFE..UZZ3# MARK 3,NO.1,5 |
2 | ||
| 11701-5001005 |
1UZFE..UZZ3# MARK 5,NO.1,5 |
2 | ||
| 11071-5001001 |
1UZFE..UZZ3# MARK 1,NO.2,3,4 |
3 | ||
| 11071-5001003 |
1UZFE..UZZ3# MARK 3,NO.2,3,4 |
3 | ||
| 11071-5001005 |
1UZFE..UZZ3# MARK 5,NO.2,3,4 |
3 | ||
| 11071-5001004 |
1UZFE..UZZ3# MARK 4,NO.2,3,4 |
3 | ||
| 11071-5001002 |
1UZFE..UZZ3# MARK 2,NO.2,3,4 |
3 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5001001 |
1UZFE..UZZ3# MARK 1,NO.1,5 |
2 | ||
| 11701-5001004 |
1UZFE..UZZ3# MARK 4,NO.1,5 |
2 | ||
| 11701-5001002 |
1UZFE..UZZ3# MARK 2,NO.1,5 |
2 | ||
| 11701-5001003 |
1UZFE..UZZ3# MARK 3,NO.1,5 |
2 | ||
| 11701-5001005 |
1UZFE..UZZ3# MARK 5,NO.1,5 |
2 | ||
| 11071-5001001 |
1UZFE..UZZ3# MARK 1,NO.2,3,4 |
3 | ||
| 11071-5001003 |
1UZFE..UZZ3# MARK 3,NO.2,3,4 |
3 | ||
| 11071-5001005 |
1UZFE..UZZ3# MARK 5,NO.2,3,4 |
3 | ||
| 11071-5001004 |
1UZFE..UZZ3# MARK 4,NO.2,3,4 |
3 | ||
| 11071-5001002 |
1UZFE..UZZ3# MARK 2,NO.2,3,4 |
3 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5001001 |
1UZFE..UZZ3# MARK 1,NO.1,5 |
2 | ||
| 11701-5001004 |
1UZFE..UZZ3# MARK 4,NO.1,5 |
2 | ||
| 11701-5001002 |
1UZFE..UZZ3# MARK 2,NO.1,5 |
2 | ||
| 11701-5001003 |
1UZFE..UZZ3# MARK 3,NO.1,5 |
2 | ||
| 11701-5001005 |
1UZFE..UZZ3# MARK 5,NO.1,5 |
2 | ||
| 11071-5001001 |
1UZFE..UZZ3# MARK 1,NO.2,3,4 |
3 | ||
| 11071-5001003 |
1UZFE..UZZ3# MARK 3,NO.2,3,4 |
3 | ||
| 11071-5001005 |
1UZFE..UZZ3# MARK 5,NO.2,3,4 |
3 | ||
| 11071-5001004 |
1UZFE..UZZ3# MARK 4,NO.2,3,4 |
3 | ||
| 11071-5001002 |
1UZFE..UZZ3# MARK 2,NO.2,3,4 |
3 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-50040 |
1UZFE..UZZ3# STD |
1 | ||
| 13011-50080 |
1UZFE..UZZ3# STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5002002 |
1UZFE..UZZ3# MARK 2 |
8 | ||
| 13041-5002005 |
1UZFE..UZZ3# MARK 5 |
8 | ||
| 13041-5002004 |
1UZFE..UZZ3# MARK 4 |
8 | ||
| 13041-5002007 |
1UZFE..UZZ3# MARK 7 |
8 | ||
| 13041-5002003 |
1UZFE..UZZ3# MARK 3 |
8 | ||
| 13041-5002006 |
1UZFE..UZZ3# MARK 6 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5002004 |
1UZFE..UZZ3# MARK 4 |
8 | ||
| 13041-5002002 |
1UZFE..UZZ3# MARK 2 |
8 | ||
| 13041-5002005 |
1UZFE..UZZ3# MARK 5 |
8 | ||
| 13041-5002007 |
1UZFE..UZZ3# MARK 7 |
8 | ||
| 13041-5002003 |
1UZFE..UZZ3# MARK 3 |
8 | ||
| 13041-5002006 |
1UZFE..UZZ3# MARK 6 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5002002 |
1UZFE..UZZ3# MARK 2 |
8 | ||
| 13041-5002005 |
1UZFE..UZZ3# MARK 5 |
8 | ||
| 13041-5002004 |
1UZFE..UZZ3# MARK 4 |
8 | ||
| 13041-5002007 |
1UZFE..UZZ3# MARK 7 |
8 | ||
| 13041-5002003 |
1UZFE..UZZ3# MARK 3 |
8 | ||
| 13041-5002006 |
1UZFE..UZZ3# MARK 6 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5002002 |
1UZFE..UZZ3# MARK 2 |
8 | ||
| 13041-5002005 |
1UZFE..UZZ3# MARK 5 |
8 | ||
| 13041-5002004 |
1UZFE..UZZ3# MARK 4 |
8 | ||
| 13041-5002007 |
1UZFE..UZZ3# MARK 7 |
8 | ||
| 13041-5002003 |
1UZFE..UZZ3# MARK 3 |
8 | ||
| 13041-5002006 |
1UZFE..UZZ3# MARK 6 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5002002 |
1UZFE..UZZ3# MARK 2 |
8 | ||
| 13041-5002005 |
1UZFE..UZZ3# MARK 5 |
8 | ||
| 13041-5002004 |
1UZFE..UZZ3# MARK 4 |
8 | ||
| 13041-5002007 |
1UZFE..UZZ3# MARK 7 |
8 | ||
| 13041-5002003 |
1UZFE..UZZ3# MARK 3 |
8 | ||
| 13041-5002006 |
1UZFE..UZZ3# MARK 6 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5002002 |
1UZFE..UZZ3# MARK 2 |
8 | ||
| 13041-5002005 |
1UZFE..UZZ3# MARK 5 |
8 | ||
| 13041-5002004 |
1UZFE..UZZ3# MARK 4 |
8 | ||
| 13041-5002007 |
1UZFE..UZZ3# MARK 7 |
8 | ||
| 13041-5002003 |
1UZFE..UZZ3# MARK 3 |
8 | ||
| 13041-5002006 |
1UZFE..UZZ3# MARK 6 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5002002 |
1UZFE..UZZ3# MARK 2 |
8 | ||
| 13041-5002005 |
1UZFE..UZZ3# MARK 5 |
8 | ||
| 13041-5002004 |
1UZFE..UZZ3# MARK 4 |
8 | ||
| 13041-5002007 |
1UZFE..UZZ3# MARK 7 |
8 | ||
| 13041-5002003 |
1UZFE..UZZ3# MARK 3 |
8 | ||
| 13041-5002006 |
1UZFE..UZZ3# MARK 6 |
8 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5002002 |
1UZFE..UZZ3# MARK 2 |
8 | ||
| 13041-5002005 |
1UZFE..UZZ3# MARK 5 |
8 | ||
| 13041-5002004 |
1UZFE..UZZ3# MARK 4 |
8 | ||
| 13041-5002007 |
1UZFE..UZZ3# MARK 7 |
8 | ||
| 13041-5002003 |
1UZFE..UZZ3# MARK 3 |
8 | ||
| 13041-5002006 |
1UZFE..UZZ3# MARK 6 |
8 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-5002002 |
1UZFE..UZZ3# STD,MARK 2,右側 |
4 | ||
| 13301-5001001 |
1UZFE..UZZ3# STD,MARK 1,左側 |
4 | ||
| 13101-5002003 |
1UZFE..UZZ3# STD,MARK 3,右側 |
4 | ||
| 13301-5001003 |
1UZFE..UZZ3# STD,MARK 3,左側 |
4 | ||
| 13101-5002001 |
1UZFE..UZZ3# STD,MARK 1,右側 |
4 | ||
| 13301-5001002 |
1UZFE..UZZ3# STD,MARK 2,左側 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25004 |
1UZFE..UZZ3# |
16 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-50020 |
1UZFE..UZZ3# |
8 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73119 |
1UZFE..UZZ3# |
8 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-50020 |
1UZFE..UZZ3# |
16 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-50050 |
1UZFE..UZZ32 |
1 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-50050 |
1UZFE..UZZ32 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-50020 |
1UZFE..UZZ3# |
1 | ||
| 13411-50021 |
1UZFE..UZZ3# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20519 |
1UZFE..UZZ3# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90109-18003 |
1UZFE..UZZ3# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-50020 |
1UZFE..UZZ3# |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-50010 |
1UZFE..UZZ3# |
1 | ||
