UZZ31-ACPZK (1991)

Toyota Soarer

Production May 1991 - Sep 1997
Engine 1UZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )UZZ3#

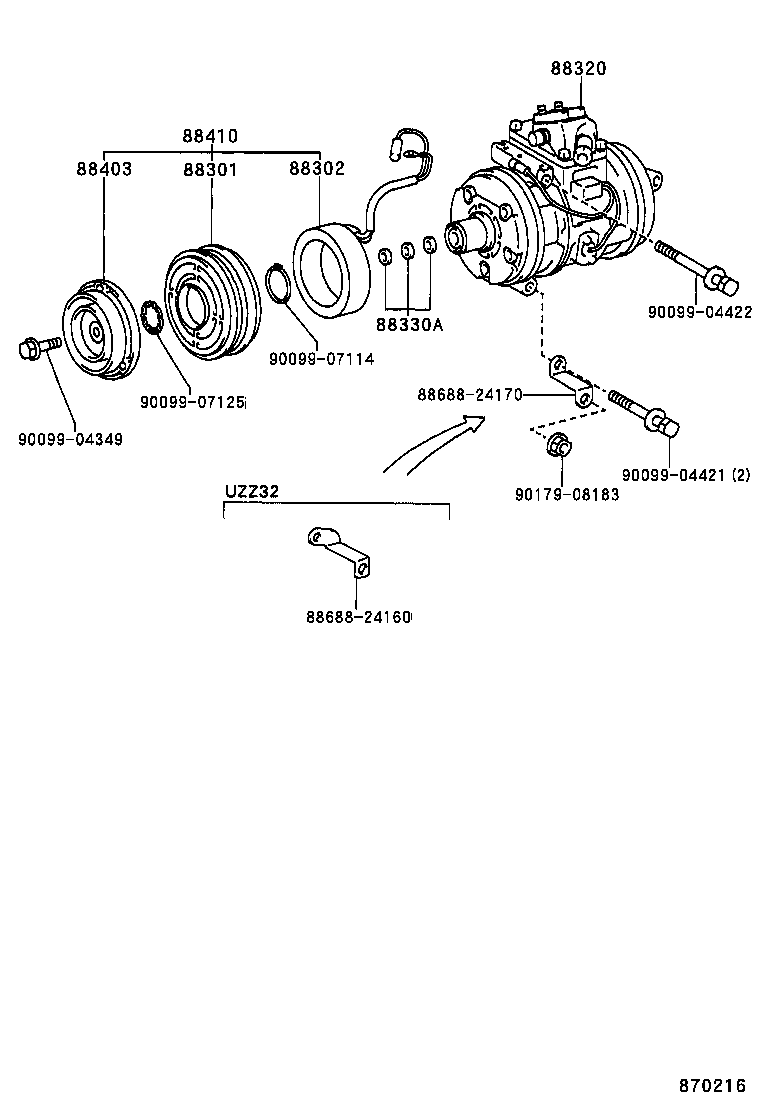

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 8868824160 8868824170 9009904349 9009904421 9009904422 9009907114 9009907125 9017908183
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-30380

UZZ3#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-24010

UZZ3#

 1
88411-24030

UZZ3#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-24140

UZZ31

 1
88320-24090

UZZ30,31

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

JZZ3#,UZZ3#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

JZZ30,UZZ3#

 1
88403-30290

JZZ3#,UZZ3#

 1
88410 - CLUTCH ASSY, MAGNET
88410-24040

UZZ3#

 1
88410-24010

UZZ3#

 1
Common parts
88688-24160
88688-24170
90099-04349
90099-04421
90099-04422
90099-07114
90099-07125
90179-08183
