UZZ31-ACPZK (1991)

Toyota Soarer

Production May 1991 - Sep 1997
Engine 1UZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9105-9608)JZZ30,UZZ3# ; (9608- )ATM

Click highlighted areas on diagram

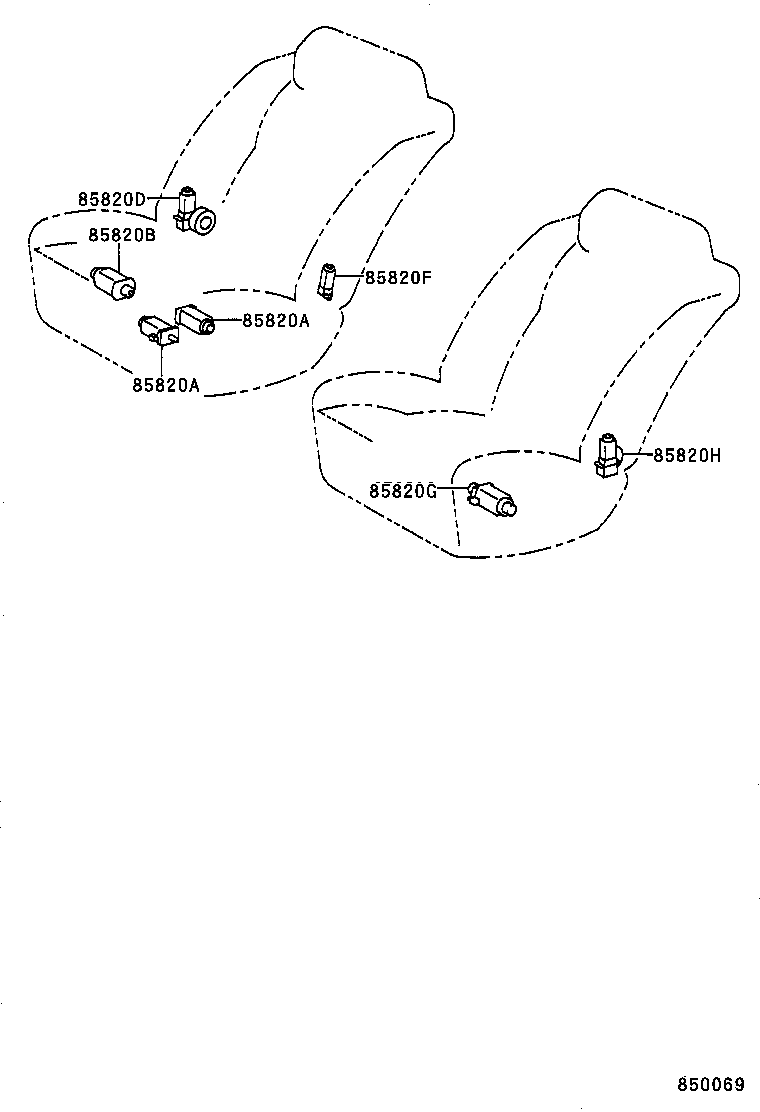

diagram 85820A 85820A 85820B 85820D 85820F 85820G 85820H
Part # Description Qty Price
85820A - MOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)
85820-22030

JZZ30,UZZ3#..GT,GTL,GTTL

 2
85820-24080

JZZ30,UZZ3#..GT,GTL,GTTL

 2
85820-24110

JZZ3#,UZZ31..ATM

 2
85820-24110

JZZ30,UZZ3#

 2
85820A - MOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)
85820-22030

JZZ30,UZZ3#..GT,GTL,GTTL

 2
85820-24080

JZZ30,UZZ3#..GT,GTL,GTTL

 2
85820-24110

JZZ3#,UZZ31..ATM

 2
85820-24110

JZZ30,UZZ3#

 2
85820B - MOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)
85820-24060

JZZ30,UZZ3#..GT,GTL,GTTL

 1
85820-24090

JZZ3#,UZZ31..ATM

 1
85820-24090

JZZ30,UZZ3#

 1
85820D - MOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)
85820-24040

JZZ30,UZZ31

 1
85801-24021

UZZ31

 1
85801-24020

UZZ31,32

ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ)

 1
85820F - MOTOR ASSY, POWER SEAT (FOR SIDE SUPPORT)
85820-50070

JZZ30,UZZ3#

 1
85820-24070

JZZ30,UZZ3#

 1
85820G - MOTOR ASSY, POWER SEAT
85820-24100

JZZ30,UZZ3#

 1
85820-24100

JZZ3#,UZZ31..ATM

 1
85820-24050

JZZ30,UZZ3#..GT,GTL,GTTL

 1
85820H - MOTOR ASSY, POWER SEAT
85820-24030

JZZ30,UZZ3#..GT,GTL,GTTL

 1
85820-24030

JZZ30,UZZ3#

 1
85820-24030

UZZ31

 1
85820-24030

JZZ3#,UZZ31..ATM

 1
