UZZ31-ACPZK (1991)
Toyota Soarer
Production
May 1991
-
Sep 1997
Engine
1UZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9105- )

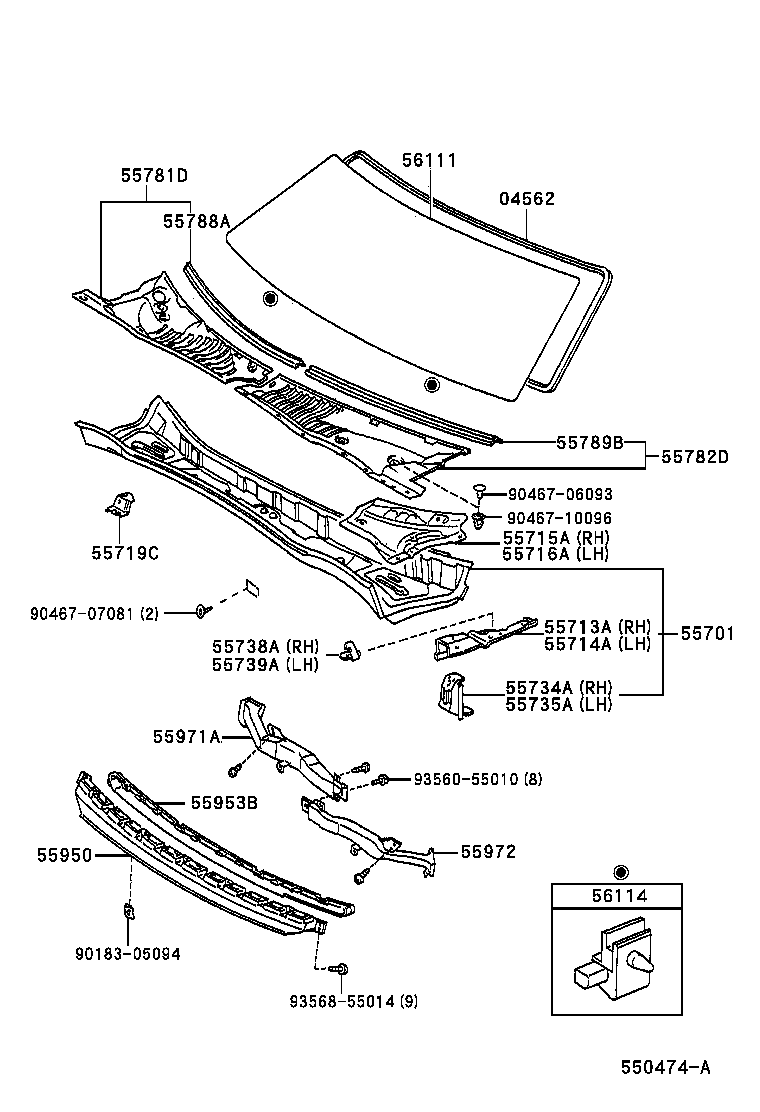

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
JZZ3#,UZZ3# |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-24070 |
UZZ3# |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-24030 |
JZZ3#,UZZ3# |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-24030 |
JZZ3#,UZZ3# |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-24030 |
JZZ3#,UZZ3# |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-24030 |
JZZ3#,UZZ3# |
1 | ||
| 55719C - BRACKET, WINDSHIELD WIPER MOTOR | ||||
| 55719-24020 |
JZZ3#,UZZ3# |
1 | ||
| 55734A - PLATE, WATER GUARD, RH | ||||
| 55734-24040 |
JZZ3#,UZZ3# |
1 | ||
| 55735A - PLATE, WATER GUARD, LH | ||||
| 55735-24040 |
JZZ3#,UZZ3# |
1 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-24020 |
JZZ3#,UZZ3# |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-24030 |
JZZ3#,UZZ3# |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55781-24050 |
JZZ3#,UZZ3# |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-24010 |
JZZ3#,UZZ3# |
1 | ||
| 55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER | ||||
| 55788-24010 |
JZZ3#,UZZ3# |
1 | ||
| 55789B - PROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2 | ||||
| 55789-24010 |
JZZ3#,UZZ3# |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55951-24030 |
JZZ3#,UZZ3# |
1 | ||
| 55953B - NOZZLE, DEFROSTER, REAR | ||||
| 55953-24020 |
JZZ3#,UZZ3# |
1 | ||
| 55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-24051 |
JZZ3#,UZZ3# |
1 | ||
| 55971-24050 |
JZZ30,UZZ3# |
1 | ||
| 55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-24030 |
JZZ3#,UZZ3# |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-24110 |
UZZ31,32 *SERL,T=4.7,ｸﾞﾚｰ |
1 | ||
| 56111-24120 |
UZZ31,32 *LAM,T=4.7,ｸﾞﾘｰﾝ |
1 | ||
| 56111-24140 |
JZZ3#,UZZ31 *LAM,T=4.7,ｸﾞﾘｰﾝ |
1 | ||
| 56111-24121 |
JZZ31,UZZ31,32 *LAM,T=4.7,ｸﾞﾘｰﾝ |
1 | ||
| 56111-24111 |
JZZ31,UZZ31,32 *SERL,T=4.7,ｸﾞﾚｰ |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56110-24010 |
JZZ3#,UZZ3# |
2 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90467-06093 | ||||
| 90467-07081 | ||||
| 90467-10096 | ||||
| 93560-55010 | ||||
| 93568-55014 | ||||
