UZZ30-ACPVK (1991)
Toyota Soarer
ILLUST NO. 1 OF 9(9105- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-24511 |
UZZ30 |
1 | ||
| 82111-24512 |
UZZ30 |
1 | ||
| 82111-24521 |
UZZ30 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82111-24522 |
UZZ30 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-24051 |
UZZ30,31 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-09004 |
JZZ30,UZZ3# 20A,黄 |
1 | ||
| 90982-08227 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08189 |
JZZ30,UZZ3#..ATM 40A,ﾒｽ端子,緑 |
2 | ||
| 90982-08272 |
UZZ3# 150A,ｵｽ端子,紫 |
1 | ||
| 90982-08202 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 60A,ｵｽ端子,黄 |
2 | ||
| 90982-08188 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08270 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 100A,ｵｽ端子,青 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-09004 |
JZZ30,UZZ3# 20A,黄 |
1 | ||
| 90982-08227 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08189 |
JZZ30,UZZ3#..ATM 40A,ﾒｽ端子,緑 |
2 | ||
| 90982-08272 |
UZZ3# 150A,ｵｽ端子,紫 |
1 | ||
| 90982-08202 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 60A,ｵｽ端子,黄 |
2 | ||
| 90982-08188 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08270 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 100A,ｵｽ端子,青 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
JZZ3#,UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
JZZ3#,UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24480 |
JZZ3#,UZZ3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-24500 |
JZZ31,UZZ30,31 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-24511 |
JZZ3#,UZZ3# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24480 |
JZZ3#,UZZ3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-24500 |
JZZ31,UZZ30,31 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-24511 |
JZZ3#,UZZ3# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24480 |
JZZ3#,UZZ3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-24500 |
JZZ31,UZZ30,31 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-24511 |
JZZ3#,UZZ3# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24480 |
JZZ3#,UZZ3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-24500 |
JZZ31,UZZ30,31 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82817-24511 |
JZZ3#,UZZ3# TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-24030 |
JZZ3#,UZZ3# |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-24040 |
JZZ3#,UZZ3# |
1 | ||
| Common parts | ||||
| 82823-20050 | ||||
| 90119-06049 | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 90119-06689 | ||||
| 90179-08146 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90461-08202 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9105- )
ﾌﾟﾛﾃｸﾀ(PNC82817)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 9(9105- )UZZ3#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-24362 |
UZZ30,31 ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82121-24352 |
UZZ30,31 |
1 | ||
| 82121-24361 |
UZZ3# ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82121-24351 |
UZZ30,31 |
1 | ||
| 82121-24353 |
UZZ30,31 |
1 | ||
| 82121-24363 |
UZZ3# ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-24241 |
UZZ30,31 |
1 | ||
| 82122-24241 |
UZZ3# |
1 | ||
| 82122-24242 |
UZZ3# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-50020 |
UZZ3# |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82124-50072 |
UZZ30,31 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-24200 |
UZZ3# |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-24040 |
UZZ3# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82824-24010 |
JZZ30,UZZ3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82824-24010 |
JZZ30,UZZ3# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-06311 | ||||
| 90119-06390 | ||||
| 90119-06393 | ||||
| 90119-06400 | ||||
| 90119-08770 | ||||
| 91611-G1014 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91651-40820 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 3 OF 9(9105- )
ｸﾗﾝﾌﾟ(ｴﾝｼﾞﾝ ﾜｲﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-24010 | ||||
| 82710-24020 | ||||
| 82710-24030 | ||||
| 82710-24050 | ||||
| 82710-50030 | ||||
| 82711-10330 | ||||
| 82711-1B020 | ||||
| 82711-50540 | ||||
| 82715-22230 | ||||
| 82715-22410 | ||||
| 82715-22460 | ||||
| 82715-22470 | ||||
| 82715-22520 | ||||
| 82715-24040 | ||||
| 82715-24050 | ||||
| 82715-24090 | ||||
| 82715-24170 | ||||
| 82715-50010 | ||||
| 82715-50020 | ||||
| 82715-50040 | ||||
| 82715-50080 | ||||
| 82715-50100 | ||||
| 82715-50110 | ||||
| 82715-50120 | ||||
| 82715-50150 | ||||
| 82715-50160 | ||||
| 82715-50220 | ||||
| 82715-50281 | ||||
| 90119-06311 | ||||
| 90119-06316 | ||||
| 90119-06375 | ||||
| 90119-06393 | ||||
| 90119-08479 | ||||
| 90119-08749 | ||||
| 91511-B0612 | ||||
| 91612-41014 | ||||
| 91621-J0814 | ||||
ILLUST NO. 4 OF 9(9105- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-24801 |
UZZ30 |
1 | ||
| 82131-24802 |
UZZ30 |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-24031 |
JZZ30,UZZ30 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),右側 |
1 | ||
| 82132-24071 |
JZZ30,UZZ30 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),左側 |
1 | ||
| 82132-24051 |
JZZ30,UZZ30 ｱﾘ(*80 & ﾌｴﾝﾀﾞ- ﾐﾗ-) |
1 | ||
| 82132-24041 |
JZZ30,UZZ30 ｱﾘ(*80) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-24031 |
JZZ30,UZZ30 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),右側 |
1 | ||
| 82132-24071 |
JZZ30,UZZ30 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),左側 |
1 | ||
| 82132-24051 |
JZZ30,UZZ30 ｱﾘ(*80 & ﾌｴﾝﾀﾞ- ﾐﾗ-) |
1 | ||
| 82132-24041 |
JZZ30,UZZ30 ｱﾘ(*80) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-24031 |
JZZ30,UZZ30 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),右側 |
1 | ||
| 82132-24071 |
JZZ30,UZZ30 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-),左側 |
1 | ||
| 82132-24051 |
JZZ30,UZZ30 ｱﾘ(*80 & ﾌｴﾝﾀﾞ- ﾐﾗ-) |
1 | ||
| 82132-24041 |
JZZ30,UZZ30 ｱﾘ(*80) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-24292 |
JZZ30,UZZ30..ATM..(GT,GTTL) ｱﾘ(*80 OR ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82141-24282 |
JZZ30,UZZ30..ATM..(GT,GTTL) |
1 | ||
| 82141-24281 |
JZZ30,UZZ30..ATM..(GT,GTTL) |
1 | ||
| 82141-24291 |
JZZ30,UZZ30..ATM..(GT,GTTL) ｱﾘ(*80 OR ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-24021 |
JZZ30,UZZ30..GT,GTTL |
1 | ||
| 82166-24051 |
JZZ30,UZZ30,31 ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) & ﾅｼ(CRT) |
1 | ||
| 82166-24041 |
JZZ30,UZZ30 ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 82166-24042 |
JZZ30,UZZ30 ｱﾘ(CD ﾌﾟﾚ-ﾔ) |
1 | ||
| 82166-24022 |
JZZ30,UZZ30..GT,GTTL |
1 | ||
| 82166-24052 |
JZZ30,UZZ30,31 ｱﾘ(CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) & ﾅｼ(CRT) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-09004 |
JZZ30,UZZ3# 20A,黄 |
1 | ||
| 90982-08227 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08189 |
JZZ30,UZZ3#..ATM 40A,ﾒｽ端子,緑 |
2 | ||
| 90982-08272 |
UZZ3# 150A,ｵｽ端子,紫 |
1 | ||
| 90982-08202 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 60A,ｵｽ端子,黄 |
2 | ||
| 90982-08188 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08270 |
JZZ30,UZZ3#..ATM;JZZ30..MTM..GTTL 100A,ｵｽ端子,青 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
JZZ3#,UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
JZZ3#,UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
JZZ3#,UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
JZZ3#,UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
JZZ3#,UZZ3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-24100 |
JZZ3#,UZZ3# |
1 | ||
| Common parts | ||||
| 82819-24160 | ||||
| 90119-06005 | ||||
| 90119-06390 | ||||
| 90119-06495 | ||||
| 90159-50327 | ||||
| 90179-06171 | ||||
| 90333-30002 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

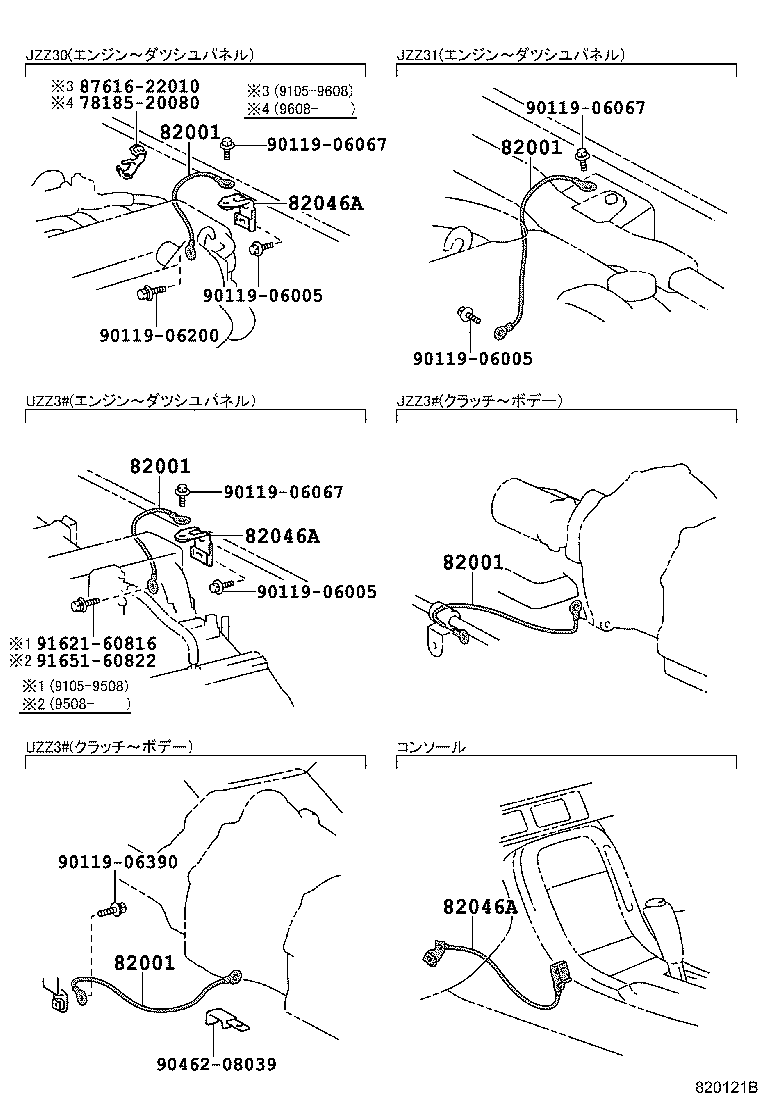

ILLUST NO. 9 OF 9(9105- )
ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07308 |
UZZ3# ｴﾝｼﾞﾝｰｰｰﾀﾞｯｼｭ ﾊﾟﾈﾙ |
1 | ||
| 90980-07344 |
UZZ3# ｸﾗﾂﾁ---ﾎﾞﾃﾞ- |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07308 |
UZZ3# ｴﾝｼﾞﾝｰｰｰﾀﾞｯｼｭ ﾊﾟﾈﾙ |
1 | ||
| 90980-07344 |
UZZ3# ｸﾗﾂﾁ---ﾎﾞﾃﾞ- |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07308 |
UZZ3# ｴﾝｼﾞﾝｰｰｰﾀﾞｯｼｭ ﾊﾟﾈﾙ |
1 | ||
| 90980-07344 |
UZZ3# ｸﾗﾂﾁ---ﾎﾞﾃﾞ- |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07308 |
UZZ3# ｴﾝｼﾞﾝｰｰｰﾀﾞｯｼｭ ﾊﾟﾈﾙ |
1 | ||
| 90980-07344 |
UZZ3# ｸﾗﾂﾁ---ﾎﾞﾃﾞ- |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07308 |
UZZ3# ｴﾝｼﾞﾝｰｰｰﾀﾞｯｼｭ ﾊﾟﾈﾙ |
1 | ||
| 90980-07344 |
UZZ3# ｸﾗﾂﾁ---ﾎﾞﾃﾞ- |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-24020 |
JZZ3#,UZZ3# ｺﾝｿｰﾙ |
1 | ||
| 82046-24010 |
JZZ3#,UZZ3# ﾀﾞﾂｼﾕ ﾊﾟﾈﾙ |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-24020 |
JZZ3#,UZZ3# ｺﾝｿｰﾙ |
1 | ||
| 82046-24010 |
JZZ3#,UZZ3# ﾀﾞﾂｼﾕ ﾊﾟﾈﾙ |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-24020 |
JZZ3#,UZZ3# ｺﾝｿｰﾙ |
1 | ||
| 82046-24010 |
JZZ3#,UZZ3# ﾀﾞﾂｼﾕ ﾊﾟﾈﾙ |
1 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 87616-22010 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90119-06200 | ||||
| 90119-06390 | ||||
| 90462-08039 | ||||
| 91621-60816 | ||||
| 91651-60822 | ||||
ILLUST NO. 6 OF 9(9105- )
ﾌﾛｱ & ﾗｹ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-24391 |
UZZ30 |
1 | ||
| 82161-24401 |
UZZ30 ｱﾘ(CD ﾌﾟﾚ-ﾔ OR CD ｵ-ﾄ ﾁｴﾝｼﾞﾔ-) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-24051 |
UZZ30 |
1 | ||
| 82163-24052 |
UZZ30 |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-24020 |
JZZ3#,UZZ3# |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-24020 |
JZZ3#,UZZ3# |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20480 |
JZZ3#,UZZ3# |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20480 |
JZZ3#,UZZ3# |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20480 |
JZZ3#,UZZ3# |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20480 |
JZZ3#,UZZ3# |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20480 |
JZZ3#,UZZ3# |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20480 |
JZZ3#,UZZ3# |
1 | ||
| Common parts | ||||
| 82819-24130 | ||||
| 90119-06121 | ||||
| 90119-06390 | ||||
| 90333-30002 | ||||
ILLUST NO. 8 OF 9(9105- )
ﾘﾍﾟｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-24050 |
JZZ30,UZZ30,31 ﾛｰ ﾋﾞｰﾑ |
2 | ||
| 82981-24060 |
JZZ30,UZZ30,31 ﾊｲ ﾋﾞｰﾑ |
2 | ||
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-24050 |
JZZ30,UZZ30,31 ﾛｰ ﾋﾞｰﾑ |
2 | ||
| 82981-24060 |
JZZ30,UZZ30,31 ﾊｲ ﾋﾞｰﾑ |
2 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-24020 |
JZZ3#,UZZ3# |
2 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-24010 |
JZZ3#,UZZ3# |
2 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-24010 |
JZZ3#,UZZ3# |
2 | ||
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 82988-24010 |
JZZ3#,UZZ3# |
1 | ||
| 82988-50010 |
JZZ30,UZZ3# |
1 | ||
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 82988-24010 |
JZZ3#,UZZ3# |
1 | ||
| 82988-50010 |
JZZ30,UZZ3# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-24020 |
JZZ30,UZZ3# |
1 | ||
ILLUST NO. 8 OF 9(9105- )
ﾘﾍﾟｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82166B - WIRE, CONSOLE BOX REPAIR | ||||
| 82166-24100 |
JZZ3#,UZZ3# |
1 | ||
ILLUST NO. 3 OF 9(9105- )
ｸﾗﾝﾌﾟ(ｴﾝｼﾞﾝ ﾜｲﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10380 | ||||
| 82711-2A620 | ||||
| 82711-32650 | ||||
| 82711-50560 | ||||
| 82715-20420 | ||||
| 82715-24070 | ||||
| 82715-24140 | ||||
| 82715-24150 | ||||
| 82715-24160 | ||||
| 82715-24180 | ||||
| 82715-30460 | ||||
| 82715-50030 | ||||
| 82715-50291 | ||||
| 90119-06375 | ||||
| 91511-B0612 | ||||
| 91651-A0614 | ||||
ILLUST NO. 5 OF 9(9105- )
ﾄﾞｱ & ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-24181 |
JZZ30,UZZ30 |
1 | ||
| 82151-24161 |
JZZ30,UZZ3# ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-24191 |
JZZ30,UZZ30..GT,GTTL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾋ-ﾀ ﾂｷ ﾐﾗ-) |
1 | ||
| 82151-24162 |
JZZ30,UZZ3# ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-24081 |
JZZ30,UZZ3# ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-24111 |
JZZ30,UZZ30..GT,GTTL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾋ-ﾀ ﾂｷ ﾐﾗ-) |
1 | ||
| 82152-24101 |
JZZ30,UZZ30 |
1 | ||
| 82152-24082 |
JZZ30,UZZ3# ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-24131 |
JZZ30,UZZ30 |
1 | ||
| 82171-24161 |
JZZ30,UZZ3#..GT,GTL,GTTL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾋ-ﾀ ﾂｷ ﾐﾗ- & ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-24151 |
JZZ30,UZZ30 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 82171-24141 |
JZZ30,UZZ3#..GT,GTL,GTTL ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾘﾓｺﾝ ﾋ-ﾀ ﾂｷ ﾐﾗ-) |
1 | ||
ILLUST NO. 7 OF 9(9105- )
ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-24021 |
JZZ30,UZZ30..GT,GTTL |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-24021 |
JZZ30,UZZ3#..GT,GTL,GTTL |
1 | ||
| 82192-24021 |
JZZ30,UZZ30..GT,GTTL |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90463-12014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
