UZZ30-ACPVK (1991)

Toyota Soarer

Production May 1991 - Jan 1994
Engine 1UZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )1UZFE

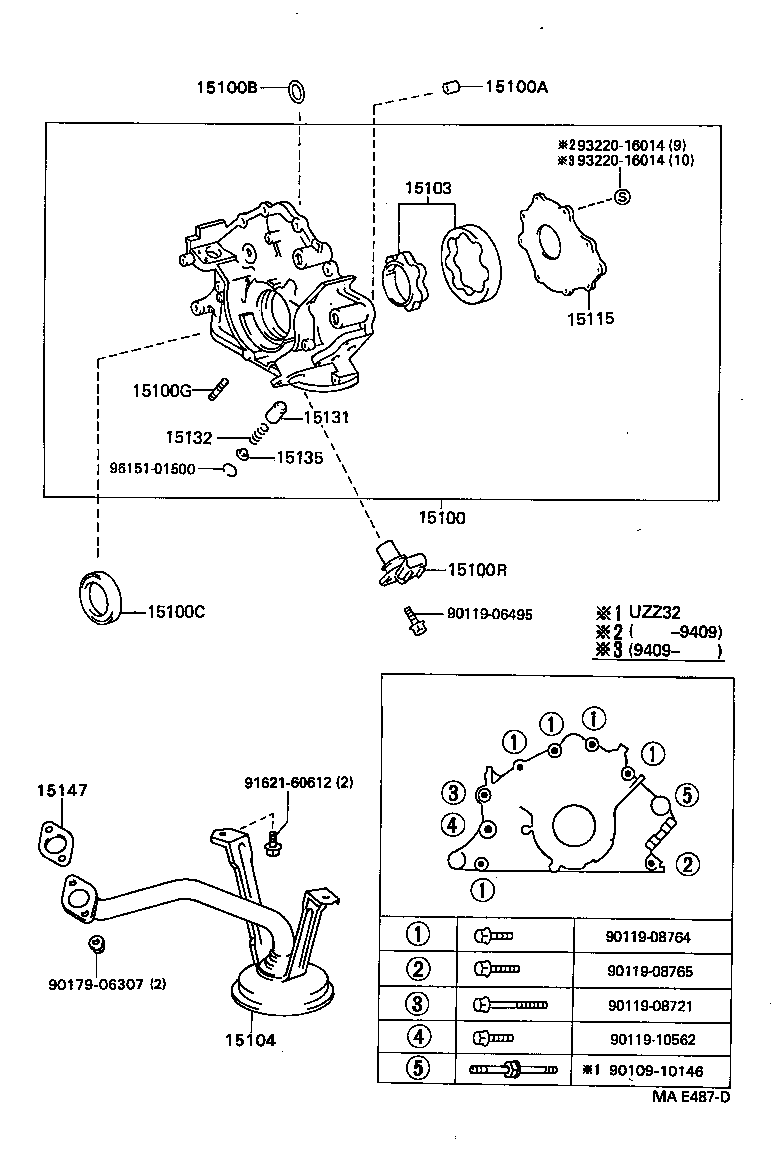

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15100G 15100R 15103 15104 15115 15131 15132 15135 15147 9010910146 9011906495 9011908721 9011908764 9011908765 9011910562 9017906307 9162160612 9322016014 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-50020

1UZFE..UZZ30,31

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-13017

1UZFE..UZZ3#

 2
15100B - RING, O(FOR OIL PUMP)
96721-24025

1UZFE..UZZ3#

 1
15100C - SEAL(FOR OIL PUMP)
90311-43004

1UZFE..UZZ3#

 1
15100G - BOLT,STUD(FOR OIL PUMP)
16193-15010

1UZFE..UZZ3#

 2
15100R - SENSOR, CRANK POSITION
90919-05002

1UZFE..UZZ3#

 1
15103 - GEAR SET, OIL PUMP
15103-50020

1UZFE..UZZ3#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-50070

1UZFE..UZZ3#

 1
15115 - COVER, OIL PUMP
15115-50020

1UZFE..UZZ3#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

1UZFE..UZZ3#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-62010

1UZFE..UZZ3#

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

1UZFE..UZZ3#

 1
15147 - GASKET, OIL STRAINER
15147-50010

1UZFE..UZZ3#

 1
Common parts
90109-10146
90119-06495
90119-08721
90119-08764
90119-08765
90119-10562
90179-06307
91621-60612
93220-16014
96151-01500
