MZ21-HCPZZ (1986)
Toyota Soarer

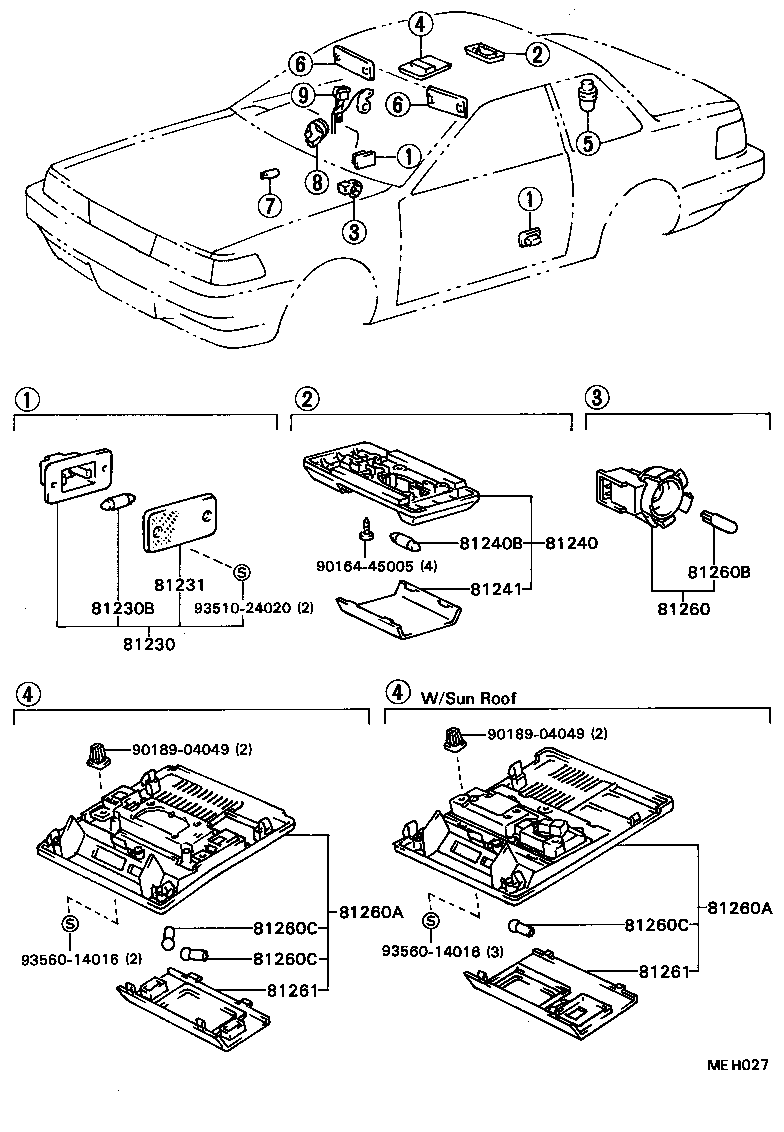

ILLUST NO. 1 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-24010 |
GZ20,MZ2# |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 99132-13050 |
GZ20,MZ2# 12V 5W,12V 5W |
2 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30080 |
GZ20,MZ2# |
2 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-2402005 |
GZ20,MZ2#..GT,GTL,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-12100 |
GZ20,MZ2# 12V 10W,12V 10W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-24010 |
GZ20,MZ2# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81260-22070 |
GZ20,MZ2# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2403005 |
GZ20,MZ2#..GT,GTL,VX W/SUN ROOF,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81260-2402005 |
GZ20,MZ2#..GT,GTL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-2403005 |
GZ20,MZ2#..GT,GTL,VX W/SUN ROOF,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81260-2402005 |
GZ20,MZ2#..GT,GTL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81260B - BULB(FOR GLOVE BOX) | ||||
| 90981-11018 |
GZ20,MZ2# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
GZ20,MZ2# 12V 8W,12V 8W |
2 | ||
| 90981-12014 |
GZ20,MZ2# 12V 10W,W/SUN ROOF,12V 10W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
GZ20,MZ2# 12V 8W,12V 8W |
2 | ||
| 90981-12014 |
GZ20,MZ2# 12V 10W,W/SUN ROOF,12V 10W |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
GZ20,MZ2# 12V 8W,12V 8W |
2 | ||
| 90981-12014 |
GZ20,MZ2# 12V 10W,W/SUN ROOF,12V 10W |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2403005 |
GZ20,MZ2#..GT,GTL,VX W/SUN ROOF,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81261-2402005 |
GZ20,MZ2#..GT,GTL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81261 - LENS AND COVER, MAP LAMP | ||||
| 81261-2403005 |
GZ20,MZ2#..GT,GTL,VX W/SUN ROOF,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 81261-2402005 |
GZ20,MZ2#..GT,GTL,VX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90164-45005 | ||||
| 90189-04049 | ||||
| 93510-24020 | ||||
| 93560-14016 | ||||

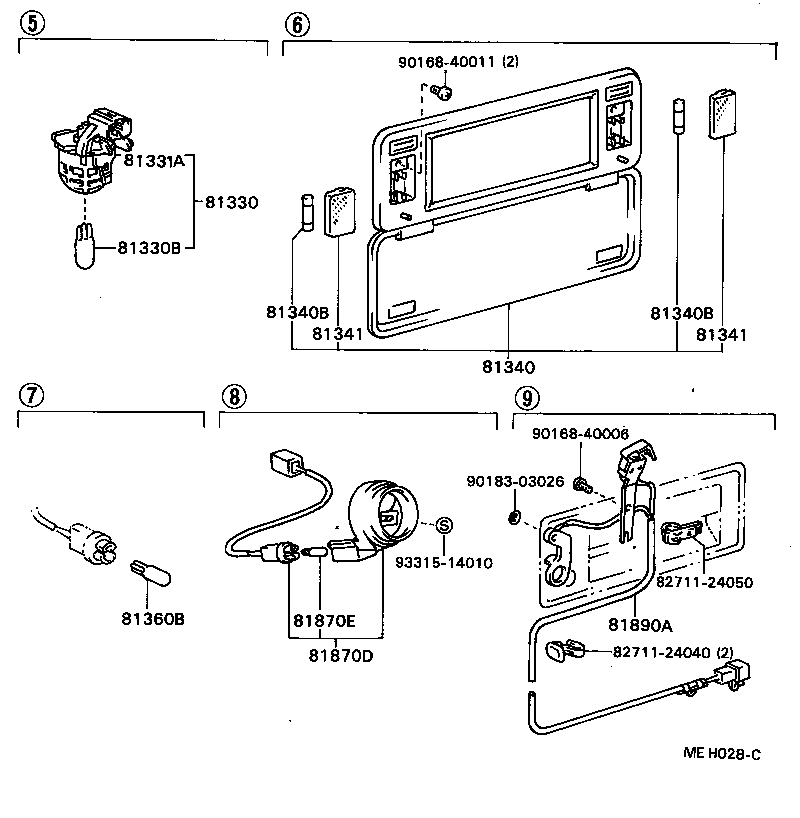

ILLUST NO. 2 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-22030 |
GZ20,MZ2# |
1 | ||
| 81330-22031 |
GZ20,MZ2# |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
GZ20,MZ2# 12V 5W,12V 5W |
1 | ||
| 90981-11020 |
GZ20,MZ2# 12V 3.8W,12V 3.8W |
1 | ||
| 81331A - COVER, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-22030 |
GZ20,MZ2# |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-2402005 |
MZ2#..GTL BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
MZ2#..GTL 12V 1.5W,12V 1.5W |
4 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-14003 |
MZ2#..GTL 12V 1.5W,12V 1.5W |
4 | ||
| 81341 - LENS, VANITY LAMP | ||||
| 81341-24010 |
MZ2#..GTL |
4 | ||
| 81341 - LENS, VANITY LAMP | ||||
| 81341-24010 |
MZ2#..GTL |
4 | ||
| 81360B - BULB, STEP OR SPOT LAMP | ||||
| 90981-11014 |
GZ20,MZ2# 14V 1.4W,12V 1.4W |
1 | ||
| 81870D - LAMP ASSY, KEY CYLINDER | ||||
| 81870-14010 |
GZ20,MZ2# |
1 | ||
| 81870E - BULB, KEY CYLINDER LAMP | ||||
| 90981-11018 |
GZ20,MZ2# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
1 | ||
| 81890A - LAMP ASSY, DOOR LOCK CYLINDER | ||||
| 81890-24020 |
GZ20,MZ2# |
1 | ||
| Common parts | ||||
| 82711-24040 | ||||
| 82711-24050 | ||||
| 90168-40006 | ||||
| 90168-40011 | ||||
| 90183-03026 | ||||
| 93315-14010 | ||||
