MZ21-HCPZZ (1986)

Toyota Soarer

Production Jan 1986 - Jan 1988
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )MZ21

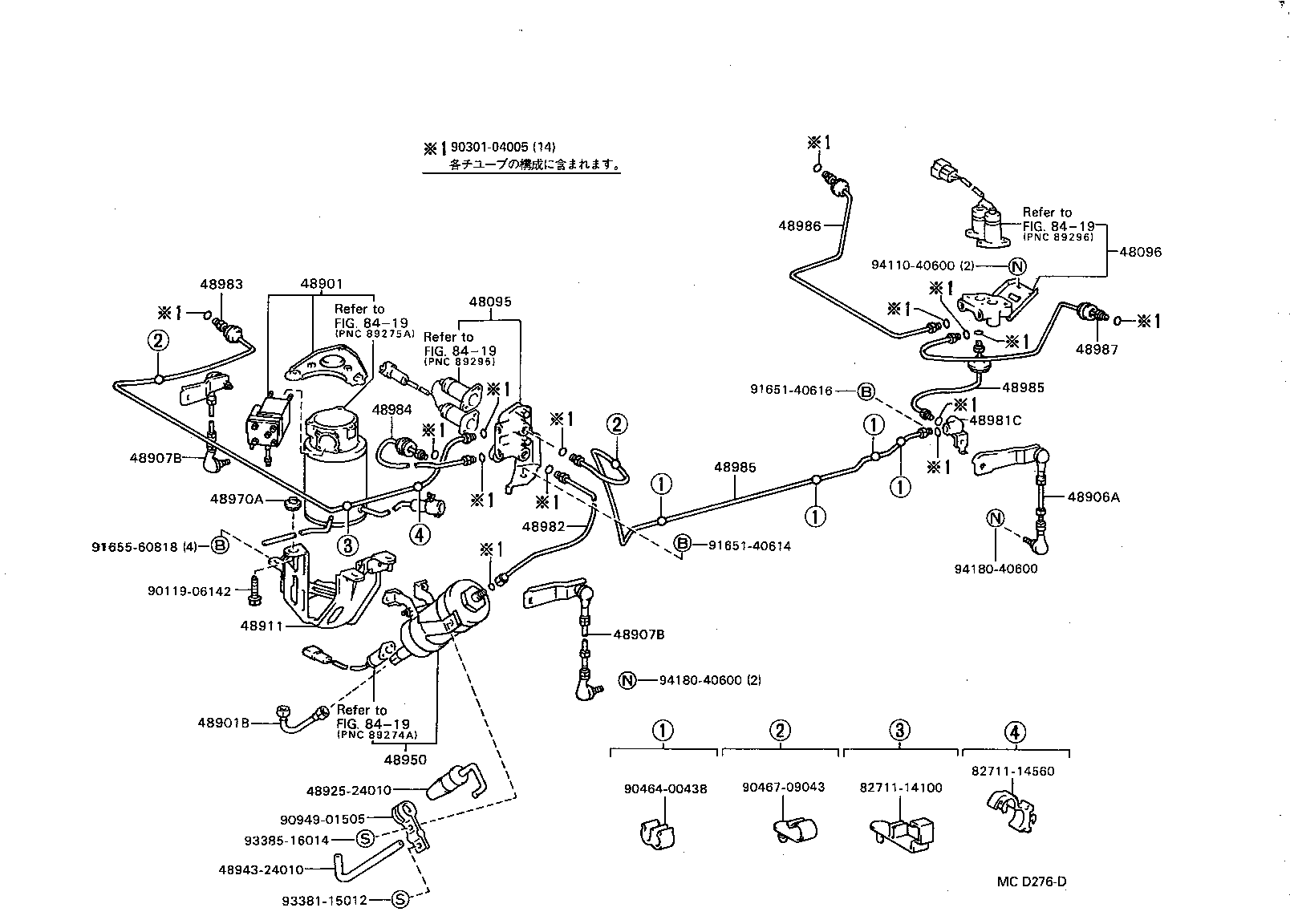

Click highlighted areas on diagram

diagram 48095 48096 48901 48901B 48906A 48907B 48907B 48911 4892524010 4894324010 48950 48970A 48981C 48982 48983 48984 48985 48985 48986 48987 8271114100 8271114560 8419 8419 8419 8419 9011906142 9030104005 9046400438 9046709043 9094901505 9165140614 9165140616 9165560818 9338115012 9338516014 9411040600 9418040600 9418040600
Part # Description Qty Price
48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1
48095-24010

MZ21

 1
48096 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48096-24010

MZ21

 1
48901 - COMPRESSOR SUB-ASSY, HEIGHT CONTROL
48910-24011

MZ21

 1
48901B - HOSE, FLEXIBLE(FOR HEIGHT CONTROL COMPRESSOR)
90947-02501

MZ21

 1
48906A - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR
48906-24010

MZ21

 1
48907B - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT
48907-24020

MZ21

LH

 1
48907-24010

MZ21

RH

 1
48907B - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT
48907-24020

MZ21

LH

 1
48907-24010

MZ21

RH

 1
48911 - BRACKET, HEIGHT CONTROL COMPRESSOR
48911-24010

MZ21

 1
48950 - DRYER ASSY, HEIGHT CONTROL
48950-24011

MZ21

 1
48970A - BUSH(FOR HEIGHT CONTROL COMPRESSOR)
90389-06018

MZ21

 3
48981C - WAY(FOR HEIGHT CONTROL TUBE)
90412-12022

MZ21

 1
48982 - TUBE, HEIGHT CONTROL, NO.2
48982-24010

MZ21

 1
48983 - TUBE, HEIGHT CONTROL, NO.3
48983-24010

MZ21

 1
48984 - TUBE, HEIGHT CONTROL, NO.4
48984-24010

MZ21

 1
48985 - TUBE, HEIGHT CONTROL, NO.5
48985-24020

MZ21

RR

 1
48985-24010

MZ21

FR

 1
48985 - TUBE, HEIGHT CONTROL, NO.5
48985-24020

MZ21

RR

 1
48985-24010

MZ21

FR

 1
48986 - TUBE, HEIGHT CONTROL, NO.6
48986-24010

MZ21

 1
48987 - TUBE, HEIGHT CONTROL, NO.7
48987-24010

MZ21

 1
Common parts
48925-24010
48943-24010
82711-14100
82711-14560
90119-06142
90301-04005
90464-00438
90467-09043
90949-01505
91651-40614
91651-40616
91655-60818
93381-15012
93385-16014
94110-40600
94180-40600
Linked diagrams
8419
