MZ21-HCPZZ (1986)

Toyota Soarer

Production Jan 1986 - Jan 1988
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

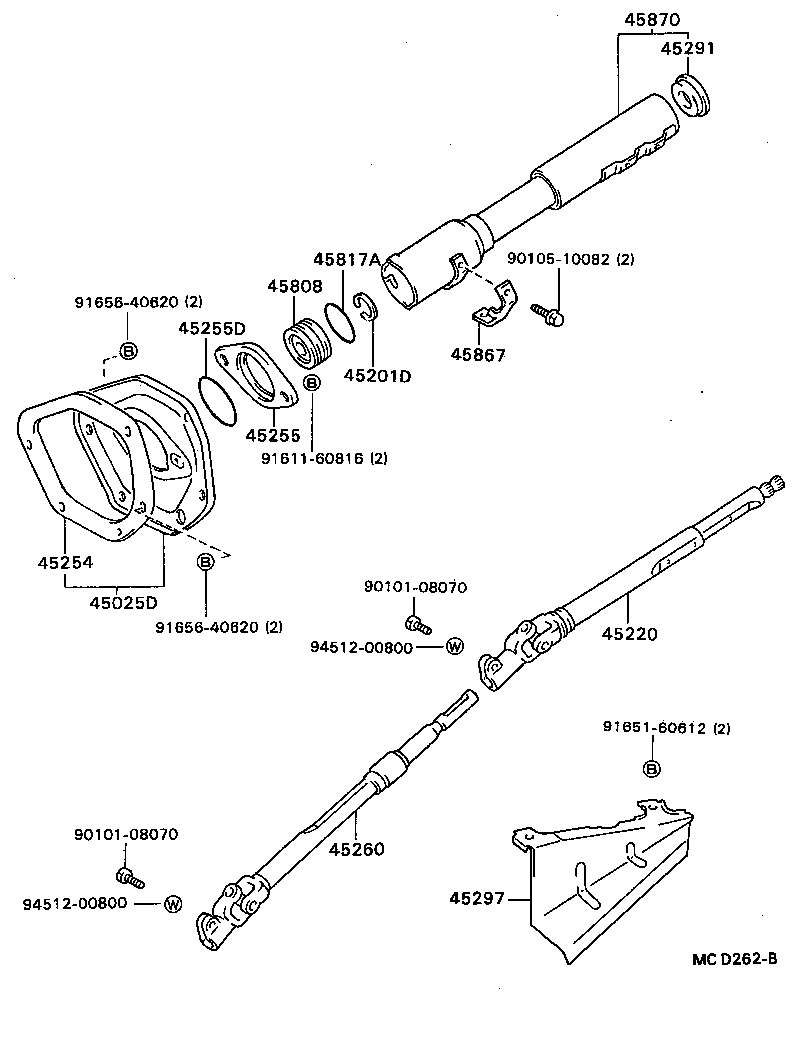

ILLUST NO. 1 OF 3(8601- )

Click highlighted areas on diagram

diagram 45025D 45201D 45220 45254 45255 45255D 45260 45291 45297 45808 45817A 45867 45870 9010108070 9010108070 9010510082 9161160816 9165160612 9165640620 9165640620 9451200800 9451200800
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-14150

GZ20,MZ2#

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-24040

GZ20,MZ2#..GT,GTL

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-14050

GZ20,MZ2#

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-12030

GZ20,MZ2#

 1
45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE)
90301-59001

GZ20,MZ2#

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-14280

MZ2#

 1
45260-14230

GZ20,MZ2#

 1
45291 - SEAL, MAIN SHAFT UPPER DUST
45282-22010

GZ20,MZ2#

 1
45297 - INSULATOR, STEERING YOKE HEAT
45297-14030

GZ20,MZ2#

 1
45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST
45808-12030

GZ20,MZ2#

 1
45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER)
96711-24053

GZ20,MZ2#

 1
45867 - RETAINER, STEERING MAIN SHAFT STOPPER
45867-12010

GZ20,MZ2#

 1
45870 - TUBE ASSY, STEERING COLUMN
45870-24040

GZ20,MZ2#..GT,GTL

 1
Common parts
90101-08070
90105-10082
91611-60816
91651-60612
91656-40620
94512-00800

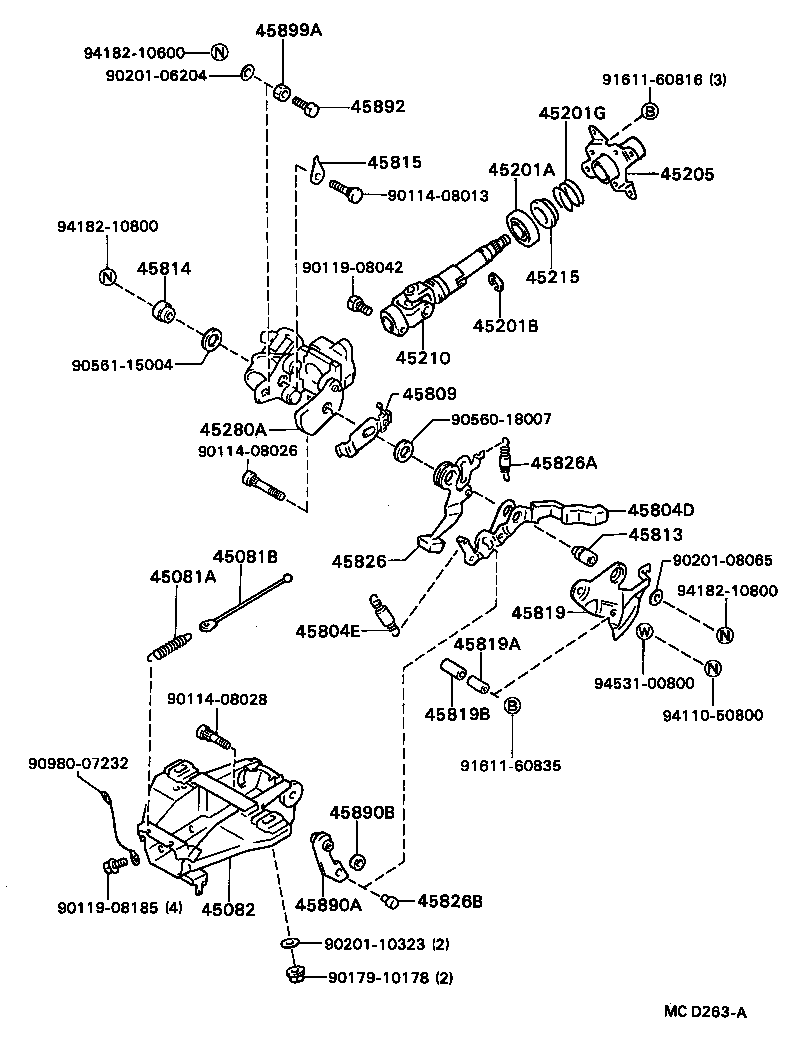

ILLUST NO. 2 OF 3(8601- )GT,GTT,VX,VZ

Click highlighted areas on diagram

diagram 45081A 45081B 45082 45201A 45201B 45201G 45205 45210 45215 45280A 45804D 45804E 45809 45813 45814 45815 45819 45819A 45819B 45826 45826A 45826B 45890A 45890B 45892 45899A 9011408013 9011408026 9011408028 9011908042 9011908185 9017910178 9020106204 9020108065 9020110323 9056018007 9056115004 9098007232 9161160816 9161160835 9411050800 9418210600 9418210800 9418210800 9453100800
Part # Description Qty Price
45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45082-24010

MZ2#..GTL

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-28001

GZ20,MZ2#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

GZ20,MZ2#

厚さ=1.20

 1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-45011

GZ20,MZ2#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-20200

GZ20,MZ2#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-20200

GZ20,MZ2#

 1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-22011

GZ20,MZ2#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-24040

MZ2#..GTL

 1
45814 - COLLAR, TILT STEERING SUPPORT, NO.2
45814-24040

MZ2#..GTL

外径=18.003−18.010,OD=18.003-18.010

 1
45814-24060

MZ2#..GTL

外径=18.017−18.024,OD=18.017-18.024

 1
45814-24010

MZ2#..GTL

外径=17.982−17.989,OD=17.982-17.989

 1
45814-24030

MZ2#..GTL

外径=17.996−18.003,OD=17.996-18.003

 1
45814-24020

MZ2#..GTL

外径=17.989−17.996,OD=17.989-17.996

 1
45814-24050

MZ2#..GTL

外径=18.010−18.017,OD=18.010-18.017

 1
45815 - SHIM, TILT STEERING SUPPORT
45815-22060

MZ2#..GTL

厚さ=0.2,T=0.2

 2
45815-22080

MZ2#..GTL

厚さ=0.8,T=0.8

 2
45815-22070

MZ2#..GTL

厚さ=0.5,T=0.5

 2
45815-22100

MZ2#..GTL

厚さ=1.8,T=1.8

 2
45815-22090

MZ2#..GTL

厚さ=1.4,T=1.4

 2
Common parts
90114-08013
90114-08026
90114-08028
90119-08042
90119-08185
90179-10178
90201-06204
90201-08065
90201-10323
90560-18007
90561-15004
90980-07232
91611-60816
91611-60835
94110-50800
94182-10600
94182-10800
94531-00800

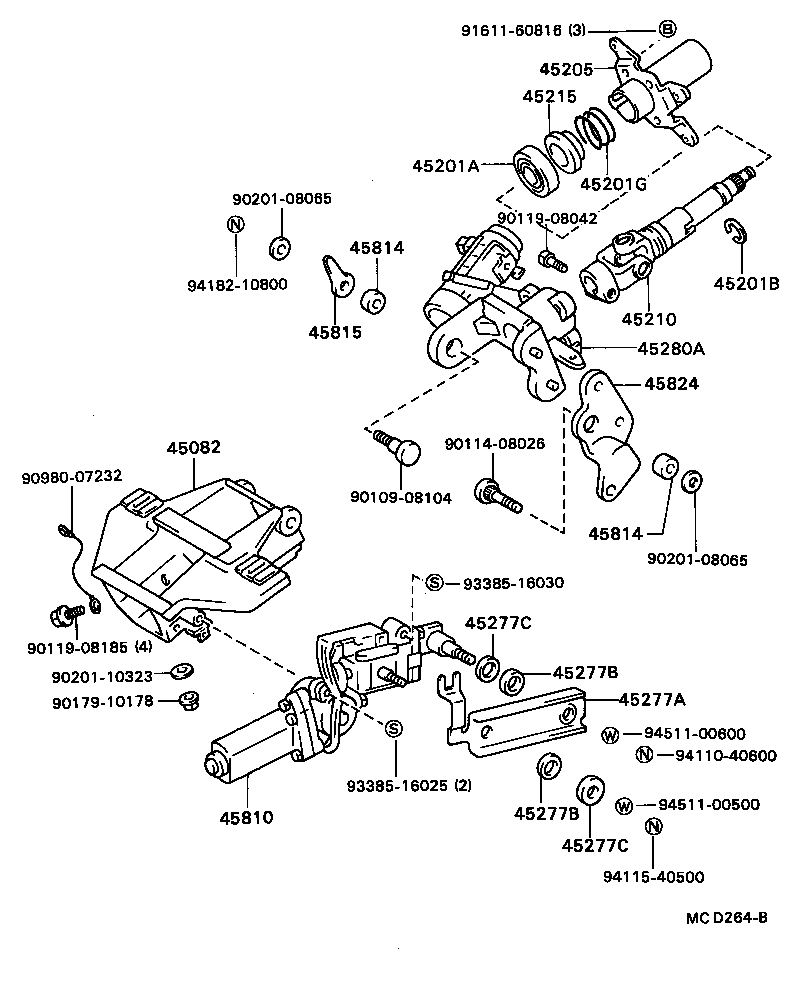

ILLUST NO. 2 OF 3(8601- )GTL

Click highlighted areas on diagram

diagram 45082 45201A 45201B 45201G 45205 45210 45215 45277A 45277B 45277B 45277C 45277C 45280A 45810 45814 45814 45815 45824 9010908104 9011408026 9011908042 9011908185 9017910178 9020108065 9020108065 9020110323 9098007232 9161160816 9338516025 9338516030 9411040600 9411540500 9418210800 9451100500 9451100600
Part # Description Qty Price
45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45082-24010

MZ2#..GTL

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-28001

GZ20,MZ2#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

GZ20,MZ2#

厚さ=1.20

 1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-45011

GZ20,MZ2#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-20200

GZ20,MZ2#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-20200

GZ20,MZ2#

 1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-22011

GZ20,MZ2#

 1
45277A - SUPPORT, TILT STEERING
45277-30080

MZ2#..GTL

 1
45277B - CUSHION(FOR TILT STEERING SUPPORT)
90540-07005

MZ2#..GTL

OD=11

 1
90540-08012

MZ2#..GTL

OD=14

 1
45277B - CUSHION(FOR TILT STEERING SUPPORT)
90540-07005

MZ2#..GTL

OD=11

 1
90540-08012

MZ2#..GTL

OD=14

 1
45277C - SPACER(FOR TILT STEERING SUPPORT)
90561-05003

MZ2#..GTL

OD=15.2

 1
90560-08049

MZ2#..GTL

OD=13.3

 1
45277C - SPACER(FOR TILT STEERING SUPPORT)
90561-05003

MZ2#..GTL

OD=15.2

 1
90560-08049

MZ2#..GTL

OD=13.3

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-24040

MZ2#..GTL

 1
45810 - GEAR ASSY, TILT STEERING, W/MOTOR
45810-24010

MZ2#..GTL

 1
45810-24011

MZ2#..GTL

 1
45810-24012

MZ2#..GTL

 1
45814 - COLLAR, TILT STEERING SUPPORT, NO.2
45814-24040

MZ2#..GTL

外径=18.003−18.010,OD=18.003-18.010

 1
45814-24060

MZ2#..GTL

外径=18.017−18.024,OD=18.017-18.024

 1
45814-24010

MZ2#..GTL

外径=17.982−17.989,OD=17.982-17.989

 1
45814-24030

MZ2#..GTL

外径=17.996−18.003,OD=17.996-18.003

 1
45814-24020

MZ2#..GTL

外径=17.989−17.996,OD=17.989-17.996

 1
45814-24050

MZ2#..GTL

外径=18.010−18.017,OD=18.010-18.017

 1
45814 - COLLAR, TILT STEERING SUPPORT, NO.2
45814-24040

MZ2#..GTL

外径=18.003−18.010,OD=18.003-18.010

 1
45814-24060

MZ2#..GTL

外径=18.017−18.024,OD=18.017-18.024

 1
45814-24010

MZ2#..GTL

外径=17.982−17.989,OD=17.982-17.989

 1
45814-24030

MZ2#..GTL

外径=17.996−18.003,OD=17.996-18.003

 1
45814-24020

MZ2#..GTL

外径=17.989−17.996,OD=17.989-17.996

 1
45814-24050

MZ2#..GTL

外径=18.010−18.017,OD=18.010-18.017

 1
45815 - SHIM, TILT STEERING SUPPORT
45815-22060

MZ2#..GTL

厚さ=0.2,T=0.2

 2
45815-22080

MZ2#..GTL

厚さ=0.8,T=0.8

 2
45815-22070

MZ2#..GTL

厚さ=0.5,T=0.5

 2
45815-22100

MZ2#..GTL

厚さ=1.8,T=1.8

 2
45815-22090

MZ2#..GTL

厚さ=1.4,T=1.4

 2
45824 - PAWL, TILT STEERING
45824-24010

MZ2#..GTL

 1
Common parts
90109-08104
90114-08026
90119-08042
90119-08185
90179-10178
90201-08065
90201-10323
90980-07232
91611-60816
93385-16025
93385-16030
94110-40600
94115-40500
94182-10800
94511-00500
94511-00600

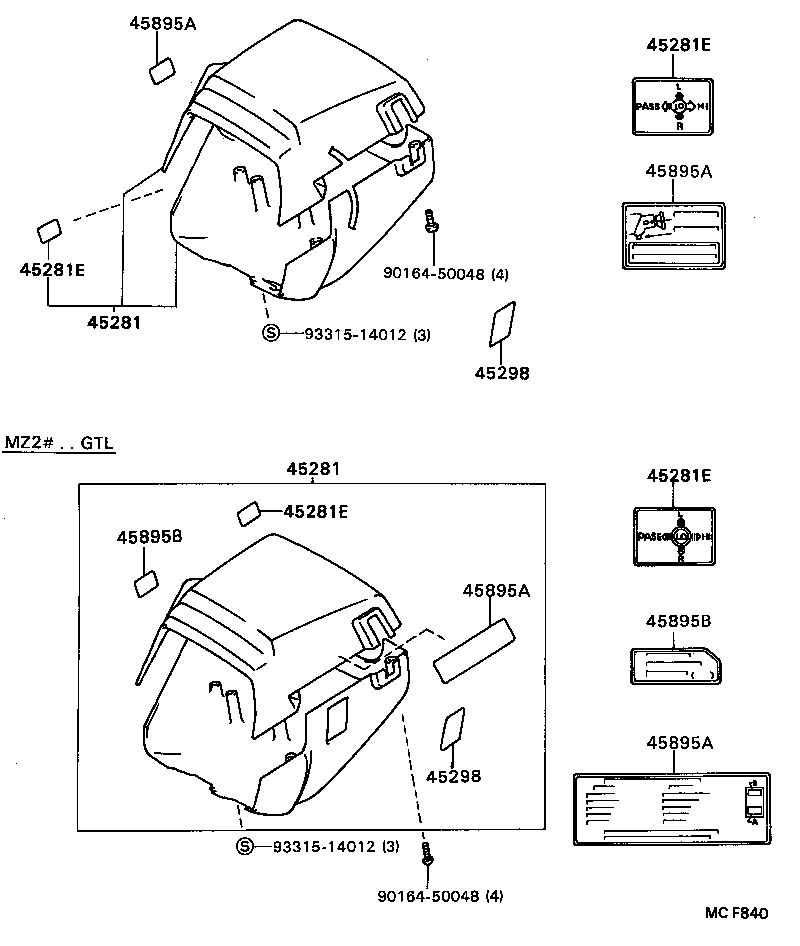

ILLUST NO. 3 OF 3(8601- )

Click highlighted areas on diagram

diagram 45281 45281 45281E 45281E 45281E 45281E 45298 45298 45895A 45895A 45895A 45895A 45895B 45895B 9016450048 9016450048 9331514012 9331514012
Part # Description Qty Price
45281 - HOUSING, STEERING COLUMN
45023-2490105

MZ2#..GTL

DARK BEIGE

 1
45023-2490005

MZ2#..GTL

DARK BEIGE

 1
45281 - HOUSING, STEERING COLUMN
45023-2490105

MZ2#..GTL

DARK BEIGE

 1
45023-2490005

MZ2#..GTL

DARK BEIGE

 1
45281E - PLATE, SAFETY CAUTION
45283-24020

MZ2#..GTL

 1
45281E - PLATE, SAFETY CAUTION
45283-24020

MZ2#..GTL

 1
45281E - PLATE, SAFETY CAUTION
45283-24020

MZ2#..GTL

 1
45281E - PLATE, SAFETY CAUTION
45283-24020

MZ2#..GTL

 1
45298 - PLUG, STEERING COLUMN COVER
45298-2401005

GZ20,MZ2#..GT,GTL,GTT,VX

BEIGE,DARK BEIGE,TRIM4#

 1
45298 - PLUG, STEERING COLUMN COVER
45298-2401005

GZ20,MZ2#..GT,GTL,GTT,VX

BEIGE,DARK BEIGE,TRIM4#

 1
45895A - PLATE, TILT STEERING CAUTION
45895-24040

MZ2#..GTL

 1
45895A - PLATE, TILT STEERING CAUTION
45895-24040

MZ2#..GTL

 1
45895A - PLATE, TILT STEERING CAUTION
45895-24040

MZ2#..GTL

 1
45895A - PLATE, TILT STEERING CAUTION
45895-24040

MZ2#..GTL

 1
45895B - PLATE, TILT LEVER INSTRUCTION
45895-24030

MZ2#..GTL

 1
45895B - PLATE, TILT LEVER INSTRUCTION
45895-24030

MZ2#..GTL

 1
Common parts
90164-50048
93315-14012
