MZ21-HCPZZ (1988)

Toyota Soarer

Production Jan 1988 - Apr 1991
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8801- )MZ2#..GTL

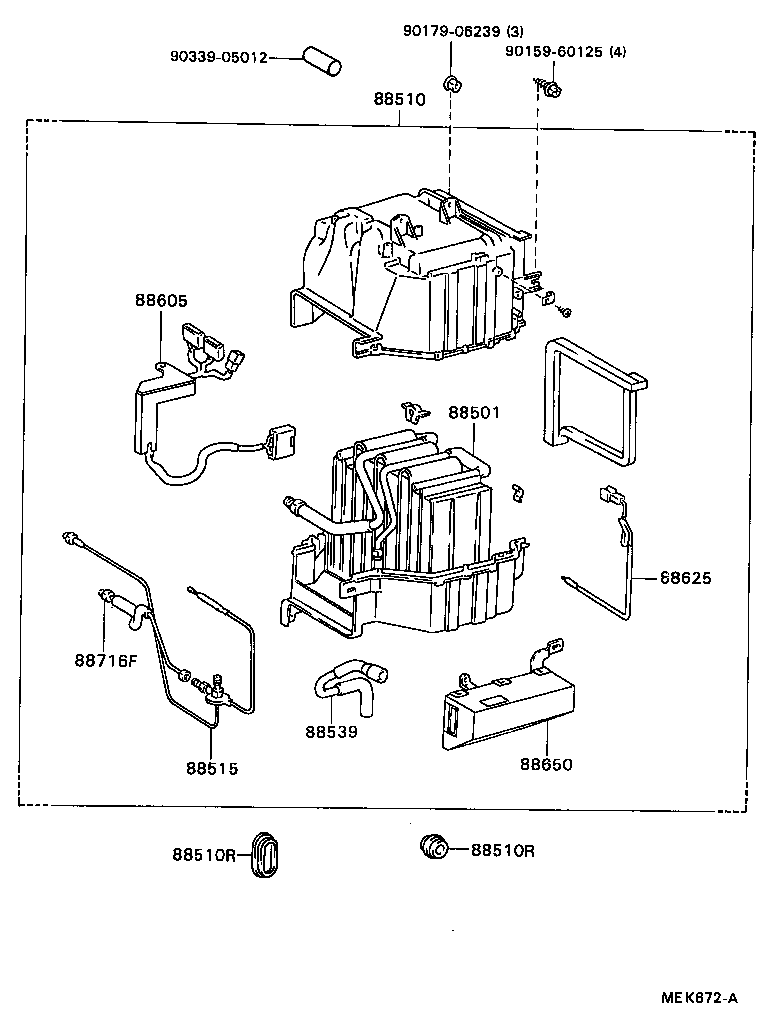

Click highlighted areas on diagram

W/CTR DISPLAY

diagram 88501 88510 88510R 88510R 88515 88539 88605 88625 88650 88716F 9015960125 9017906239 9033905012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-24040

GZ20,MZ2#

 1
88510 - UNIT ASSY, COOLER
88510-24110

MZ21

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26004

GZ20,MZ2#

DRAIN HOSE

 1
90480-24008

GZ20,MZ2#

PIPE

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26004

GZ20,MZ2#

DRAIN HOSE

 1
90480-24008

GZ20,MZ2#

PIPE

 1
88515 - VALVE, COOLER EXPANSION
88515-24010

GZ20,MZ2#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-24031

GZ20,MZ2#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-24180

MZ21

 1
88625 - THERMISTOR, COOLER, NO.1
88625-24050

GZ20,MZ2#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-24110

MZ21

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-24180

GZ20,MZ2#

 1
Common parts
90159-60125
90179-06239
90339-05012
