MZ21-HCPZZ (1988)
Toyota Soarer
Production
Jan 1988
-
Apr 1991
Engine
7MGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8801- )MZ21

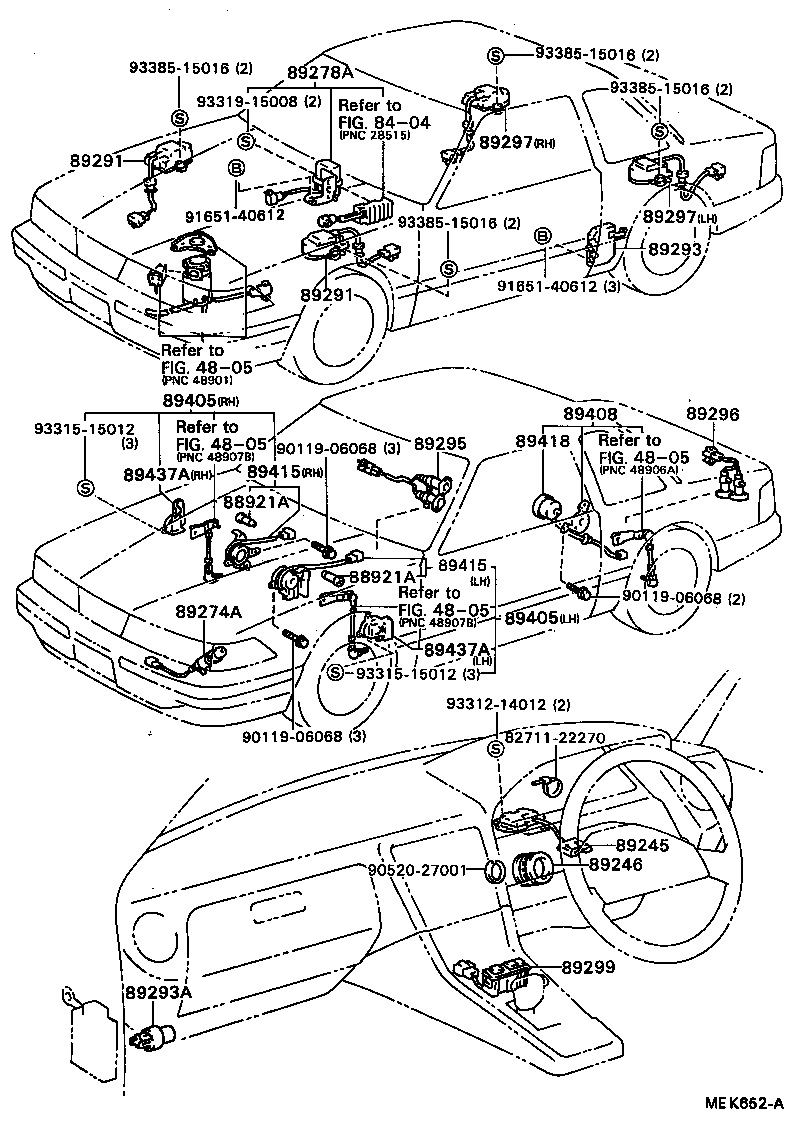

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88921A - FILTER, AIR | ||||
| 88921-24010 |
MZ21 |
2 | ||
| 88921A - FILTER, AIR | ||||
| 88921-24010 |
MZ21 |
2 | ||
| 89245 - SENSOR, STEERING | ||||
| 89245-24020 |
GZ20,MZ2#..CP..(GT,GTL) |
1 | ||
| 89246 - DISC, SENSOR STEERING | ||||
| 89246-22010 |
GZ20,MZ2#..CP..(GT,GTL) |
1 | ||
| 89274A - SOLENOID, AIR VALVE | ||||
| 89274-24010 |
MZ21 |
1 | ||
| 89274-24012 |
MZ21 |
1 | ||
| 89274-24011 |
MZ21 |
1 | ||
| 89278A - RELAY, HEIGHT CONTROL | ||||
| 89278-24010 |
MZ21 |
1 | ||
| 89291 - ACTUATOR, SUSPENSION CONTROL, FRONT | ||||
| 89291-24020 |
MZ21 |
2 | ||
| 89291 - ACTUATOR, SUSPENSION CONTROL, FRONT | ||||
| 89291-24020 |
MZ21 |
2 | ||
| 89293 - COMPUTER, SUSPENSION CONTROL | ||||
| 89293-24021 |
MZ21 |
1 | ||
| 89293-24020 |
MZ21 |
1 | ||
| 89293A - RELAY, SUSPENSION CONTROL | ||||
| 90987-02004 |
MZ21 |
1 | ||
| 89295 - SOLENOID, SUSPENSION CONTROL, FRONT | ||||
| 89295-24010 |
MZ21 |
1 | ||
| 89296 - SOLENOID, SUSPENSION CONTROL, REAR | ||||
| 89296-24010 |
MZ21 |
1 | ||
| 89297 - ACTUATOR, SUSPENSION CONTROL, REAR | ||||
| 89297-24020 |
MZ21 右側 |
1 | ||
| 89298-24020 |
MZ21 左側 |
1 | ||
| 89297 - ACTUATOR, SUSPENSION CONTROL, REAR | ||||
| 89297-24020 |
MZ21 右側 |
1 | ||
| 89298-24020 |
MZ21 左側 |
1 | ||
| 89299 - SWITCH, SUSPENSION CONTROL | ||||
| 89299-24010 |
MZ21 |
1 | ||
| 89405 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT | ||||
| 89406-24030 |
MZ21 左側 |
1 | ||
| 89405-24030 |
MZ21 右側 |
1 | ||
| 89405 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT | ||||
| 89406-24030 |
MZ21 左側 |
1 | ||
| 89405-24030 |
MZ21 右側 |
1 | ||
| 89408 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR | ||||
| 89408-24030 |
MZ21 |
1 | ||
| 89415 - SENSOR, HEIGHT CONTROL, FRONT | ||||
| 89415-24030 |
MZ21 右側 |
1 | ||
| 89416-24030 |
MZ21 左側 |
1 | ||
| 89415 - SENSOR, HEIGHT CONTROL, FRONT | ||||
| 89415-24030 |
MZ21 右側 |
1 | ||
| 89416-24030 |
MZ21 左側 |
1 | ||
| 89418 - SENSOR, HEIGHT CONTROL, REAR | ||||
| 89418-24030 |
MZ21 |
1 | ||
| 89437A - COVER, SENSOR | ||||
| 89437-24040 |
MZ21 右側 |
1 | ||
| 89437-24020 |
MZ21 左側 |
1 | ||
| 89437A - COVER, SENSOR | ||||
| 89437-24040 |
MZ21 右側 |
1 | ||
| 89437-24020 |
MZ21 左側 |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90119-06068 | ||||
| 90520-27001 | ||||
| 91651-40612 | ||||
| 93312-14012 | ||||
| 93315-15012 | ||||
| 93319-15008 | ||||
| 93385-15016 | ||||
| Linked diagrams | ||||
| 4805 | ||||
| 8404 | ||||
