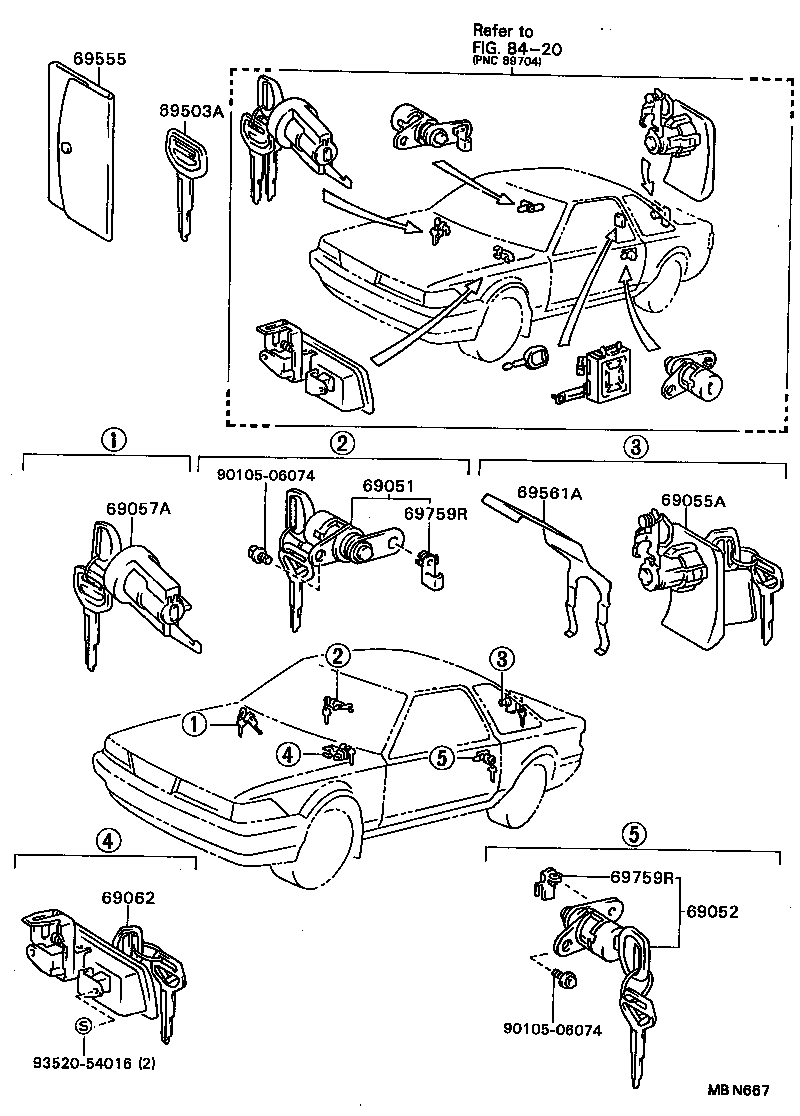

MZ21-HCPZZ (1988)
Toyota Soarer
(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-24021 |
GZ20,MZ2# |
1 | ||
| 69051-24020 |
MZ2# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-24021 |
GZ20,MZ2# |
1 | ||
| 69052-24020 |
MZ2# |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-24021 |
GZ20,MZ2# |
1 | ||
| 69055-24020 |
MZ2# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-24030 |
MZ2# |
1 | ||
| 69057-24031 |
GZ20,MZ2# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-2402004 |
MZ2# DARK BLUE,TRIM8# |
1 | ||
| 69056-2402015 |
MZ2# GREIGE,TRIM4# |
1 | ||
| 69056-2402105 |
GZ20,MZ2# GRAIGE,TRIM4# |
1 | ||
| 69056-2402104 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00099 |
GZ20,MZ2# ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00100 |
GZ20,MZ2# ｻﾌﾞｷｰ |
1 | ||
| 90999-00117 |
GZ20,MZ2# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00152 |
GZ20,MZ2# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00154 |
GZ20,MZ2# ｻﾌﾞｷｰ |
1 | ||
| 90999-00153 |
GZ20,MZ2# |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-24010 |
GZ20,MZ2# |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-24020 |
GZ20,MZ2# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24090 |
GZ20,MZ2# 左側 |
1 | ||
| 69759-24080 |
GZ20,MZ2# 右側 |
1 | ||
| 69759-24080 |
GZ20,MZ2# 右側 |
1 | ||
| 69759-24090 |
GZ20,MZ2# 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24090 |
GZ20,MZ2# 左側 |
1 | ||
| 69759-24080 |
GZ20,MZ2# 右側 |
1 | ||
| 69759-24080 |
GZ20,MZ2# 右側 |
1 | ||
| 69759-24090 |
GZ20,MZ2# 左側 |
1 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 93520-54016 | ||||
| Linked diagrams | ||||
| 8420 | ||||

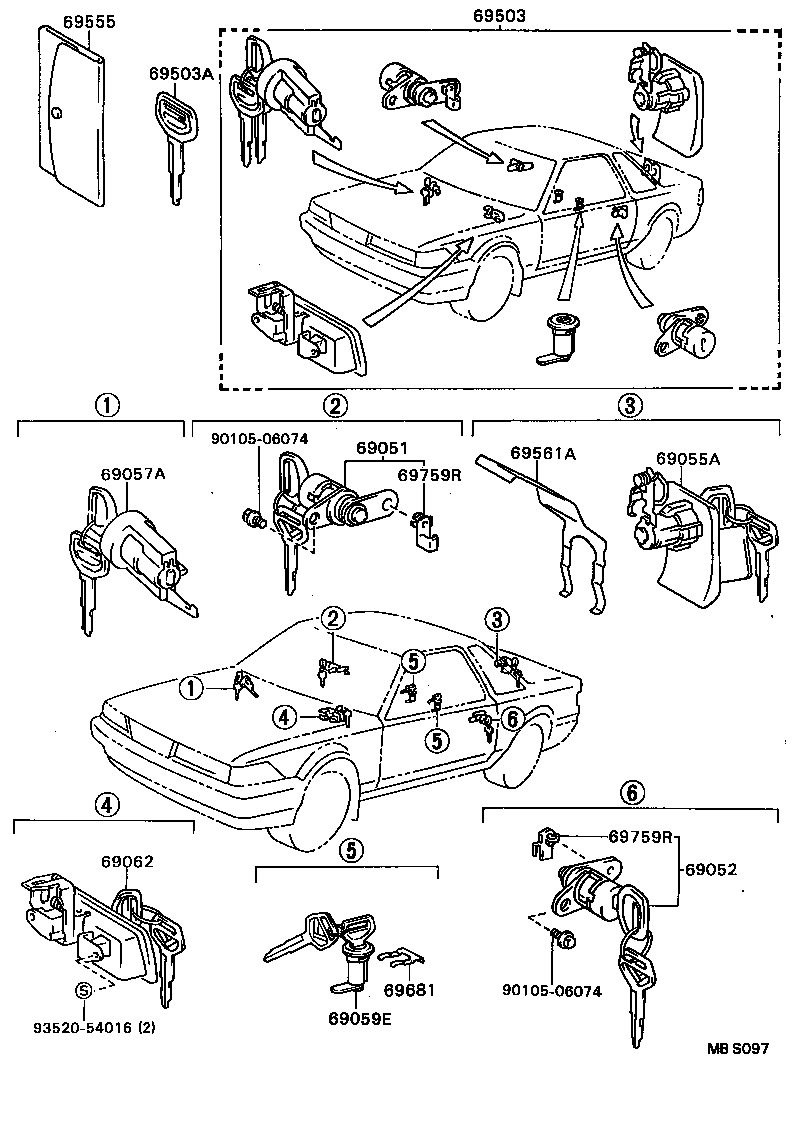

(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-24021 |
GZ20,MZ2# |
1 | ||
| 69051-24020 |
MZ2# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-24021 |
GZ20,MZ2# |
1 | ||
| 69052-24020 |
MZ2# |
1 | ||
| 69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-24021 |
GZ20,MZ2# |
1 | ||
| 69055-24020 |
MZ2# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-24030 |
MZ2# |
1 | ||
| 69057-24031 |
GZ20,MZ2# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-2402004 |
MZ2# DARK BLUE,TRIM8# |
1 | ||
| 69056-2402015 |
MZ2# GREIGE,TRIM4# |
1 | ||
| 69056-2402105 |
GZ20,MZ2# GRAIGE,TRIM4# |
1 | ||
| 69056-2402104 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-2403015 |
MZ2# GREIGE,TRIM4# |
1 | ||
| 69005-2403004 |
MZ2# DARK BLUE,TRIM8# |
1 | ||
| 69005-2403104 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 69005-2403105 |
GZ20,MZ2#..CP GRAIGE,TRIM4# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00099 |
GZ20,MZ2# ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00100 |
GZ20,MZ2# ｻﾌﾞｷｰ |
1 | ||
| 90999-00117 |
GZ20,MZ2# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00152 |
GZ20,MZ2# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00154 |
GZ20,MZ2# ｻﾌﾞｷｰ |
1 | ||
| 90999-00153 |
GZ20,MZ2# |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-24010 |
GZ20,MZ2# |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-24020 |
GZ20,MZ2# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24090 |
GZ20,MZ2# 左側 |
1 | ||
| 69759-24080 |
GZ20,MZ2# 右側 |
1 | ||
| 69759-24080 |
GZ20,MZ2# 右側 |
1 | ||
| 69759-24090 |
GZ20,MZ2# 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24090 |
GZ20,MZ2# 左側 |
1 | ||
| 69759-24080 |
GZ20,MZ2# 右側 |
1 | ||
| 69759-24080 |
GZ20,MZ2# 右側 |
1 | ||
| 69759-24090 |
GZ20,MZ2# 左側 |
1 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 93520-54016 | ||||
