MZ21-HCMZZ (1988)
Toyota Soarer

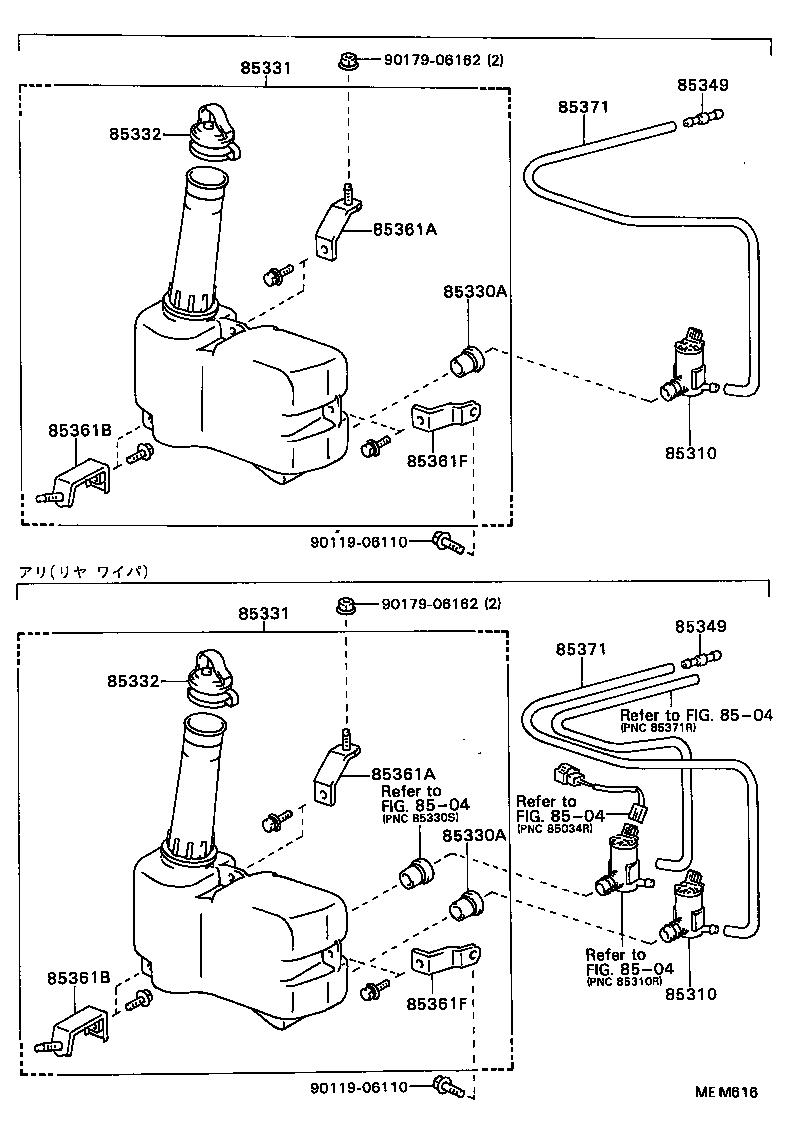

ILLUST NO. 1 OF 2(8801-8901)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
GZ20,MZ2#..TWC,TWT |
1 | ||
| 85310-22080 |
GZ20,MZ2# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
GZ20,MZ2#..TWC,TWT |
1 | ||
| 85310-22080 |
GZ20,MZ2# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GZ20,MZ2# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GZ20,MZ2# |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-14680 |
MZ2#..GTL |
1 | ||
| 85331-14700 |
MZ2#..GTL |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-14680 |
MZ2#..GTL |
1 | ||
| 85331-14700 |
MZ2#..GTL |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-32161 |
GZ20,MZ2# |
1 | ||
| 85332-20441 |
GZ20,MZ2# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-32161 |
GZ20,MZ2# |
1 | ||
| 85332-20441 |
GZ20,MZ2# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GZ20,MZ2# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GZ20,MZ2# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-14600 |
GZ20,MZ2# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-14600 |
GZ20,MZ2# |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85362-14600 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 85361F - BRACKET, WINDSHIELD WASHER, NO.3 | ||||
| 85363-14600 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90179-06162 | ||||
| Linked diagrams | ||||
| 8504 | ||||

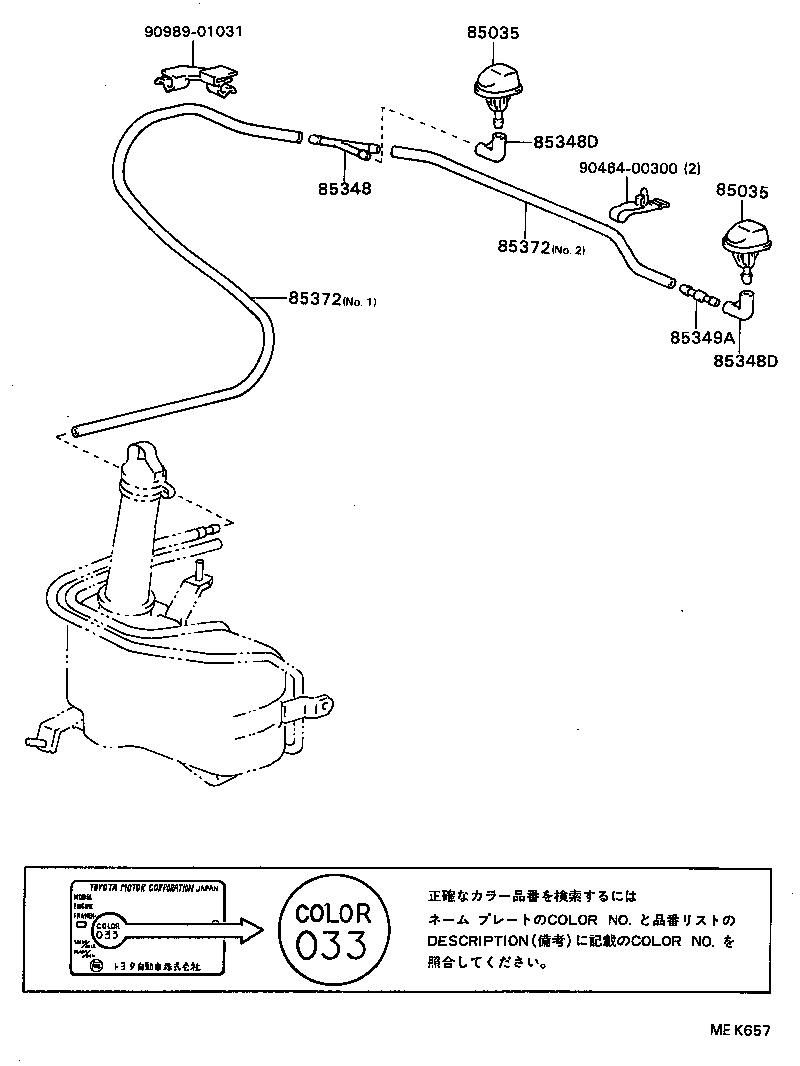

ILLUST NO. 2 OF 2(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2408008 |
GZ20,MZ2# SUPER WHITE 3,043,左側 |
1 | ||
| 85035-2408028 |
MZ2#..GTL;MZ20..AEC CRISTAL PEARL MICA,24H,左側 |
1 | ||
| 85035-2407008 |
GZ20,MZ2# SUPER WHITE 3,043,右側 |
1 | ||
| 85035-2407028 |
MZ2#..GTL;MZ20..AEC CRISTAL PEARL MICA,24H,右側 |
1 | ||
| 85035-2407058 |
GZ20,MZ2# SUPWE WHITE 4,050,右側 |
1 | ||
| 85035-2407007 |
GZ20,MZ2# LEAF SHADE TONNING,23R,右側 |
1 | ||
| 85035-2408007 |
GZ20,MZ2# LEAF SHADE TONNING,23R,左側 |
1 | ||
| 85035-2408058 |
GZ20,MZ2# SUPER WHITE 4,050,左側 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85035-2408008 |
GZ20,MZ2# SUPER WHITE 3,043,左側 |
1 | ||
| 85035-2408028 |
MZ2#..GTL;MZ20..AEC CRISTAL PEARL MICA,24H,左側 |
1 | ||
| 85035-2407008 |
GZ20,MZ2# SUPER WHITE 3,043,右側 |
1 | ||
| 85035-2407028 |
MZ2#..GTL;MZ20..AEC CRISTAL PEARL MICA,24H,右側 |
1 | ||
| 85035-2407058 |
GZ20,MZ2# SUPWE WHITE 4,050,右側 |
1 | ||
| 85035-2407007 |
GZ20,MZ2# LEAF SHADE TONNING,23R,右側 |
1 | ||
| 85035-2408007 |
GZ20,MZ2# LEAF SHADE TONNING,23R,左側 |
1 | ||
| 85035-2408058 |
GZ20,MZ2# SUPER WHITE 4,050,左側 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
GZ20,MZ2# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
GZ20,MZ2# |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
GZ20,MZ2# |
2 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GZ20,MZ2# |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GZ20,MZ2# *H,L=530,NO.2 |
1 | ||
| 90099-33080 |
GZ20,MZ2# *H,L=1370,NO.1 |
1 | ||
| 90099-33080 |
GZ20,MZ2# *H,L=535,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GZ20,MZ2# *H,L=530,NO.2 |
1 | ||
| 90099-33080 |
GZ20,MZ2# *H,L=1370,NO.1 |
1 | ||
| 90099-33080 |
GZ20,MZ2# *H,L=535,NO.2 |
1 | ||
| Common parts | ||||
| 90464-00300 | ||||
| 90989-01031 | ||||

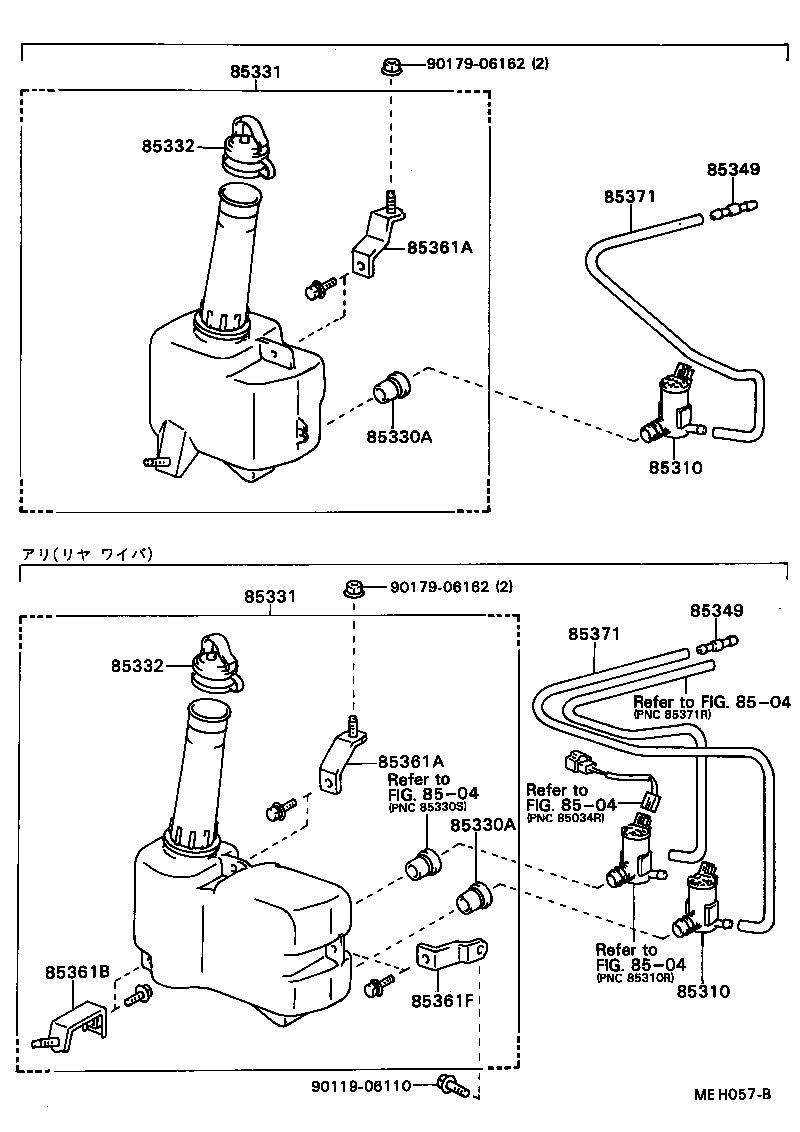

ILLUST NO. 1 OF 2(8901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
GZ20,MZ2#..TWC,TWT |
1 | ||
| 85310-22080 |
GZ20,MZ2# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22080 |
GZ20,MZ2#..TWC,TWT |
1 | ||
| 85310-22080 |
GZ20,MZ2# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GZ20,MZ2# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GZ20,MZ2# |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-14680 |
MZ2#..GTL |
1 | ||
| 85331-14700 |
MZ2#..GTL |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85331-14680 |
MZ2#..GTL |
1 | ||
| 85331-14700 |
MZ2#..GTL |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-32161 |
GZ20,MZ2# |
1 | ||
| 85332-20441 |
GZ20,MZ2# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85332-32161 |
GZ20,MZ2# |
1 | ||
| 85332-20441 |
GZ20,MZ2# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GZ20,MZ2# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GZ20,MZ2# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-14600 |
GZ20,MZ2# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85361-14600 |
GZ20,MZ2# |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85362-14600 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85362-14600 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 85361F - BRACKET, WINDSHIELD WASHER, NO.3 | ||||
| 85363-14600 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 85361F - BRACKET, WINDSHIELD WASHER, NO.3 | ||||
| 85363-14600 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90179-06162 | ||||
| Linked diagrams | ||||
| 8504 | ||||
