MZ21-HCMZZ (1988)

Toyota Soarer

Production Jan 1988 - Apr 1991
Engine 7MGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

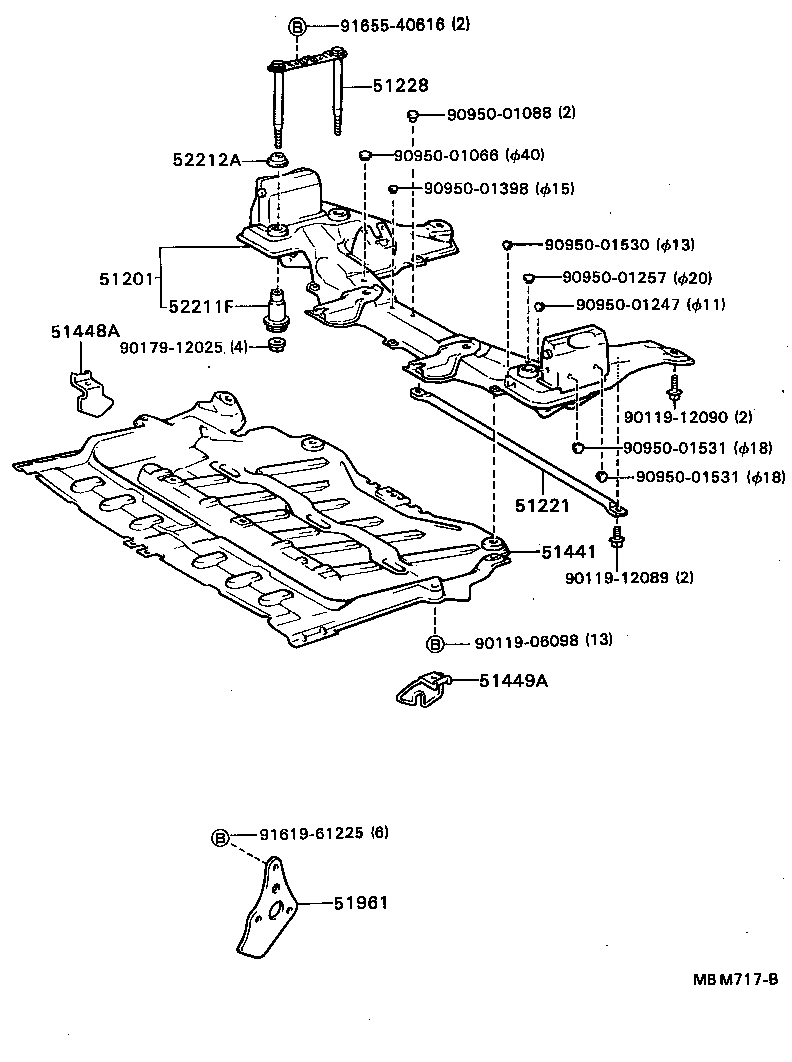

ILLUST NO. 1 OF 2(8801- )

Click highlighted areas on diagram

diagram 51201 51221 51228 51441 51448A 51449A 51961 52211F 52212A 9011906098 9011912089 9011912090 9017912025 9095001066 9095001088 9095001247 9095001257 9095001398 9095001530 9095001531 9095001531 9161961225 9165540616
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51210-14021

GZ20,MZ2#

 1
51210-14020

GZ20,MZ2#

 1
51221 - CROSSMEMBER, FRONT SUSPENSION, NO.1
51221-14012

GZ20,MZ2#

 1
51228 - PLATE, SUSPENSION MEMBER SET
51229-14040

GZ20,MZ2#

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-24020

GZ20,MZ2#

 1
51449A - COVER, ENGINE SIDE UNDER, LH
51449-14010

MZ2#;GZ20..GT,VX

 1
51961 - HOOK, NO.1
51963-14100

GZ20,MZ2#

 2
52211F - CUSHION, BODY MOUNTING, FRONT UPPER
52211-14010

GZ20,MZ2#

 4
52212A - CUSHION, BODY MOUNTING, NO.2
52212-14010

GZ20,MZ2#

 4
Common parts
90119-06098
90119-12089
90119-12090
90179-12025
90950-01066
90950-01088
90950-01247
90950-01257
90950-01398
90950-01530
90950-01531
91619-61225
91655-40616

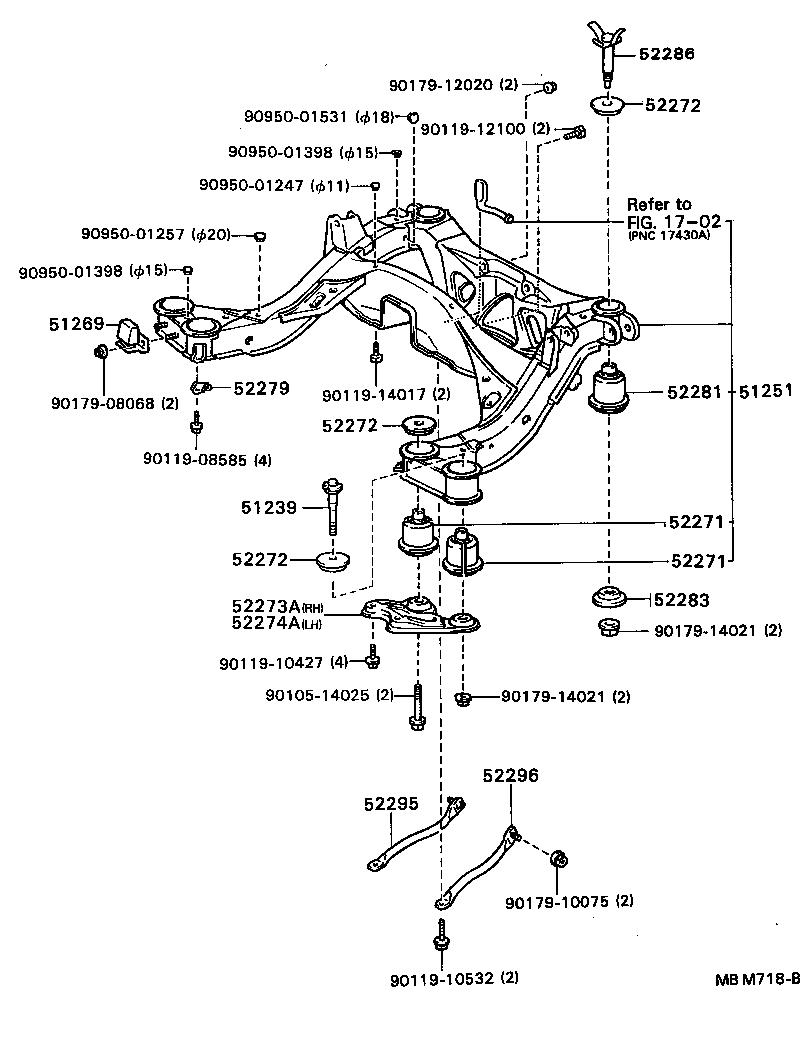

ILLUST NO. 2 OF 2(8801- )

Click highlighted areas on diagram

diagram 1702 51239 51251 51269 52271 52271 52272 52272 52272 52273A 52274A 52279 52281 52283 52286 52295 52296 9010514025 9011908585 9011910427 9011910532 9011912100 9011914017 9017908068 9017910075 9017912020 9017914021 9017914021 9095001247 9095001257 9095001398 9095001398 9095001531
Part # Description Qty Price
51239 - PLATE, REAR SUSPENSION MEMBER SET
51239-14010

GZ20,MZ2#

 2
51239-14010

GZ20,MZ2#

 2
51239-14010

MZ2#

 2
51251 - MEMBER SUB-ASSY, REAR SUSPENSION
51270-24011

MZ2#..CP

 1
51269 - DAMPER, DIFFERENTIAL SUPPORT MEMBER
51269-14010

MZ2#

 2
51269-14010

GZ20,MZ2#

 2
52271 - CUSHION, REAR SUSPENSION MEMBER
52271-14020

GZ20,MZ2#

内側

 2
52271-14020

GZ20,MZ2#

内側

 2
52271-24020

MZ2#..CP

外側

 2
52271-14020

MZ2#

内側

 2
52271 - CUSHION, REAR SUSPENSION MEMBER
52271-14020

GZ20,MZ2#

内側

 2
52271-14020

GZ20,MZ2#

内側

 2
52271-24020

MZ2#..CP

外側

 2
52271-14020

MZ2#

内側

 2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-14020

GZ20,MZ2#

 6
52272-14020

MZ2#

 6
52272-14020

GZ20,MZ2#

 6
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-14020

GZ20,MZ2#

 6
52272-14020

MZ2#

 6
52272-14020

GZ20,MZ2#

 6
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-14020

GZ20,MZ2#

 6
52272-14020

MZ2#

 6
52272-14020

GZ20,MZ2#

 6
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52203-14010

GZ20,MZ2#

 1
52273-14020

GZ20,MZ2#

 1
52273-14020

GZ20,MZ2#

 1
52273-14020

MZ2#

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52274-14010

MZ2#

 1
52274-14010

GZ20,MZ2#

 1
52274-14010

GZ20,MZ2#

 1
52204-14010

GZ20,MZ2#

 1
52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION
52279-14010

MZ2#

 4
52279-14010

GZ20,MZ2#

 4
52279-14010

GZ20,MZ2#

 4
52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER
52281-24010

MZ2#..CP

 2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-14020

GZ20,MZ2#

 2
52283-14020

MZ2#

 2
52283-14020

GZ20,MZ2#

 2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-14020

GZ20,MZ2#

 2
52286-14020

MZ2#

 2
52286-14021

GZ20,MZ2#

 2
52286-14020

GZ20,MZ2#

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-24010

MZ2#

 1
52295-24010

GZ20,MZ2#

 1
52295-24010

GZ20,MZ2#

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52296-24010

MZ2#

 1
52296-24010

GZ20,MZ2#

 1
52296-24010

GZ20,MZ2#

 1
Common parts
90105-14025
90119-08585
90119-10427
90119-10532
90119-12100
90119-14017
90179-08068
90179-10075
90179-12020
90179-14021
90950-01247
90950-01257
90950-01398
90950-01531
Linked diagrams
1702
