MZ20-HCPZZ (1986)
Toyota Soarer

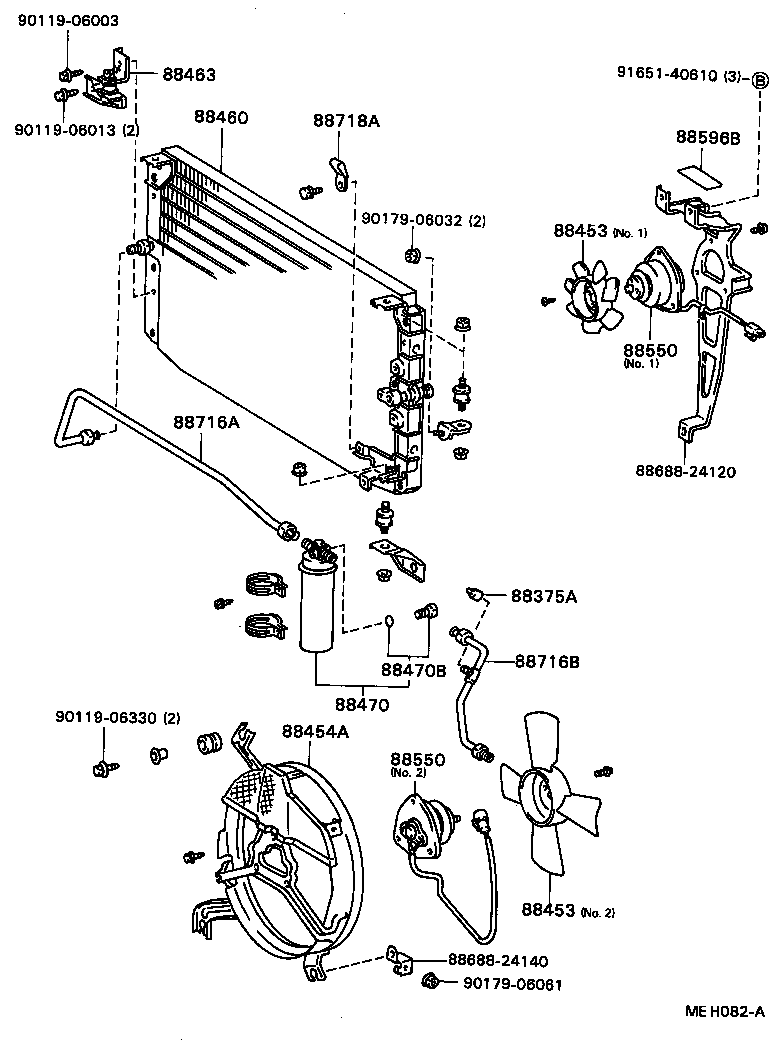

ILLUST NO. 1 OF 2(8601- )MZ2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
GZ20,MZ2#..GT,GTL,GTT,VX |
2 | ||
| 88375-20010 |
GZ20,MZ2#..GT,GTL,GTT,VX |
2 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-28010 |
MZ2# NO.2 |
1 | ||
| 88453-12030 |
MZ2# NO.2 |
1 | ||
| 88453-12040 |
GZ20,MZ2# NO.1 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-28010 |
MZ2# NO.2 |
1 | ||
| 88453-12030 |
MZ2# NO.2 |
1 | ||
| 88453-12040 |
GZ20,MZ2# NO.1 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-24010 |
MZ2# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-24050 |
MZ2# |
1 | ||
| 88460-24051 |
MZ2# |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-24040 |
GZ20,MZ2#..GT,GTL,GTT,VX |
1 | ||
| 88463-14070 |
GZ20,MZ2#..GT,GTL,GTT,VX |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95401 |
GZ20,MZ2# |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
GZ20,MZ2# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-24040 |
MZ2# NO.1 |
1 | ||
| 88550-12090 |
MZ2# NO.2 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-24040 |
MZ2# NO.1 |
1 | ||
| 88550-12090 |
MZ2# NO.2 |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
GZ20,MZ2# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-24151 |
MZ2# |
1 | ||
| 88716-24150 |
MZ2# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-24160 |
MZ2# |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-12280 |
GZ20,MZ2# |
1 | ||
| Common parts | ||||
| 88688-24120 | ||||
| 88688-24140 | ||||
| 90119-06003 | ||||
| 90119-06013 | ||||
| 90119-06330 | ||||
| 90179-06032 | ||||
| 90179-06061 | ||||
| 91651-40610 | ||||

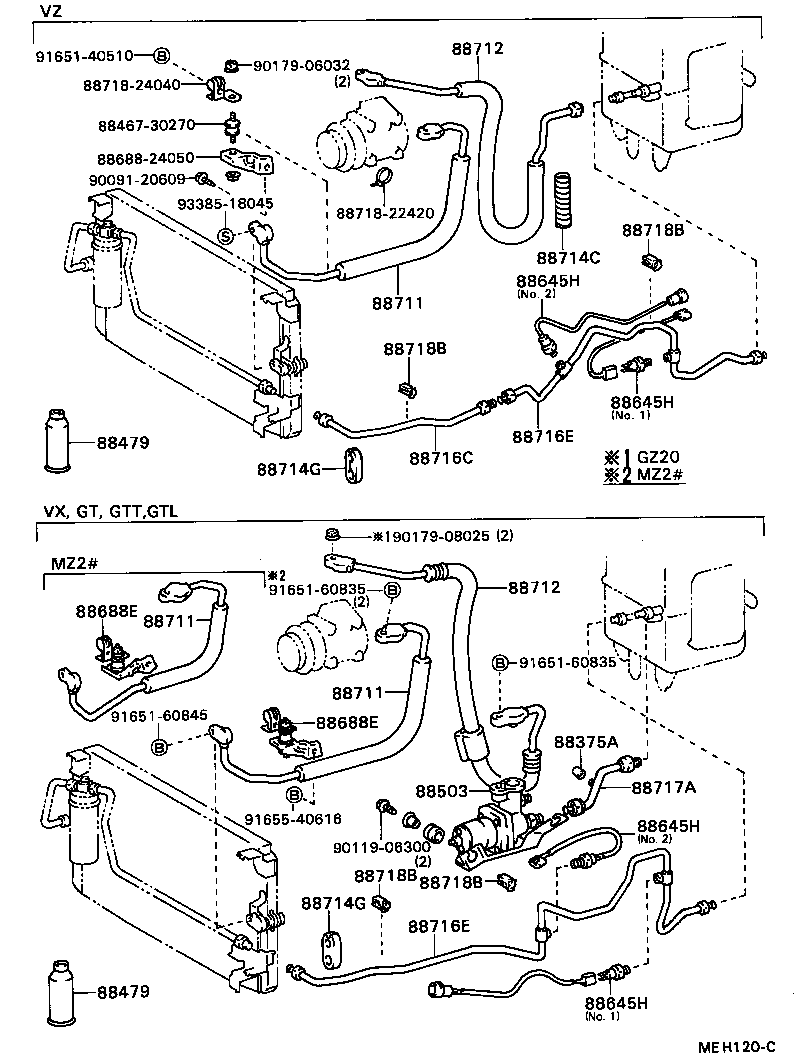

ILLUST NO. 2 OF 2(8601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
GZ20,MZ2#..GT,GTL,GTT,VX |
2 | ||
| 88375-20010 |
GZ20,MZ2#..GT,GTL,GTT,VX |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
GZ20,MZ2# 400G |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
GZ20,MZ2# 400G |
2 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-24020 |
GZ20,MZ2#..GT,GTL,GTT,VX |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-24030 |
GZ20,MZ2# NO.2 |
1 | ||
| 88645-10020 |
GZ20,MZ2# NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-24030 |
GZ20,MZ2# NO.2 |
1 | ||
| 88645-10020 |
GZ20,MZ2# NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-24030 |
GZ20,MZ2# NO.2 |
1 | ||
| 88645-10020 |
GZ20,MZ2# NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-24030 |
GZ20,MZ2# NO.2 |
1 | ||
| 88645-10020 |
GZ20,MZ2# NO.1 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-24040 |
MZ2# |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-24040 |
MZ2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-24070 |
MZ2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-24070 |
MZ2# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-24070 |
MZ2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1B080 |
MZ2# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1B080 |
MZ2# |
1 | ||
| 88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88467-24030 |
GZ20,MZ2# |
1 | ||
| 88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88467-24030 |
GZ20,MZ2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-24140 |
MZ2# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-24140 |
MZ2# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-24020 |
GZ20,MZ2#..GT,GTL,GTT,VX |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-24030 |
GZ20,MZ2# |
2 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-24030 |
GZ20,MZ2# |
2 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-24030 |
GZ20,MZ2# |
2 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-24030 |
GZ20,MZ2# |
2 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88688-24050 | ||||
| 88718-22420 | ||||
| 88718-24040 | ||||
| 90091-20609 | ||||
| 90119-06300 | ||||
| 90179-06032 | ||||
| 90179-08025 | ||||
| 91651-40510 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 91655-40616 | ||||
| 93385-18045 | ||||
