MZ20-HCPZZ (1986)

Toyota Soarer

Production Jan 1986 - Jan 1988
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

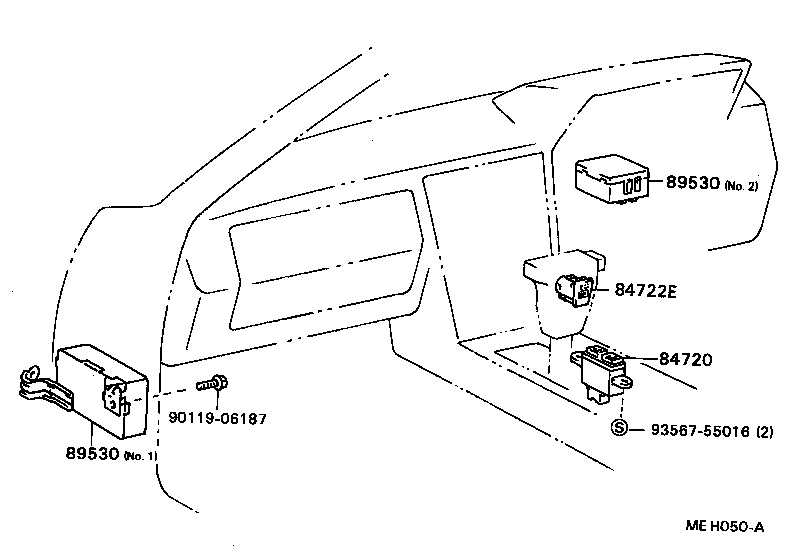

ILLUST NO. 1 OF 2(8601- )4FC..GT,GTL,GTT

Click highlighted areas on diagram

diagram 84720 84722E 89530 89530 9011906187 9356755016
Part # Description Qty Price
84720 - SWITCH ASSY, PATTERN SELECT
84720-24020

GZ20,MZ2#..4FC..(GT,GTL,GTT)

 1
84722E - SWITCH, TRANSMISSION CONTROL
84722-2403001

GZ20,MZ2#..4FC..(GT,GTL,GTT)

BLACK,TRIM2#

 1
84722-2403005

GZ20,MZ2#..4FC..(GT,GTL,GTT)

BEIGE,TRIM4#

 1
84722-2403006

GZ20,MZ2#..4FC..(GT,GTL,GTT)

BROWN,TRIM4#

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-24220

MZ2#..4FC

NO.1

 1
89530-24280

MZ2#

NO.2

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-24220

MZ2#..4FC

NO.1

 1
89530-24280

MZ2#

NO.2

 1
Common parts
90119-06187
93567-55016

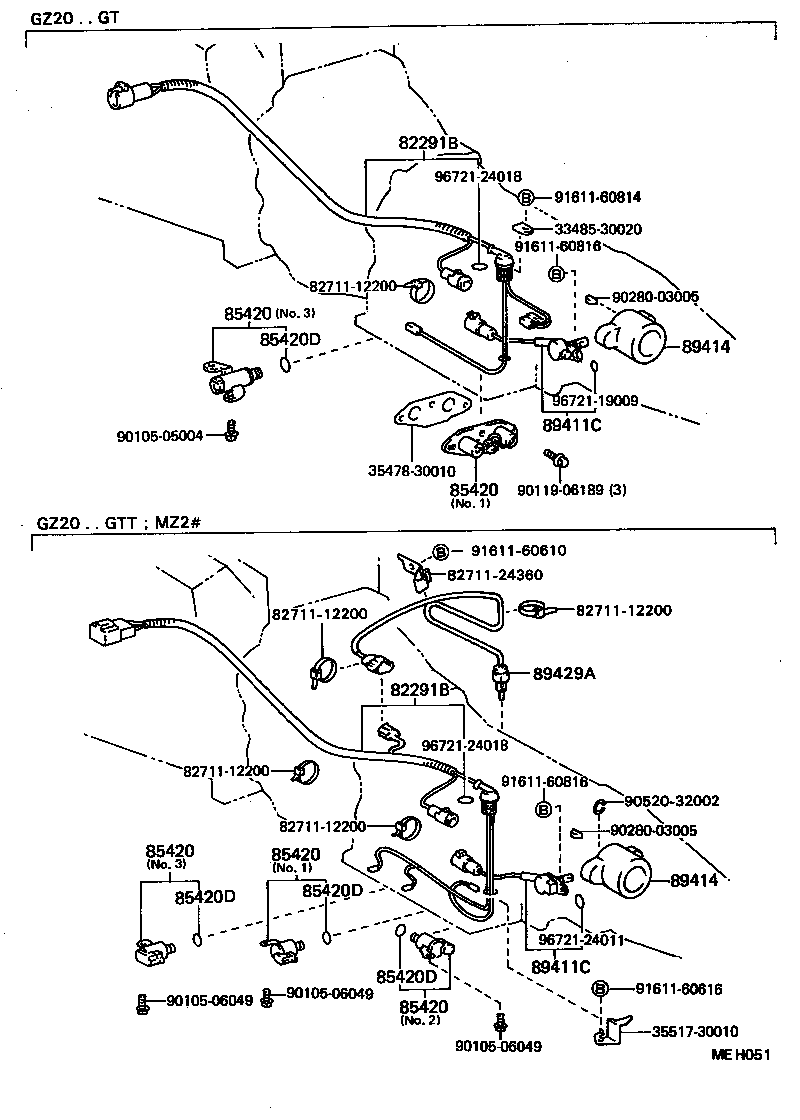

ILLUST NO. 2 OF 2(8601- )4FC..GT,GTL,GTT

Click highlighted areas on diagram

diagram 3348530020 3547830010 3551730010 82291B 82291B 8271112200 8271112200 8271112200 8271112200 8271112200 8271124360 85420 85420 85420 85420 85420 85420D 85420D 85420D 85420D 89411C 89411C 89414 89414 89429A 9010505004 9010506049 9010506049 9010506049 9011906189 9028003005 9028003005 9052032002 9161160610 9161160616 9161160814 9161160816 9161160816 9672119009 9672124011 9672124018 9672124018
Part # Description Qty Price
82291B - WIRE, TO SOLENOID (FOR TRANSMISSION)
82125-24040

MZ20..GT

W/O ESC

 1
82291B - WIRE, TO SOLENOID (FOR TRANSMISSION)
82125-24040

MZ20..GT

W/O ESC

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-22080

MZ2#..4FC

NO.1,NO.2

 2
85420-30120

MZ2#..4FC

NO.3,DENSO

 1
85420-12020

MZ2#..4FC

NO.1,NO.2

 2
85420-30110

MZ2#..4FC

NO.3,AISIN

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-22080

MZ2#..4FC

NO.1,NO.2

 2
85420-30120

MZ2#..4FC

NO.3,DENSO

 1
85420-12020

MZ2#..4FC

NO.1,NO.2

 2
85420-30110

MZ2#..4FC

NO.3,AISIN

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-22080

MZ2#..4FC

NO.1,NO.2

 2
85420-30120

MZ2#..4FC

NO.3,DENSO

 1
85420-12020

MZ2#..4FC

NO.1,NO.2

 2
85420-30110

MZ2#..4FC

NO.3,AISIN

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-22080

MZ2#..4FC

NO.1,NO.2

 2
85420-30120

MZ2#..4FC

NO.3,DENSO

 1
85420-12020

MZ2#..4FC

NO.1,NO.2

 2
85420-30110

MZ2#..4FC

NO.3,AISIN

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-22080

MZ2#..4FC

NO.1,NO.2

 2
85420-30120

MZ2#..4FC

NO.3,DENSO

 1
85420-12020

MZ2#..4FC

NO.1,NO.2

 2
85420-30110

MZ2#..4FC

NO.3,AISIN

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GZ20,MZ2#..4FC..(GT,GTL,GTT)

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GZ20,MZ2#..4FC..(GT,GTL,GTT)

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GZ20,MZ2#..4FC..(GT,GTL,GTT)

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

GZ20,MZ2#..4FC..(GT,GTL,GTT)

 3
89411C - SENSOR, SPEED
89411-30090

MZ20..GT

W/O ESC

 1
89411-22060

MZ20..4FC..GT

W/O ESC

 1
89411C - SENSOR, SPEED
89411-30090

MZ20..GT

W/O ESC

 1
89411-22060

MZ20..4FC..GT

W/O ESC

 1
89414 - ROTOR, SENSOR
89414-30020

MZ20..4FC..GT

W/O ESC

 1
89414 - ROTOR, SENSOR
89414-30020

MZ20..4FC..GT

W/O ESC

 1
89429A - SENSOR, TEMPERATURE
89429-24010

MZ2#

 1
Common parts
33485-30020
35478-30010
35517-30010
82711-12200
82711-24360
90105-05004
90105-06049
90119-06189
90280-03005
90520-32002
91611-60610
91611-60616
91611-60814
91611-60816
96721-19009
96721-24011
96721-24018
