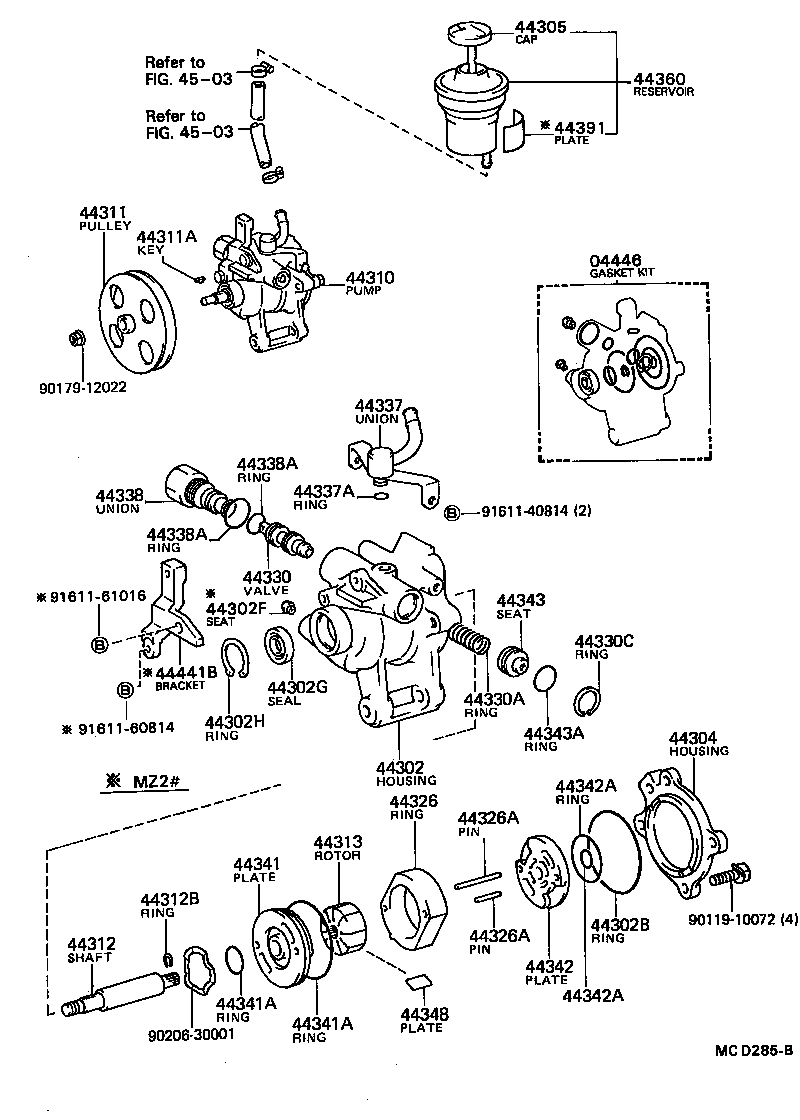

MZ20-HCPZZ (1986)
Toyota Soarer
(8601- )GT,GTL,GTT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-22040 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-14020 |
MZ2# |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-63002 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18008 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-32001 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-14050 |
MZ2# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
MZ2# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-24030 |
MZ2# |
1 | ||
| 44320-14220 |
MZ2# |
1 | ||
| 44320-24031 |
MZ2# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-14050 |
MZ2# |
1 | ||
| 44311-24030 |
MZ2# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GZ20,MZ2# |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12020 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GZ20,MZ2# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12050 |
GZ20,MZ2# ﾏｰｸ 4,MARK 4 |
1 | ||
| 44313-12010 |
GZ20,MZ2# ﾏｰｸ無し,NO MARK |
1 | ||
| 44313-12020 |
GZ20,MZ2# ﾏｰｸ 1,MARK 1 |
1 | ||
| 44313-12040 |
GZ20,MZ2# ﾏｰｸ 3,MARK 3 |
1 | ||
| 44313-32010 |
MZ2# ﾏｰｸ無し,NO MARK |
1 | ||
| 44313-32050 |
MZ2# ﾏｰｸ 4,MARK 4 |
1 | ||
| 44313-12030 |
GZ20,MZ2# ﾏｰｸ 2,MARK 2 |
1 | ||
| 44313-32020 |
MZ2# ﾏｰｸ 1,MARK 1 |
1 | ||
| 44313-32040 |
MZ2# ﾏｰｸ 3,MARK 3 |
1 | ||
| 44313-32030 |
MZ2# ﾏｰｸ 2,MARK 2 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12030 |
MZ2# ﾏｰｸ 2,MARK 2 |
1 | ||
| 44325-12040 |
MZ2# ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-12020 |
MZ2# ﾏｰｸ 1,MARK 1 |
1 | ||
| 44325-12050 |
MZ2# ﾏｰｸ 4,MARK 4 |
1 | ||
| 44325-12010 |
MZ2# ﾏｰｸ無し,NO MARK |
1 | ||
| 44325-30170 |
MZ2# ﾏｰｸ 2,MARK 2 |
1 | ||
| 44325-30180 |
MZ2# ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-30150 |
MZ2# ﾏｰｸ無し,NO MARK |
1 | ||
| 44325-30160 |
MZ2# ﾏｰｸ 1,MARK 1 |
1 | ||
| 44325-30190 |
MZ2# ﾏｰｸ 4,MARK 4 |
1 | ||
| 44325-22030 |
MZ2# ﾏｰｸ 1,MARK 1 |
1 | ||
| 44325-22050 |
MZ2# ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-22020 |
MZ2# ﾏｰｸ無し,NO MARK |
1 | ||
| 44325-22060 |
MZ2# ﾏｰｸ 4,MARK 4 |
1 | ||
| 44325-22040 |
MZ2# ﾏｰｸ 2,MARK 2 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05017 |
GZ20,MZ2#..GT,GTL,GTT 長さ=43.5,外径=5.0,L=43.5 |
1 | ||
| 90250-05008 |
GZ20,MZ2#..GT,GTL,GTT 長さ=25,外径=5.0,L=25.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05017 |
GZ20,MZ2#..GT,GTL,GTT 長さ=43.5,外径=5.0,L=43.5 |
1 | ||
| 90250-05008 |
GZ20,MZ2#..GT,GTL,GTT 長さ=25,外径=5.0,L=25.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-30150 |
GZ20,MZ2# ﾏｰｸ F,MARK F |
1 | ||
| 44330-30120 |
GZ20,MZ2# ﾏｰｸ C,MARK C |
1 | ||
| 44330-30100 |
GZ20,MZ2# ﾏｰｸ A,MARK A |
1 | ||
| 44330-30110 |
GZ20,MZ2# ﾏｰｸ B,MARK B |
1 | ||
| 44330-30130 |
GZ20,MZ2# ﾏｰｸ D,MARK D |
1 | ||
| 44330-30140 |
GZ20,MZ2# ﾏｰｸ E,MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
MZ2# |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-02200 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-14020 |
MZ2# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-24010 |
MZ2# |
1 | ||
| 44308-35030 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
GZ20,MZ2#..GT,GTL,GTT 外径=17.0,内径=13.0,OD=17.0 |
1 | ||
| 90301-22001 |
GZ20,MZ2#..GT,GTL,GTT 外径=25.5,内径=22.5,OD=25.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
GZ20,MZ2#..GT,GTL,GTT 外径=17.0,内径=13.0,OD=17.0 |
1 | ||
| 90301-22001 |
GZ20,MZ2#..GT,GTL,GTT 外径=25.5,内径=22.5,OD=25.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30030 |
MZ2# |
1 | ||
| 44341-12020 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
GZ20,MZ2#..GT,GTL,GTT INNER |
1 | ||
| 90301-56002 |
GZ20,MZ2#..GT,GTL,GTT OUTER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
GZ20,MZ2#..GT,GTL,GTT INNER |
1 | ||
| 90301-56002 |
GZ20,MZ2#..GT,GTL,GTT OUTER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-22010 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44342-30020 |
MZ2# |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-30004 |
GZ20,MZ2#..GT,GTL,GTT OUTER |
1 | ||
| 90301-13004 |
GZ20,MZ2#..GT,GTL,GTT INNER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-30004 |
GZ20,MZ2#..GT,GTL,GTT OUTER |
1 | ||
| 90301-13004 |
GZ20,MZ2#..GT,GTL,GTT INNER |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12030 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19019 |
GZ20,MZ2#..GT,GTL,GTT |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12020 |
GZ20,MZ2# 長さ=14.995,ROTOR MARK1 |
10 | ||
| 44345-12050 |
GZ20,MZ2# 長さ=14.989,ROTOR MARK4 |
10 | ||
| 44345-12030 |
GZ20,MZ2# 長さ=14.993,ROTOR MARK2 |
10 | ||
| 44345-12040 |
GZ20,MZ2# 長さ=14.991,ROTOR MARK3 |
10 | ||
| 44345-12010 |
GZ20,MZ2# 長さ=14.997,ROTOR NO MARK |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-14090 |
MZ2# |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-14010 |
MZ2# |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-14050 |
MZ2# |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90179-12022 | ||||
| 90206-30001 | ||||
| 91611-40814 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||
| Linked diagrams | ||||
| 4503 | ||||
