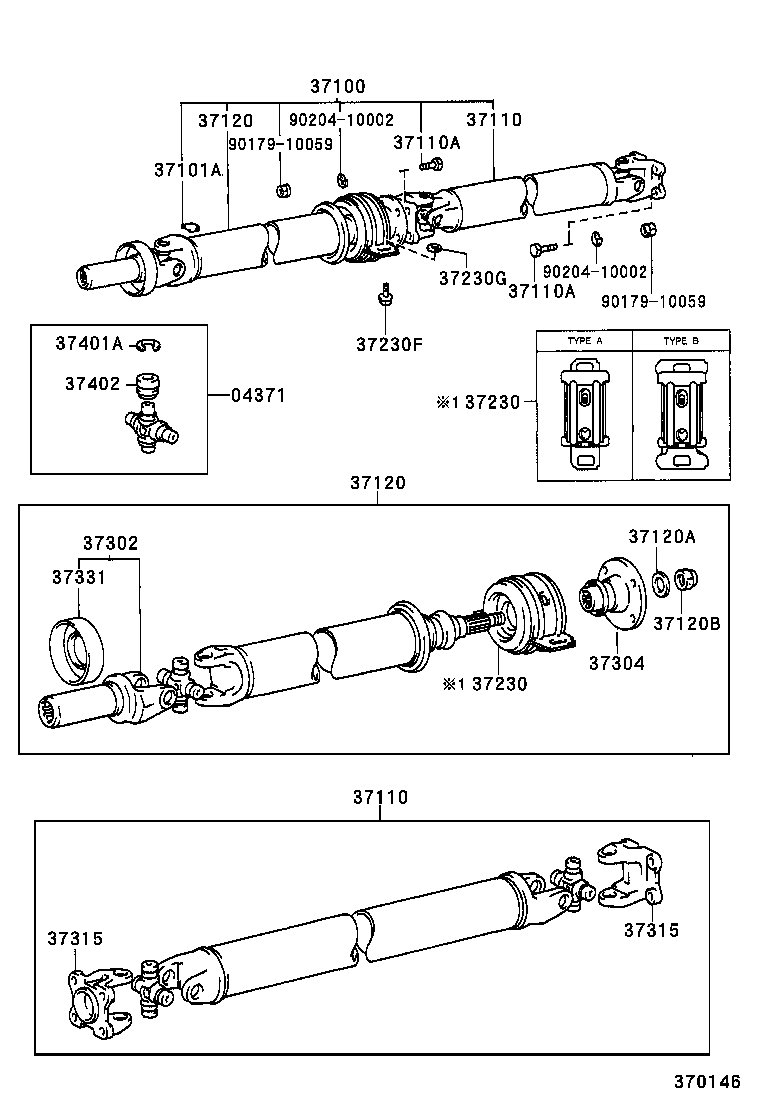

MZ20-HCPZZ (1986)
Toyota Soarer
(8601- )MZ20 ; (8601- )GZ20,MZ21..GTL,GTT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-30020 |
MZ2# |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-24220 |
MZ2#..4FC |
1 | ||
| 37100-24260 |
MZ2#..4FC |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01153 |
GZ20,MZ2# 16G,長さ=33.2,16G |
1 | ||
| 90937-01136 |
GZ20,MZ2# 20G,長さ=41.4,20G |
1 | ||
| 90937-01157 |
GZ20,MZ2# 26G,長さ=53.9,26G |
1 | ||
| 90937-01147 |
GZ20,MZ2# 2G,厚さ=2.0,2G |
1 | ||
| 90937-01154 |
GZ20,MZ2# 18G,長さ=37.3,18G |
1 | ||
| 90937-01152 |
GZ20,MZ2# 14G,長さ=29.0,14G |
1 | ||
| 90937-01311 |
GZ20,MZ2# 3G,3G |
1 | ||
| 90937-01150 |
GZ20,MZ2# 8G,長さ=16.6,8G |
1 | ||
| 90937-01140 |
GZ20,MZ2# 30G,長さ=62.2,30G |
1 | ||
| 90937-01155 |
GZ20,MZ2# 22G,長さ=45.6,22G |
1 | ||
| 90937-01132 |
GZ20,MZ2# 10G,長さ=20.7,10G |
1 | ||
| 90937-01149 |
GZ20,MZ2# 6G,長さ=12.4,6G |
1 | ||
| 90937-01314 |
GZ20,MZ2# 9G,長さ=18.5,9G |
1 | ||
| 90937-01156 |
GZ20,MZ2# 24G,長さ=49.7,24G |
1 | ||
| 90937-01148 |
GZ20,MZ2# 4G,厚さ=2.0,4G |
1 | ||
| 90937-01158 |
GZ20,MZ2# 28G,長さ=58.1,8G |
1 | ||
| 90937-01313 |
GZ20,MZ2# 7G,長さ=14.4,7G |
1 | ||
| 90937-01151 |
GZ20,MZ2# 12G,長さ=24.9,12G |
1 | ||
| 90937-01312 |
GZ20,MZ2# 5G,5G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-24100 |
MZ2# |
1 | ||
| 37110-24120 |
MZ2# |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-24100 |
MZ2# |
1 | ||
| 37110-24120 |
MZ2# |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
MZ2# *10−1.00PX27−13 |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
MZ2# *10−1.00PX27−13 |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-14310 |
MZ2#..4FC |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-14310 |
MZ2#..4FC |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-26005 |
GZ20,MZ2# 外径=36.6,厚さ=0.8,T=0.8 |
1 | ||
| 90201-18182 |
GZ20,MZ2# 外径=33.5,厚さ=4.0,T=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
GZ20,MZ2# |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-14061 |
GZ20,MZ2# TYPE A |
1 | ||
| 37230-14070 |
MZ2# |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-14061 |
GZ20,MZ2# TYPE A |
1 | ||
| 37230-14070 |
MZ2# |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
GZ20,MZ2# |
2 | ||
| 90119-10217 |
MZ2# 長さ=40,L=40 |
2 | ||
| 90119-10482 |
MZ2# 長さ=33,L=33 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10035 |
GZ20,MZ2# 厚さ=13.5,T=13.5 |
2 | ||
| 90201-10008 |
GZ20,MZ2# 厚さ=4.5,T=4.5 |
2 | ||
| 90201-10017 |
GZ20,MZ2# 厚さ=9.0,T=9.0 |
2 | ||
| 90201-10033 |
GZ20,MZ2# 厚さ=6.5,T=6.5 |
2 | ||
| 90201-10034 |
GZ20,MZ2# 厚さ=11.0,T=11.0 |
2 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-30030 |
MZ2# |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
MZ2# |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
MZ2# |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
MZ2# |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-24010 |
MZ2# ID=43 |
1 | ||
| 37331-40010 |
MZ2# ID=42 |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26233 |
MZ2# 厚さ=1.50,外径=32.4,T=1.50 |
4 | ||
| 90520-26234 |
MZ2# 厚さ=1.55,T=1.55 |
4 | ||
| 90520-26235 |
MZ2# 厚さ=1.60,T=1.60 |
4 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30010 |
MZ2# |
12 | ||
| 37402-30020 |
MZ2# RED PAINTED |
12 | ||
| Common parts | ||||
| 90179-10059 | ||||
| 90204-10002 | ||||
