MZ20-HCPZZ (1988)

Toyota Soarer

Production Jan 1988 - Apr 1991
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8801- )MZ2#

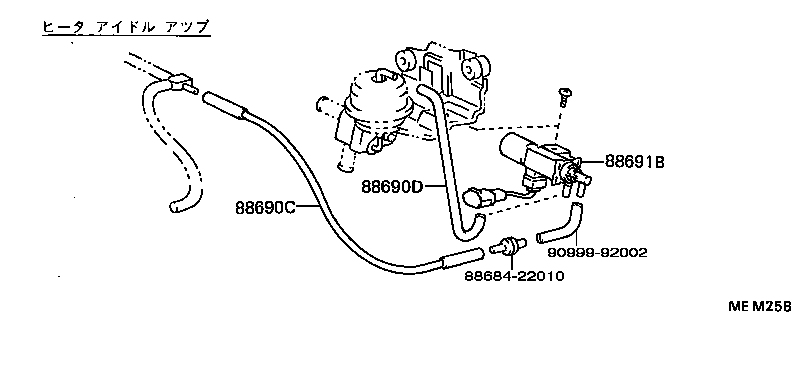

Click highlighted areas on diagram

diagram 8868422010 88690C 88690D 88691B 9099992002
Part # Description Qty Price
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
90447-04056

MZ2#

 1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
90999-92002

GZ20,MZ2#

*H,L=300

 1
88691B - VALVE, MAGNET (FOR WATER VALVE)
88690-24050

GZ20,MZ2#

 1
Common parts
88684-22010
90999-92002
