MZ20-HCPZZ (1988)
Toyota Soarer
Production
Jan 1988
-
Apr 1991
Engine
7MGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8801- )MZ2#..GTL

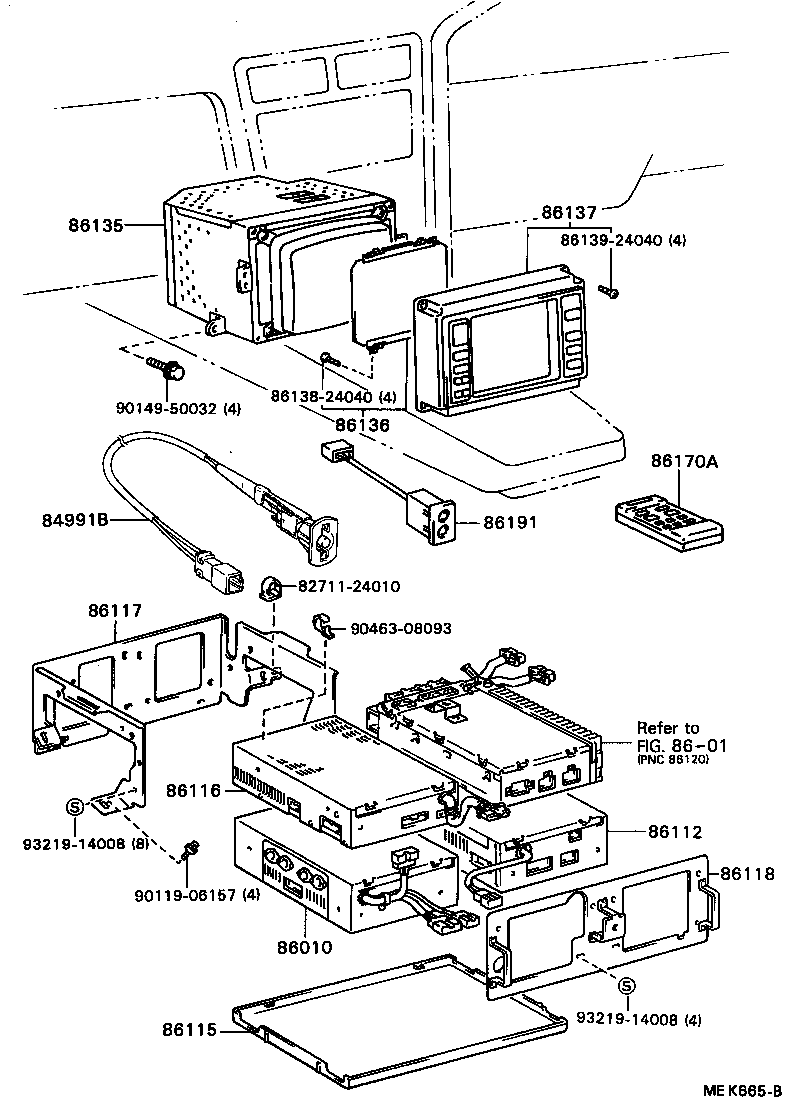

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84991B - SWITCH, VIDEO | ||||
| 84991-24010 |
MZ2#..GTL |
1 | ||
| 86010 - TUNER ASSY, TELEVISION | ||||
| 86010-24040 |
MZ2#..GTL |
1 | ||
| 86112 - COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY) | ||||
| 86112-24050 |
MZ2#..GTL |
1 | ||
| 86112-24060 |
MZ2#..GTL |
1 | ||
| 86115 - TRAY, MULTI-DISPLAY COMPUTER | ||||
| 86115-24020 |
MZ2#..GTL |
1 | ||
| 86116 - CONTROLLER, VIDEO | ||||
| 86116-24020 |
MZ2#..GTL |
1 | ||
| 86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A | ||||
| 86117-24050 |
MZ2#..GTL |
1 | ||
| 86117-24040 |
MZ2#..GTL |
1 | ||
| 86118 - BRACKET, MULTI-DISPLAY CONTROLER, B | ||||
| 86118-24040 |
MZ2#..GTL |
1 | ||
| 86118-24040 |
MZ2#..GTL |
1 | ||
| 86135 - MULTI-DISPLAY (CRT DISPLAY) | ||||
| 86135-24030 |
MZ2#..GTL |
1 | ||
| 86136 - FILTER, MULTI-DISPLAY | ||||
| 86136-24030 |
MZ2#..GTL |
1 | ||
| 86137 - PANEL, MULTI-DISPLAY | ||||
| 86137-24040 |
MZ2#..GTL |
1 | ||
| 86170A - SWITCH & VOLUME ASSY | ||||
| 86170-24040 |
MZ2#..GTL |
1 | ||
| 86191 - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-24010 |
MZ2#..GTL |
1 | ||
| Common parts | ||||
| 82711-24010 | ||||
| 86138-24040 | ||||
| 86139-24040 | ||||
| 90119-06157 | ||||
| 90149-50032 | ||||
| 90463-08093 | ||||
| 93219-14008 | ||||
| Linked diagrams | ||||
| 8601 | ||||
