MZ20-HCPVZ (1988)

Toyota Soarer

Production Jan 1988 - Apr 1991
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8801- )

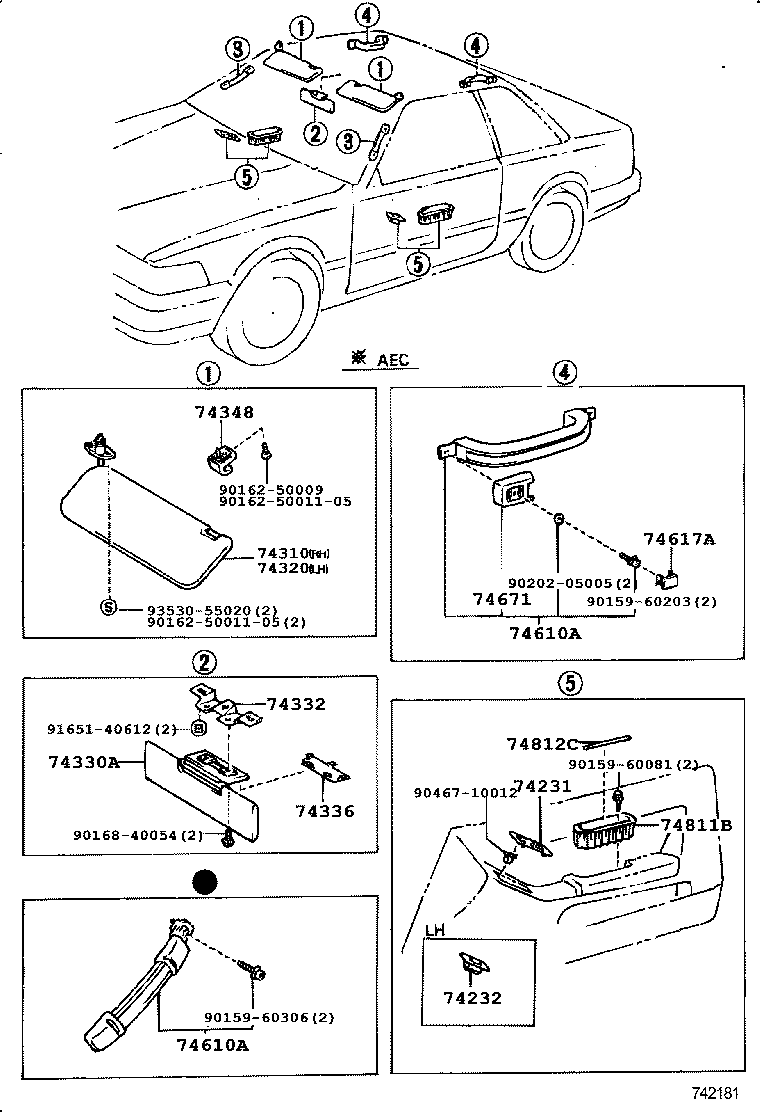

Click highlighted areas on diagram

diagram 74231 74232 74310 74320 74330A 74332 74336 74348 74610A 74610A 74617A 74671 74811B 74812C 9015960081 9015960203 9015960306 9016250009 901625001105 901625001105 9016840054 9020205005 9046710012 9165140612 9353055020
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-24021

GZ20,MZ2#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-24031

GZ20,MZ2#

 1
74310 - VISOR ASSY, RH
74310-2407004

MZ20..GT;GZ20..TWT

DARK BLUE,TRIM8#

 1
74310-2407001

MZ20..GT;GZ20..TWT

BLACK,TRIM2#

 1
74310-2407015

MZ20..GT;GZ20..TWT

GREIGE,TRIM4#

 1
74310-2407101

GZ20..TWT;MZ20..CP..GT

BLACK,TRIM2#

 1
74310-2407105

GZ20..TWT;MZ20..CP..GT

GREIGE,TRIM4#

 1
74310-2407104

GZ20..TWT;MZ20..CP..GT

DARK BLUE,TRIM8#

 1
74320 - VISOR ASSY, LH
74320-2405001

GZ20;MZ20..GT

BLACK,TRIM2#

 1
74320-2405101

GZ20;MZ20..CP..GT

BLACK,TRIM2#

 1
74320-2405015

GZ20;MZ20..GT

GREIGE,TRIM4#

 1
74320-2405004

GZ20;MZ20..GT

DARK BLUE,TRIM8#

 1
74320-2405105

GZ20;MZ20..CP..GT

GREIGE,TRIM4#

 1
74320-2405104

GZ20;MZ20..CP..GT

DARK BLUE,TRIM8#

 1
74330A - VISOR ASSY, CENTER
74330-2401005

GZ20,MZ2#

GREIGE,TRIM4#

 1
74330-2401001

GZ20;MZ20..GT

BLACK,TRIM2#

 1
74330-2401101

GZ20;MZ20..CP..GT

BLACK,TRIM2#

 1
74330-2401104

GZ20,MZ2#..CP

DARK BLUE,TRIM8#

 1
74330-2401004

GZ20,MZ2#

DARK BLUE,TRIM8#

 1
74330-2401105

GZ20,MZ2#

GREIGE,TRIM4#

 1
74332 - REINFORCEMENT, VISOR
74332-24030

GZ20,MZ2#

 1
74332-24040

GZ20,MZ2#..CP

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
74336 - CLIP, VISOR ARM SET
74336-2401005

GZ20,MZ2#

GREIGE,TRIM4#

 1
74336-2401001

GZ20;MZ20..CP..GT

BLACK,TRIM2#

 1
74336-2401004

GZ20,MZ2#..CP

DARK BLUE,TRIM8#

 1
74348 - HOLDER, VISOR
74348-1202001

MZ20..CP..GT

BLACK,TRIM2#

 2
74348-2002014

MZ2#

DEEP BLUE,DEEP BLUE,TRIM8#

 2
74348-2002015

GZ20,MZ2#

GREIGE,TRIM4#

 2
74348-2002001

GZ20;MZ20..GT

BLACK,TRIM2#

 2
74348-1202015

MZ2#

GREIGE,TRIM4#

 2
74348-1202044

MZ2#..CP

DARK BLUE,TRIM8#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-2402015

GZ20,MZ2#..CP

GREIGE,TRIM4#,ﾌﾛﾝﾄ

 2
74610-2402014

GZ20,MZ2#..CP

DARK BLUE,TRIM8#,ﾌﾛﾝﾄ

 2
74610-2403004

MZ2#..CP

DARK BLUE,TRIM8#,ﾘﾔ

 2
74610-2402001

GZ20;MZ20..CP..GT

BLACK,TRIM2#,ﾌﾛﾝﾄ

 2
74610-2403015

MZ2#..CP

GREIGE,TRIM4#,ﾘﾔ

 2
74610-2403003

MZ20..CP..GT

GRAY,TRIM2#,ﾘﾔ

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-2402015

GZ20,MZ2#..CP

GREIGE,TRIM4#,ﾌﾛﾝﾄ

 2
74610-2402014

GZ20,MZ2#..CP

DARK BLUE,TRIM8#,ﾌﾛﾝﾄ

 2
74610-2403004

MZ2#..CP

DARK BLUE,TRIM8#,ﾘﾔ

 2
74610-2402001

GZ20;MZ20..CP..GT

BLACK,TRIM2#,ﾌﾛﾝﾄ

 2
74610-2403015

MZ2#..CP

GREIGE,TRIM4#,ﾘﾔ

 2
74610-2403003

MZ20..CP..GT

GRAY,TRIM2#,ﾘﾔ

 2
74617A - PLUG, ASSIST GRIP
74617-2201010

GZ20,MZ2#..CP

GREIGE,TRIM4#

 4
74617-2201043

GZ20;MZ20..CP..GT

GRAY,TRIM2#

 4
74617-2201034

GZ20,MZ2#..CP

DARK BLUE,TRIM8#

 4
74671 - SUPPORT, ASSIST GRIP
74671-2201055

GZ20,MZ2#..CP

GREIGE,TRIM4#

 4
74671-2201034

GZ20,MZ2#..CP

DARK BLUE,TRIM8#

 4
74671-2201043

GZ20;MZ20..CP..GT

GRAY,TRIM2#

 4
74811B - HANDLE, DOOR PULL
74811-2401015

GZ20,MZ2#

GREIGE,TRIM4#,右側

 1
74811-2402015

GZ20,MZ2#

GREIGE,TRIM4#,左側

 1
74811-2401004

GZ20,MZ2#..CP

DARK BLUE,TRIM8#,右側

 1
74811-2401001

GZ20;MZ20..CP..GT

BLACK,TRIM2#,右側

 1
74811-2402004

GZ20,MZ2#..CP

DARK BLUE,TRIM8#,左側

 1
74811-2402001

GZ20;MZ20..CP..GT

BLACK,TRIM2#,左側

 1
74812C - COVER, DOOR PULL HANDLE
74812-2401004

GZ20,MZ2#..CP

DARK BLUE,TRIM8#

 2
74812-2401003

GZ20;MZ20..CP..GT

GRAY,TRIM2#

 2
74812-2401015

GZ20,MZ2#

GREIGE,TRIM4#

 2
Common parts
90159-60081
90159-60203
90159-60306
90162-50009
90162-5001105
90168-40054
90202-05005
90467-10012
91651-40612
93530-55020
