MZ20-HCPVZ (1988)
Toyota Soarer

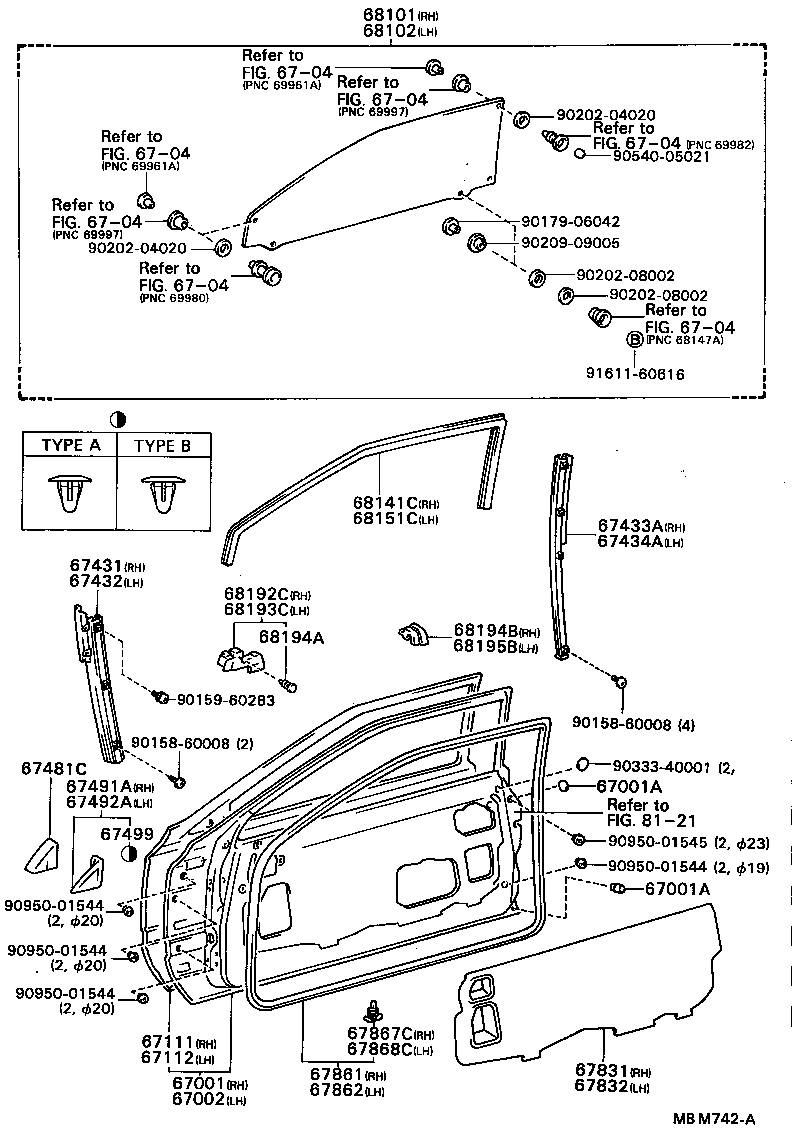

(8801-9104)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-24030 |
GZ20,MZ2# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09051 |
GZ20,MZ2# |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09051 |
GZ20,MZ2# |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-24030 |
GZ20,MZ2# |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-24020 |
GZ20,MZ2# |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-24020 |
GZ20,MZ2# |
1 | ||
| 67431 - GUIDE, FRONT DOOR WINDOW, FRONT RH | ||||
| 67431-24020 |
GZ20,MZ2# |
1 | ||
| 67432 - GUIDE, FRONT DOOR WINDOW, FRONT LH | ||||
| 67432-24020 |
GZ20,MZ2# |
1 | ||
| 67433A - GUIDE, FRONT DOOR WINDOW, REAR RH | ||||
| 67433-24020 |
GZ20,MZ2# |
1 | ||
| 67434A - GUIDE, FRONT DOOR WINDOW, REAR LH | ||||
| 67434-24020 |
GZ20,MZ2# |
1 | ||
| 67481C - SEAL, FRONT DOOR FRONT LOWER FRAME | ||||
| 67481-24010 |
GZ20,MZ2# |
2 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-2403001 |
GZ20;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 67491-2403015 |
GZ20,MZ2# GREIGE,TRIM4# |
1 | ||
| 67491-2403004 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-2403004 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 67492-2403015 |
GZ20,MZ2# GREIGE,TRIM4# |
1 | ||
| 67492-2403001 |
GZ20;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-24010 |
GZ20,MZ2# ﾀｲﾌﾟ B |
2 | ||
| 67499-30010 |
GZ20,MZ2# ﾀｲﾌﾟ A |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-24010 |
GZ20,MZ2# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-24010 |
GZ20,MZ2# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-24040 |
GZ20,MZ2# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-24040 |
GZ20,MZ2# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-20130 |
GZ20,MZ2# |
20 | ||
| 67868-30040 |
GZ20,MZ2# |
20 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20130 |
GZ20,MZ2# |
20 | ||
| 67868-30040 |
GZ20,MZ2# |
20 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-24090 |
GZ20,MZ2#..CP *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68101-24070 |
GZ20,MZ2# *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68101-24070 |
GZ20;MZ20..GT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-24070 |
GZ20,MZ2# *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-24070 |
GZ20;MZ20..GT *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 68102-24090 |
GZ20,MZ2#..CP *TT,厚さ=5.0,ｸﾞﾚｰ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-24030 |
GZ20,MZ2# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-24030 |
GZ20,MZ2# |
1 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-24030 |
GZ20,MZ2# |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68193-24030 |
GZ20,MZ2# |
1 | ||
| 68194A - CLIP(FOR FRONT DOOR BELT SEAL) | ||||
| 67869-30020 |
GZ20,MZ2# |
2 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-24020 |
GZ20,MZ2# |
1 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-24020 |
GZ20,MZ2# |
1 | ||
| Common parts | ||||
| 90158-60008 | ||||
| 90159-60283 | ||||
| 90179-06042 | ||||
| 90202-04020 | ||||
| 90202-08002 | ||||
| 90209-09005 | ||||
| 90333-40001 | ||||
| 90540-05021 | ||||
| 90950-01544 | ||||
| 90950-01545 | ||||
| 91611-60616 | ||||
| Linked diagrams | ||||
| 6704 | ||||
| 8121 | ||||

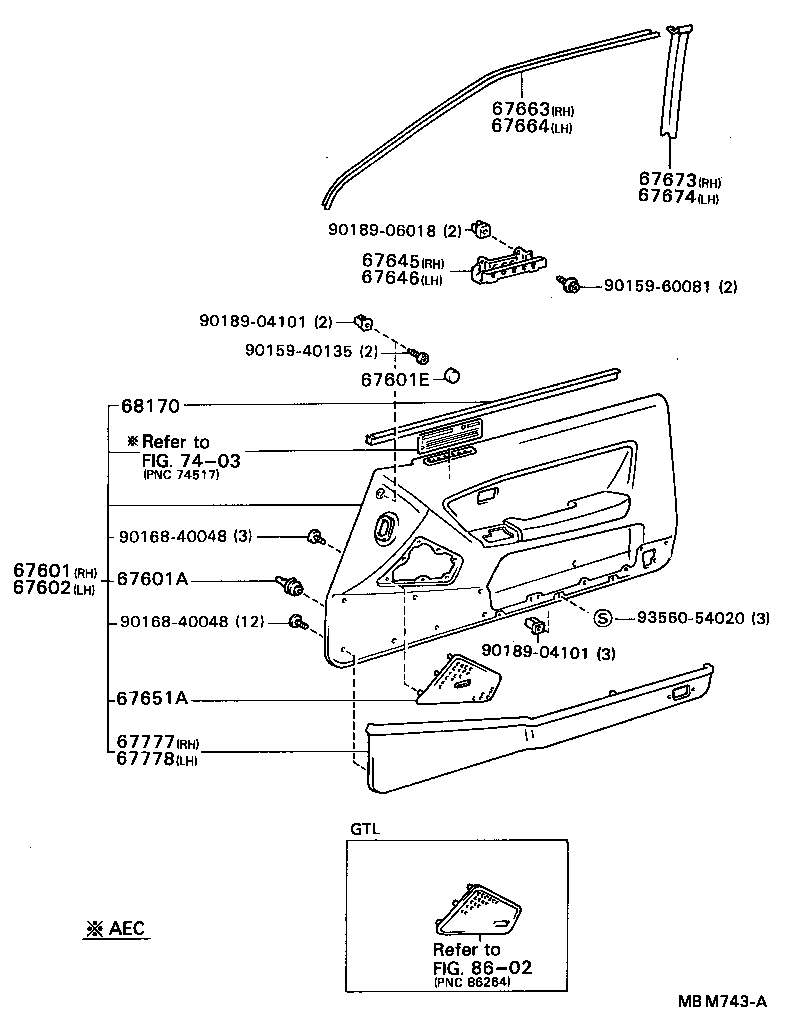

(8801-9104)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-2422104 |
MZ20..CP..GT DARK BLUE,TRIM8# |
1 | ||
| 67610-2422101 |
MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 67610-2422105 |
MZ20..CP..GT GREIGE,TRIM4# |
1 | ||
| 67610-2432004 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ);ｱﾘ(ｴｸｾ-ﾇ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-2430005 |
MZ20..CP..GT ｱﾘ(ﾂｲﾝ ﾊﾞﾂｸ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),GREIGE,TRIM4# |
1 | ||
| 67610-2430001 |
MZ20..CP..GT ｱﾘ(ﾂｲﾝ ﾊﾞﾂｸ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67610-2431004 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ);ｱﾘ(ｴｸｾ-ﾇ ｼ-ﾄ),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67610-2431005 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ);ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ),GREIGE,GREIGE,TRIM4# |
1 | ||
| 67610-2431001 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ);ｱﾘ(ｴｸｾ-ﾇ ｼ-ﾄ),BLACK,BLACK,TRIM2# |
1 | ||
| 67610-2432005 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ);ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),GREIGE,GREIGE,TRIM4# |
1 | ||
| 67610-2432001 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ);ｱﾘ(ｴｸｾ-ﾇ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),BLACK,BLACK,TRIM2# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14030 |
GZ20,MZ2# ﾚｯﾄﾞ |
1 | ||
| 67771-14040 |
GZ20,MZ2# GRAY |
6 | ||
| 67601E - CAP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90339-1000101 |
GZ20;MZ20..CP..GT BLACK,TRIM2# |
2 | ||
| 90339-1000110 |
GZ20,MZ2# GREIGE,TRIM4# |
2 | ||
| 90339-1000134 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-2422104 |
MZ20..CP..GT DARK BLUE,TRIM8# |
1 | ||
| 67620-2422105 |
MZ20..CP..GT GREIGE,TRIM4# |
1 | ||
| 67620-2422101 |
MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 67620-2432004 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ);ｱﾘ(ｴｸｾ-ﾇ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-2431005 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ);ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ),GREIGE,GREIGE,TRIM4# |
1 | ||
| 67620-2431001 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ);ｱﾘ(ｴｸｾ-ﾇ ｼ-ﾄ),BLACK,BLACK,TRIM2# |
1 | ||
| 67620-2431004 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ);ｱﾘ(ｴｸｾ-ﾇ ｼ-ﾄ),DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67620-2430001 |
MZ20..CP..GT ｱﾘ(ﾂｲﾝ ﾊﾞﾂｸ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67620-2430005 |
MZ20..CP..GT ｱﾘ(ﾂｲﾝ ﾊﾞﾂｸ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),GREIGE,TRIM4# |
1 | ||
| 67620-2432001 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ);ｱﾘ(ｴｸｾ-ﾇ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),BLACK,BLACK,TRIM2# |
1 | ||
| 67620-2432005 |
MZ20..GT;GZ20..GTL ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ);ｱﾘ(ｴｸｾ-ﾇ ｽﾎﾟ-ﾂ ｼ-ﾄ & ﾂｲﾝ ﾛ-ﾄﾞ ｽﾋﾟ-ｶ),GREIGE,GREIGE,TRIM4# |
1 | ||
| 67645 - BRACKET, FRONT DOOR ARMREST SET, RH | ||||
| 67645-24010 |
GZ20,MZ2# |
1 | ||
| 67646 - BRACKET, FRONT DOOR ARMREST SET, LH | ||||
| 67646-24010 |
GZ20,MZ2# |
1 | ||
| 67651A - GRILLE, SPEAKER DOOR | ||||
| 67651-2401001 |
GZ20;MZ20..CP..GT BLACK,TRIM2#,右側 |
1 | ||
| 67651-2401015 |
GZ20;MZ20..GT GREIGE,TRIM4#,右側 |
1 | ||
| 67652-2401004 |
GZ20;MZ20..CP..GT DARK BLUE,TRIM8#,左側 |
1 | ||
| 67651-2401004 |
GZ20;MZ20..CP..GT DARK BLUE,TRIM8#,右側 |
1 | ||
| 67652-2401015 |
GZ20;MZ20..GT GREIGE,TRIM4#,左側 |
1 | ||
| 67652-2401001 |
GZ20;MZ20..CP..GT BLACK,TRIM2#,左側 |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-2401001 |
GZ20;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 67663-2401004 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 67663-2401015 |
GZ20,MZ2# GREIGE,TRIM4# |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-2401015 |
GZ20,MZ2# GREIGE,TRIM4# |
1 | ||
| 67664-2401001 |
GZ20;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 67664-2401004 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 67673 - GARNISH, DOOR FRAME, LOWER RH | ||||
| 67673-2401004 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 67673-2401015 |
GZ20,MZ2# GREIGE,TRIM4# |
1 | ||
| 67673-2401001 |
GZ20;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 67674 - GARNISH, DOOR FRAME, LOWER LH | ||||
| 67674-2401015 |
GZ20,MZ2# GREIGE,TRIM4# |
1 | ||
| 67674-2401004 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 67674-2401001 |
GZ20;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67770-2408001 |
GZ20..TWT;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 67770-2408004 |
GZ20..TWT;MZ20..CP..GT DARK BLUE,TRIM8# |
1 | ||
| 67770-2408015 |
MZ20..GT;GZ20..TWT GREIGE,TRIM4# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67780-2402004 |
GZ20..TWT;MZ20..CP..GT DARK BLUE,TRIM8# |
1 | ||
| 67780-2402015 |
MZ20..GT;GZ20..TWT GREIGE,TRIM4# |
1 | ||
| 67780-2402001 |
GZ20..TWT;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-24030 |
GZ20,MZ2# 右側 |
1 | ||
| 68220-24030 |
GZ20,MZ2# 左側 |
1 | ||
| Common parts | ||||
| 90159-40135 | ||||
| 90159-60081 | ||||
| 90168-40048 | ||||
| 90189-04101 | ||||
| 90189-06018 | ||||
| 93560-54020 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8602 | ||||
