MZ20-HCPVZ (1988)
Toyota Soarer

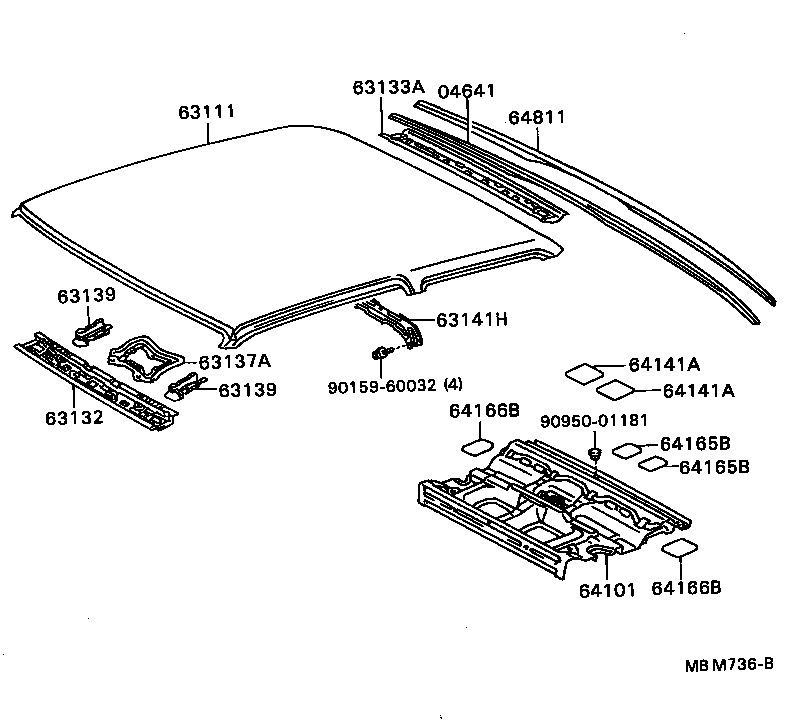

(8801- )CP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
GZ20,MZ2#..CP..(HTWC,TWC,TWT) |
1 | ||
| 04562-30040 |
GZ20,MZ2# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-24030 |
GZ20,MZ2#..CP |
1 | ||
| 63111-24040 |
GZ20,MZ2#..CP ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-24020 |
GZ20,MZ2#..CP |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-24020 |
GZ20,MZ2#..CP |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-24020 |
GZ20,MZ2#..CP |
1 | ||
| 63139 - BRACKET, DOME LAMP, NO.3 | ||||
| 63139-24010 |
GZ20,MZ2#..CP |
2 | ||
| 63139 - BRACKET, DOME LAMP, NO.3 | ||||
| 63139-24010 |
GZ20,MZ2#..CP |
2 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-24020 |
GZ20,MZ2#..CP |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-24020 |
GZ20,MZ2#..CP |
1 | ||
| 64141A - SILENCER, BACK PANEL, NO.1 | ||||
| 64141-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64141A - SILENCER, BACK PANEL, NO.1 | ||||
| 64141-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64165-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64165-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-24080 |
MZ20..CP..GT;GZ20..TWC,TWT *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-24060 |
GZ20;MZ20..CP..GT *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-24090 |
MZ20..CP..GT;GZ20..TWC,TWT *EHTT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 64811-24110 |
MZ20..CP..GT;GZ20..TWC,TWT *EHTT,厚さ=3.5,ｸﾞﾚｰ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 90159-60032 | ||||
| 90950-01181 | ||||

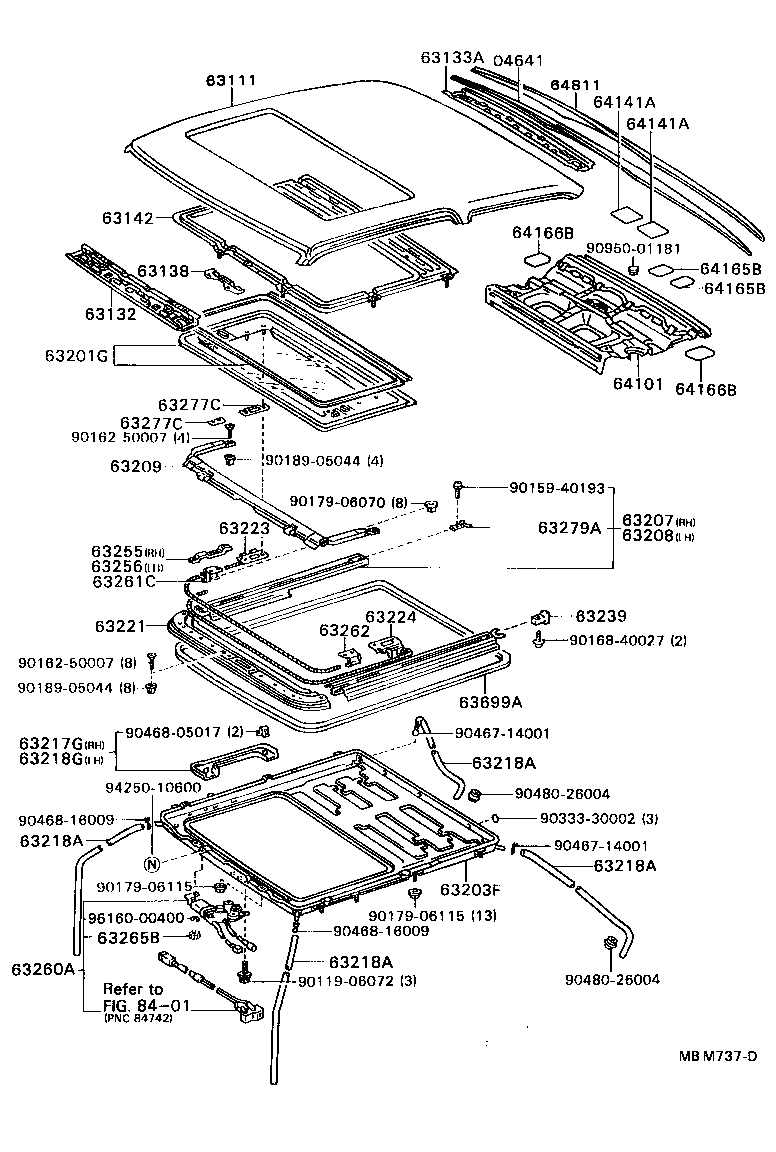

(8801- )CP
ｱﾘ(ｻﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-30040 |
GZ20,MZ2#..CP..(HTWC,TWC,TWT) |
1 | ||
| 04562-30040 |
GZ20,MZ2# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-24030 |
GZ20,MZ2#..CP |
1 | ||
| 63111-24040 |
GZ20,MZ2#..CP ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-24020 |
GZ20,MZ2#..CP |
1 | ||
| 63133A - FRAME, BACK WINDOW, UPPER | ||||
| 63133-24020 |
GZ20,MZ2#..CP |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-24020 |
GZ20,MZ2#..CP |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-24020 |
GZ20,MZ2#..CP |
1 | ||
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-2403115 |
GZ20,MZ2#..CP *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,GREIGE,TRIM4# |
1 | ||
| 63201-2404005 |
GZ20,MZ2#..CP *TT,厚さ=3.5,ｸﾞﾚｰ,GREIGE,TRIM4# |
1 | ||
| 63201-2404004 |
GZ20,MZ2#..CP *TT,厚さ=3.5,ｸﾞﾚｰ,DARK BLUE,TRIM8# |
1 | ||
| 63201-2403103 |
GZ20;MZ20..CP..GT *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,GRAY,TRIM2# |
1 | ||
| 63201-2404003 |
GZ20;MZ20..CP..GT *TT,厚さ=3.5,ｸﾞﾚｰ,GRAY,TRIM2# |
1 | ||
| 63201-2403104 |
GZ20,MZ2#..CP *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,DARK BLUE,TRIM8# |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-24030 |
GZ20,MZ2#..CP |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-24011 |
GZ20,MZ2#..CP |
1 | ||
| 63207-24010 |
GZ20,MZ2# |
1 | ||
| 63207-24012 |
GZ20,MZ2# |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-24012 |
GZ20,MZ2# |
1 | ||
| 63208-24011 |
GZ20,MZ2#..CP |
1 | ||
| 63208-24010 |
GZ20,MZ2# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-24010 |
GZ20,MZ2# |
1 | ||
| 63209-24011 |
GZ20,MZ2#..CP |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-2401003 |
GZ20;MZ20..CP..GT GRAY,TRIM2# |
1 | ||
| 63217-2401015 |
GZ20,MZ2#..CP GREIGE,TRIM4# |
1 | ||
| 63217-2401004 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32010 |
GZ20,MZ2#..CP ﾌﾛﾝﾄ |
2 | ||
| 63249-24030 |
GZ20,MZ2#..CP RR RH |
1 | ||
| 63249-24040 |
GZ20,MZ2#..CP RR LH |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32010 |
GZ20,MZ2#..CP ﾌﾛﾝﾄ |
2 | ||
| 63249-24030 |
GZ20,MZ2#..CP RR RH |
1 | ||
| 63249-24040 |
GZ20,MZ2#..CP RR LH |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32010 |
GZ20,MZ2#..CP ﾌﾛﾝﾄ |
2 | ||
| 63249-24030 |
GZ20,MZ2#..CP RR RH |
1 | ||
| 63249-24040 |
GZ20,MZ2#..CP RR LH |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32010 |
GZ20,MZ2#..CP ﾌﾛﾝﾄ |
2 | ||
| 63249-24030 |
GZ20,MZ2#..CP RR RH |
1 | ||
| 63249-24040 |
GZ20,MZ2#..CP RR LH |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-2401004 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 63218-2401003 |
GZ20;MZ20..CP..GT GRAY,TRIM2# |
1 | ||
| 63218-2401015 |
GZ20,MZ2#..CP GREIGE,TRIM4# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-24010 |
GZ20,MZ2#..CP |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-24010 |
GZ20,MZ2#..CP |
1 | ||
| 63223-24011 |
MZ2# |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-24010 |
GZ20,MZ2#..CP |
1 | ||
| 63224-24011 |
MZ2# |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-24010 |
GZ20,MZ2#..CP |
2 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-24010 |
GZ20,MZ2#..CP |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-24010 |
GZ20,MZ2#..CP |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-24010 |
GZ20,MZ2#..CP |
1 | ||
| 63260-24011 |
GZ20,MZ2# |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-24012 |
MZ2#..CP |
1 | ||
| 63261-24013 |
GZ20,MZ2# |
1 | ||
| 63261-24011 |
GZ20,MZ2# |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-24012 |
MZ2#..CP |
1 | ||
| 63262-24013 |
GZ20,MZ2# |
1 | ||
| 63262-24011 |
GZ20,MZ2# |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
MZ2#..CP |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-24010 |
GZ20,MZ2#..CP 厚さ=1.0,T=1.0, 29.5X118.5,ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63277-30020 |
GZ20,MZ2#..CP 厚さ=1.0,T=1.0, 28X52,ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-24010 |
GZ20,MZ2#..CP 厚さ=1.0,T=1.0, 29.5X118.5,ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63277-30020 |
GZ20,MZ2#..CP 厚さ=1.0,T=1.0, 28X52,ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63279A - BRACKET, HOUSING TO RAIL, NO.3 | ||||
| 63279-24010 |
GZ20,MZ2#..CP |
2 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12040 |
GZ20,MZ2#..CP |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-24020 |
GZ20,MZ2#..CP |
1 | ||
| 64141A - SILENCER, BACK PANEL, NO.1 | ||||
| 64141-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64141A - SILENCER, BACK PANEL, NO.1 | ||||
| 64141-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64165-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64165-24010 |
GZ20,MZ2#..CP |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-24080 |
MZ20..CP..GT;GZ20..TWC,TWT *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-24060 |
GZ20;MZ20..CP..GT *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-24090 |
MZ20..CP..GT;GZ20..TWC,TWT *EHTT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 64811-24110 |
MZ20..CP..GT;GZ20..TWC,TWT *EHTT,厚さ=3.5,ｸﾞﾚｰ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90159-40193 | ||||
| 90162-50007 | ||||
| 90168-40027 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90189-05044 | ||||
| 90333-30002 | ||||
| 90467-14001 | ||||
| 90468-05017 | ||||
| 90468-16009 | ||||
| 90480-26004 | ||||
| 90950-01181 | ||||
| 94250-10600 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
