MZ20-HCPVZ (1986)

Toyota Soarer

Production Jan 1986 - Jan 1988
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

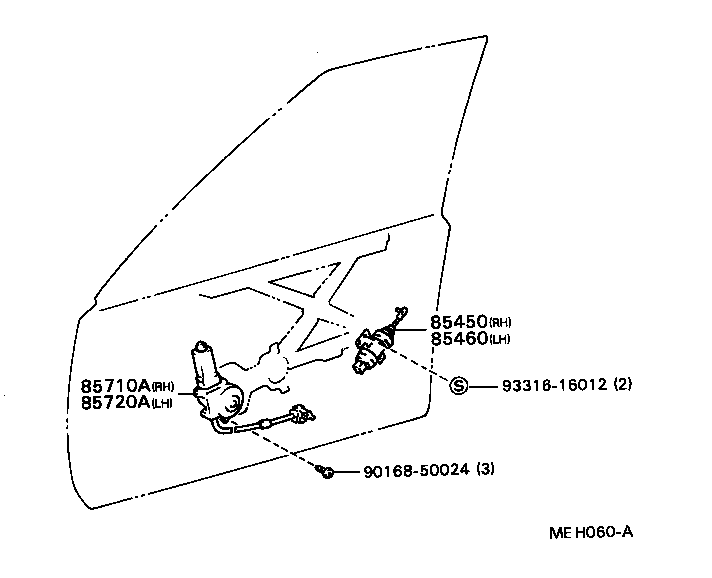

Click highlighted areas on diagram

diagram 85450 85460 85710A 85720A 9016850024 9331616012
Part # Description Qty Price
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-24040

MZ2#

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85450-24050

MZ2#

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-24020

GZ20,MZ2#

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-24020

GZ20,MZ2#

 1
Common parts
90168-50024
93316-16012
