MZ20-HCPVZ (1986)
Toyota Soarer
Production
Jan 1986
-
Jan 1988
Engine
7MGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )MZ2# ; (8701- )GTT

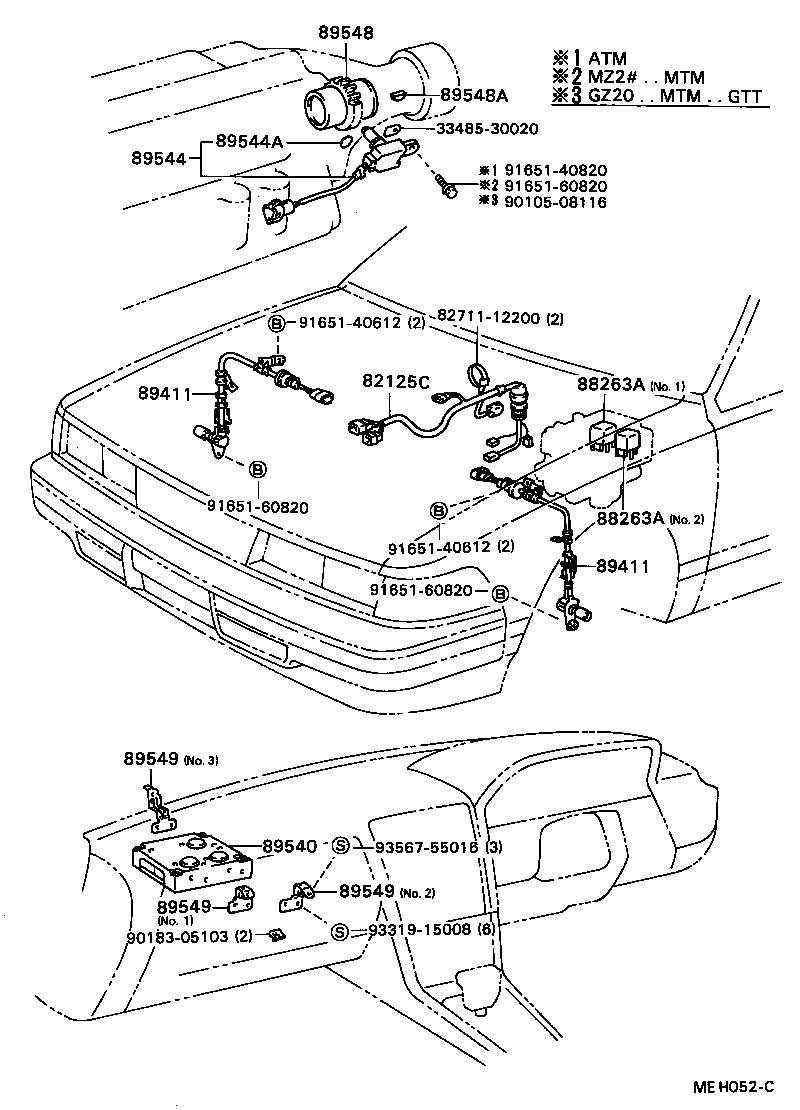

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125C - WIRE, TRANSMISSION | ||||
| 82125-24050 |
MZ2# |
1 | ||
| 82125-14050 |
MZ2#..4FC |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
MZ2# NO.1 |
1 | ||
| 88263-14120 |
MZ2# NO.2 |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-14110 |
MZ2# NO.1 |
1 | ||
| 88263-14120 |
MZ2# NO.2 |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-14010 |
MZ2# RH |
1 | ||
| 89543-14010 |
MZ2# LH |
1 | ||
| 89411 - SENSOR, SPEED | ||||
| 89542-14010 |
MZ2# RH |
1 | ||
| 89543-14010 |
MZ2# LH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89541-14010 |
MZ2# |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-14030 |
MZ2#..4FC |
1 | ||
| 89544A - RING, O (FOR SKID CONTROL SENSOR) | ||||
| 90301-11008 |
MZ2#..4FC |
1 | ||
| 89548 - ROTOR, SKID CONTROL SENSOR | ||||
| 89548-14010 |
MZ2#..4FC |
1 | ||
| 89548A - KEY, WOODRUFF (FOR SKID CONTROL SENSOR ROTOR) | ||||
| 90280-03005 |
MZ2#..4FC |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88268-24020 |
MZ2# NO.2 |
1 | ||
| 88267-24020 |
MZ2# NO.1 |
1 | ||
| 88269-24020 |
MZ2# NO.3 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88268-24020 |
MZ2# NO.2 |
1 | ||
| 88267-24020 |
MZ2# NO.1 |
1 | ||
| 88269-24020 |
MZ2# NO.3 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 88268-24020 |
MZ2# NO.2 |
1 | ||
| 88267-24020 |
MZ2# NO.1 |
1 | ||
| 88269-24020 |
MZ2# NO.3 |
1 | ||
| Common parts | ||||
| 33485-30020 | ||||
| 82711-12200 | ||||
| 90105-08116 | ||||
| 90183-05103 | ||||
| 91651-40612 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 93319-15008 | ||||
| 93567-55016 | ||||
