MZ20-HCPVZ (1986)
Toyota Soarer
Production
Jan 1986
-
Jan 1988
Engine
7MGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )

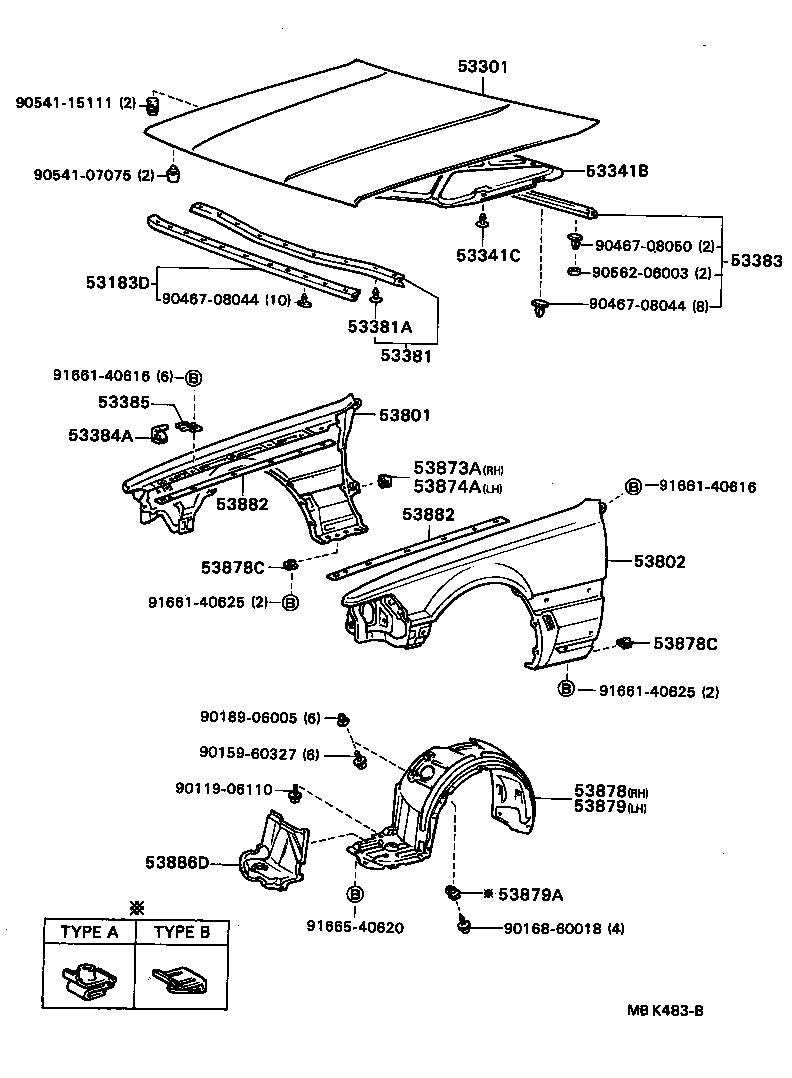

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-24010 |
GZ20,MZ2# |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-24020 |
GZ20,MZ2# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-24060 |
MZ2# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-08081 |
MZ2# PLASTIC |
11 | ||
| 90467-11035 |
MZ2# STEEL |
4 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-24020 |
GZ20,MZ2# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GZ20,MZ2# |
9 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-24020 |
GZ20,MZ2# |
1 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-24010 |
GZ20,MZ2# |
2 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53385-14010 |
GZ20,MZ2# RH |
1 | ||
| 53386-14010 |
GZ20,MZ2# LH |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-24070 |
MZ2# W/DOOR MIRROR |
1 | ||
| 53801-24120 |
MZ2# W/FENDER MIRROR & *SMU |
1 | ||
| 53801-24100 |
MZ2# W/DOOR MIRROR & *SMU |
1 | ||
| 53801-24080 |
MZ2# W/FENDER MIRROR |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-24100 |
MZ2# W/DOOR MIRROR & *SMU |
1 | ||
| 53802-24070 |
MZ2# W/DOOR MIRROR |
1 | ||
| 53802-24080 |
MZ2# W/FENDER MIRROR |
1 | ||
| 53802-24120 |
MZ2# W/FENDER MIRROR & *SMU |
1 | ||
| 53873A - SPACER, FRONT FENDER TO DOOR HINGE, RH | ||||
| 53873-24010 |
GZ20,MZ2# |
2 | ||
| 53874A - SPACER, FRONT FENDER TO DOOR HINGE, LH | ||||
| 53874-24010 |
GZ20,MZ2# |
2 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-24020 |
GZ20,MZ2# |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-14020 |
GZ20,MZ2# |
4 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-14020 |
GZ20,MZ2# |
4 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-24021 |
GZ20,MZ2# |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-14020 |
GZ20,MZ2# TYPE A |
8 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-24020 |
GZ20,MZ2# |
2 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-24020 |
GZ20,MZ2# |
2 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90159-60327 | ||||
| 90168-60018 | ||||
| 90189-06005 | ||||
| 90467-08044 | ||||
| 90467-08050 | ||||
| 90541-07075 | ||||
| 90541-15111 | ||||
| 90562-06003 | ||||
| 91661-40616 | ||||
| 91661-40625 | ||||
| 91665-40620 | ||||
