MZ20-HCPVZ (1986)

Toyota Soarer

Production Jan 1986 - Jan 1988
Engine 7MGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

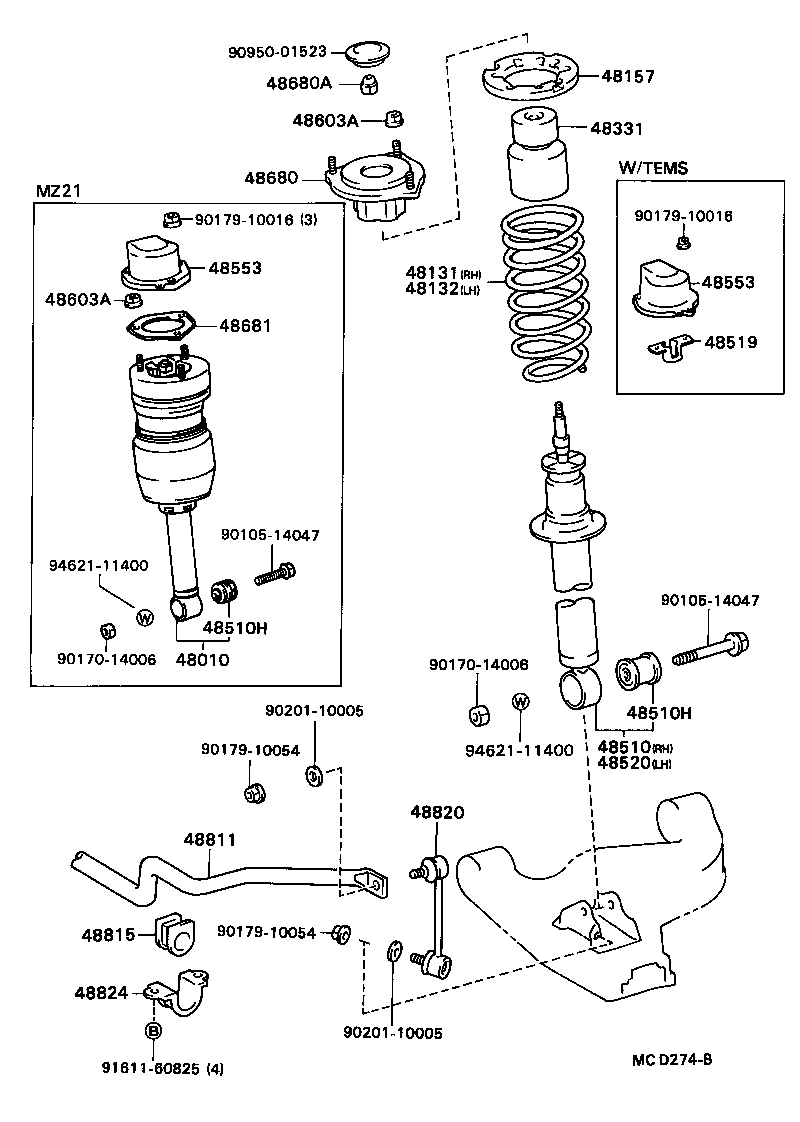

Click highlighted areas on diagram

diagram 48010 48131 48132 48157 48331 48510 48510H 48510H 48519 48520 48553 48553 48603A 48603A 48680 48680A 48681 48811 48815 48820 48824 9010514047 9010514047 9017014006 9017014006 9017910016 9017910016 9017910054 9017910054 9020110005 9020110005 9095001523 9161160825 9462111400 9462111400
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-24180

MZ20..GT

 1
48132 - SPRING, FRONT COIL, LH
48131-24190

MZ20..GT

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-14020

GZ20,MZ20

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-14060

GZ20,MZ20

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-14390

MZ20

 1
48510H - BUSH(FOR FRONT SHOCK ABSORBER)
90389-14028

GZ20,MZ2#

 2
48510H - BUSH(FOR FRONT SHOCK ABSORBER)
90389-14028

GZ20,MZ2#

 2
48519 - BRACKET, ACTUATOR SUPPORT, FRONT
48519-14010

GZ20,MZ20..GT,GTL

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-14390

MZ20

 1
48553 - CAP, SHOCK ABSORBER, UPPER
48553-24030

GZ20,MZ2#..GT,GTL

 2
48553 - CAP, SHOCK ABSORBER, UPPER
48553-24030

GZ20,MZ2#..GT,GTL

 2
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10016

GZ20,MZ2#

 6
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10016

GZ20,MZ2#

 6
48680 - SUPPORT ASSY, FRONT SUSPENSION
48680-14041

GZ20,MZ20

 2
48680-14040

GZ20,MZ20

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94187-11200

GZ20,MZ20

 2
48811 - BAR, STABILIZER, FRONT
48811-24041

GZ20,MZ2#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-24030

GZ20,MZ2#

 2
48820 - LINK ASSY, FRONT STABILIZER
48820-14011

GZ20,MZ2#

 2
48824 - BRACKET, STABILIZER, FRONT
48824-14060

GZ20,MZ2#

 2
Common parts
90105-14047
90170-14006
90179-10016
90179-10054
90201-10005
90950-01523
91611-60825
94621-11400
