MZ20-HCPVZ (1986)
Toyota Soarer
Production
Jan 1986
-
Jan 1988
Engine
7MGTEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )7MGTEU

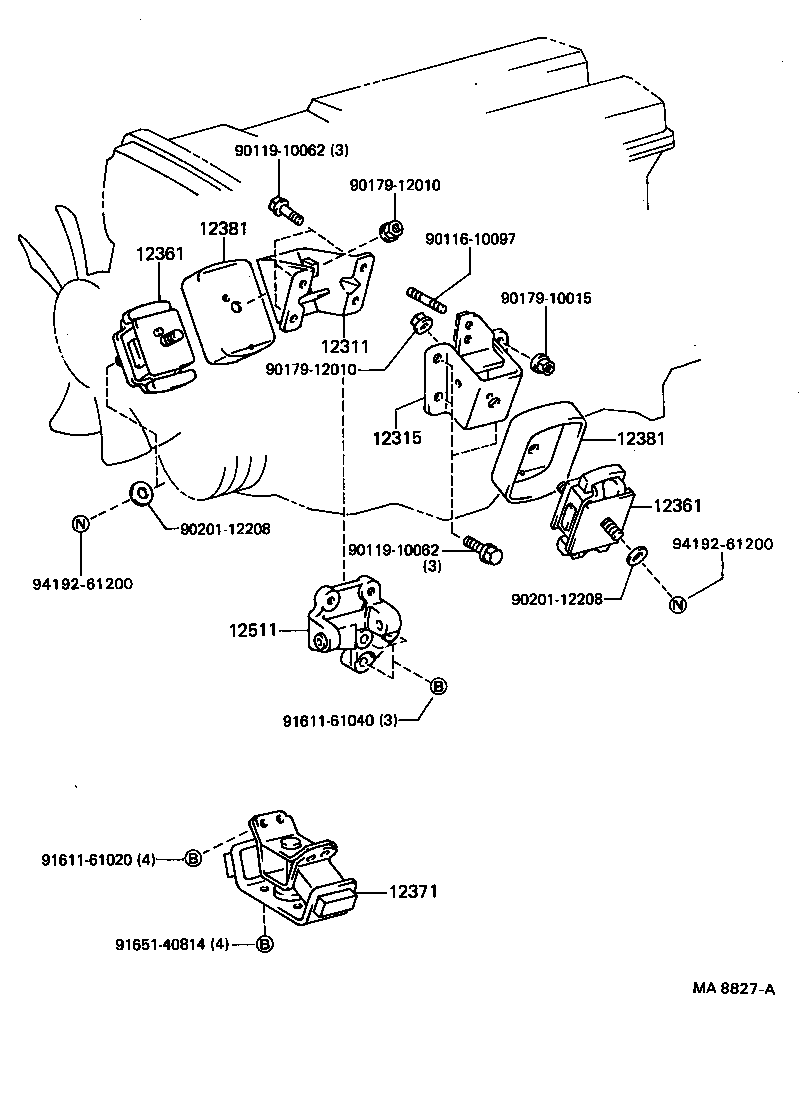

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-42020 |
7MGTEU..MZ2# |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-42020 |
7MGTEU..MZ2# |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-42030 |
7MGTEU..MZ2# |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-42030 |
7MGTEU..MZ2# |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-70020 |
7MGTEU..MZ2# |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-42010 |
7MGTEU..MZ2# |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-42010 |
7MGTEU..MZ2# |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-42010 |
7MGTEU..MZ2# |
1 | ||
| Common parts | ||||
| 90116-10097 | ||||
| 90119-10062 | ||||
| 90179-10015 | ||||
| 90179-12010 | ||||
| 90201-12208 | ||||
| 91611-61020 | ||||
| 91611-61040 | ||||
| 91651-40814 | ||||
| 94192-61200 | ||||
(8801-8901)7MGTEU

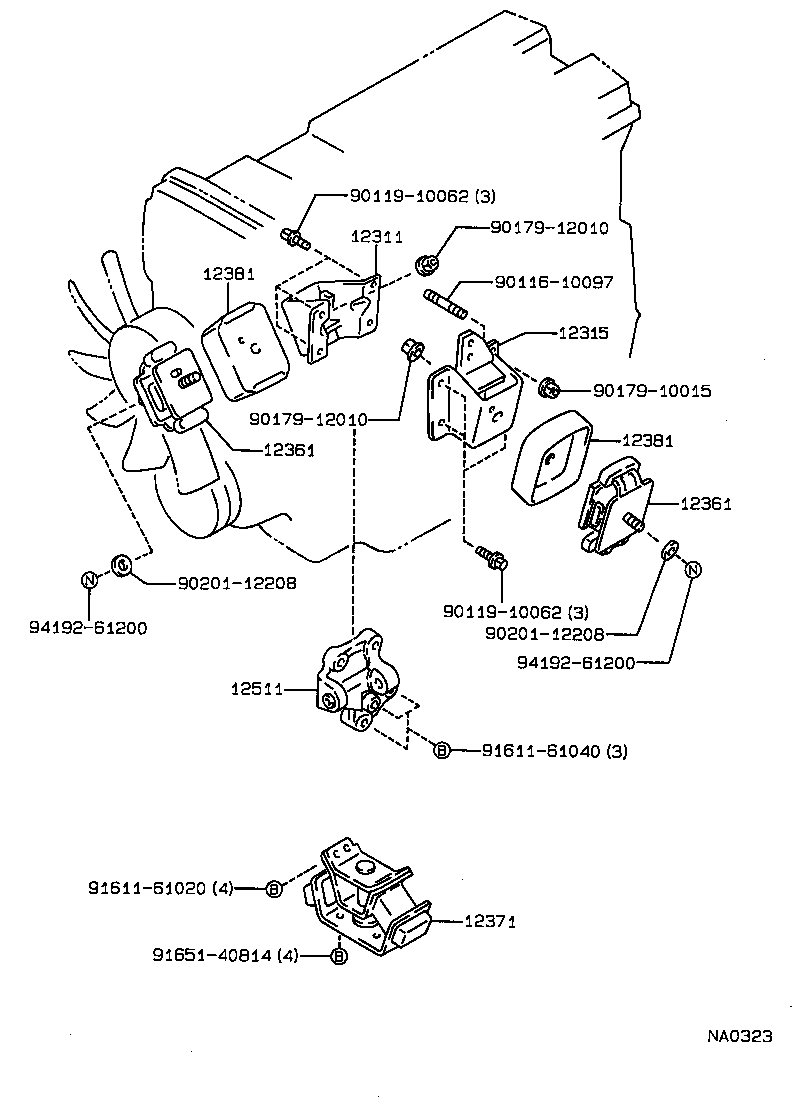

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-10097 | ||||
| 90119-10062 | ||||
| 90179-10015 | ||||
| 90179-12010 | ||||
| 90201-12208 | ||||
| 91611-61020 | ||||
| 91611-61040 | ||||
| 91651-40814 | ||||
| 94192-61200 | ||||
