MZ20-HCMZZ (1988)
Toyota Soarer

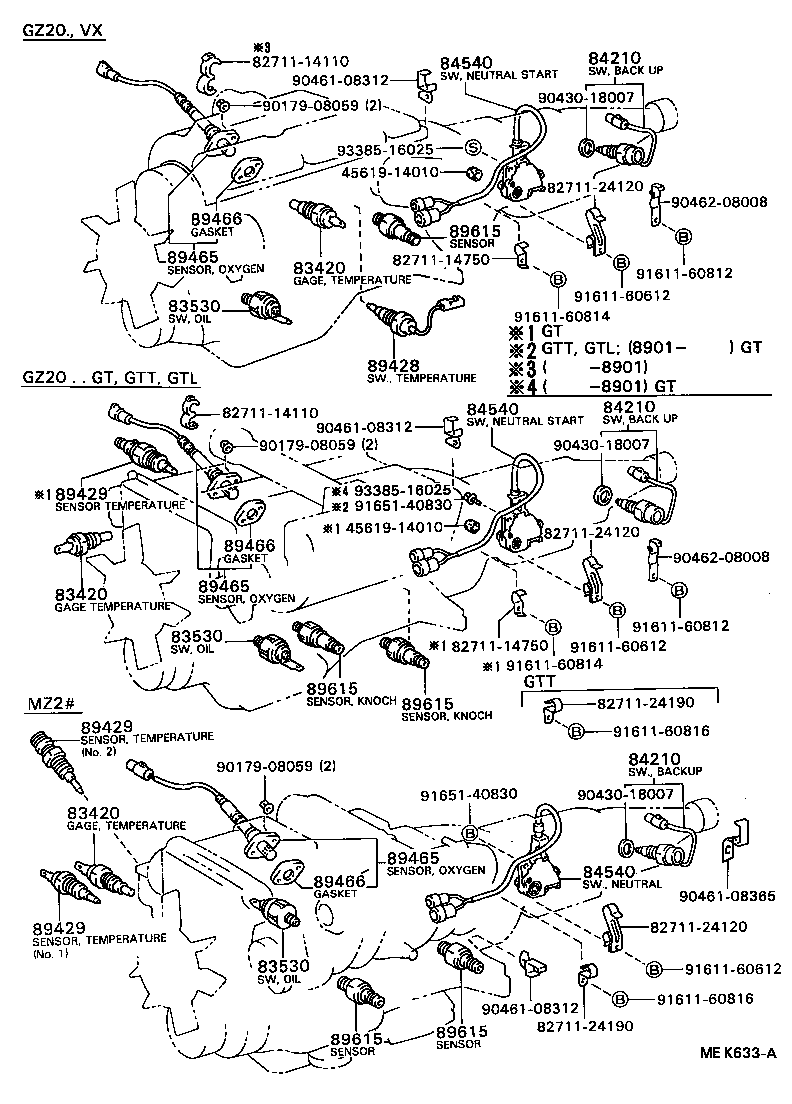

ILLUST NO. 1 OF 9(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GZ20,MZ2# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GZ20,MZ2# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GZ20,MZ2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
GZ20,MZ2# |
1 | ||
| 83530-14020 |
GZ20,MZ2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
GZ20,MZ2# |
1 | ||
| 83530-14020 |
GZ20,MZ2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
GZ20,MZ2# |
1 | ||
| 83530-14020 |
GZ20,MZ2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-35030 |
MZ2#..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-35030 |
MZ2#..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-35030 |
MZ2#..5F |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 88790-24110 |
MZ2# NO.1 |
1 | ||
| 88790-24090 |
MZ2# NO.2 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 88790-24110 |
MZ2# NO.1 |
1 | ||
| 88790-24090 |
MZ2# NO.2 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 88790-24110 |
MZ2# NO.1 |
1 | ||
| 88790-24090 |
MZ2# NO.2 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29155 |
MZ2# |
1 | ||
| 89465-29156 |
MZ2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29155 |
MZ2# |
1 | ||
| 89465-29156 |
MZ2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29155 |
MZ2# |
1 | ||
| 89465-29156 |
MZ2# |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
GZ20,MZ2#..TWT |
1 | ||
| 89466-30010 |
GZ20,MZ2#..TWT |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
GZ20,MZ2#..TWT |
1 | ||
| 89466-30010 |
GZ20,MZ2#..TWT |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
GZ20,MZ2#..TWT |
1 | ||
| 89466-30010 |
GZ20,MZ2#..TWT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
GZ20,MZ2#..TWT |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
GZ20,MZ2#..TWT |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
GZ20,MZ2#..TWT |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
GZ20,MZ2#..TWT |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
GZ20,MZ2#..TWT |
2 | ||
| Common parts | ||||
| 45619-14010 | ||||
| 82711-14110 | ||||
| 82711-14750 | ||||
| 82711-24120 | ||||
| 82711-24190 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-08365 | ||||
| 90462-08008 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91651-40830 | ||||
| 93385-16025 | ||||

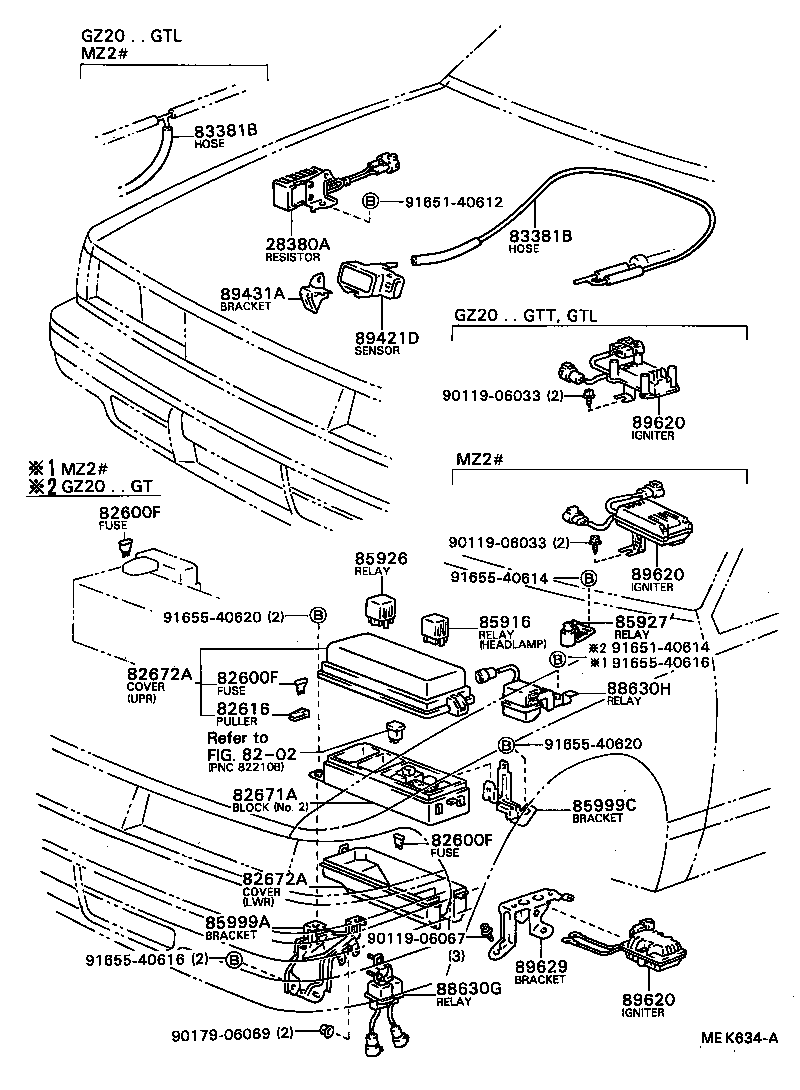

ILLUST NO. 2 OF 9(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-70010 |
1GGTEU,7MGTEU..GZ20,MZ2#..5F |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ20,MZ2# 10A |
2 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
3 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
1 | ||
| 90982-09003 |
MZ2#..GTL 15A |
2 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
4 | ||
| 90982-07011 |
GZ20;MZ20..GT 30A,緑 |
1 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
6 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
4 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ20,MZ2# 10A |
2 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
3 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
1 | ||
| 90982-09003 |
MZ2#..GTL 15A |
2 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
4 | ||
| 90982-07011 |
GZ20;MZ20..GT 30A,緑 |
1 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
6 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
4 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ20,MZ2# 10A |
2 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
3 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
1 | ||
| 90982-09003 |
MZ2#..GTL 15A |
2 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
4 | ||
| 90982-07011 |
GZ20;MZ20..GT 30A,緑 |
1 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
6 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
4 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
GZ20,MZ2# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-24030 |
GZ20,MZ2# NO.3 |
1 | ||
| 82671-24010 |
GZ20,MZ2# NO.2 |
1 | ||
| 82671-20030 |
GZ20,MZ2# NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-24070 |
MZ2#..GTL 上側 |
1 | ||
| 82672-24060 |
MZ20..GT 上側 |
1 | ||
| 82672-24010 |
GZ20,MZ2# 下側 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-24070 |
MZ2#..GTL 上側 |
1 | ||
| 82672-24060 |
MZ20..GT 上側 |
1 | ||
| 82672-24010 |
GZ20,MZ2# 下側 |
1 | ||
| 83381B - HOSE, VACUUM | ||||
| 90999-92002 |
GZ20,MZ2#..5F..(GT,GTL)..TWT *H,L=300 |
1 | ||
| 83381B - HOSE, VACUUM | ||||
| 90999-92002 |
GZ20,MZ2#..5F..(GT,GTL)..TWT *H,L=300 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GZ20,MZ2# NIPONDENSO,TAIL LAMP OR FR FOG LAMP |
2 | ||
| 90987-02002 |
GZ20,MZ2# MARUKO,TAIL LAMP OR FR FOG LAMP |
2 | ||
| 90987-02006 |
GZ20,MZ2# HEADLAMP |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
MZ2#..GTL |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-24020 |
GZ20,MZ2# |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-24030 |
GZ20,MZ2# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-24060 |
GZ20,MZ2# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-14080 |
MZ2# |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89420-24030 |
GZ20,MZ2#..5F..TWT |
1 | ||
| 89431A - BRACKET, TURBO PRESSURE SENSOR | ||||
| 89431-24020 |
GZ20,MZ2#..5F..TWT |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-14440 |
MZ2# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-14440 |
MZ2# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-14440 |
MZ2# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-14050 |
GZ20,MZ2# |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 90119-06067 | ||||
| 90179-06069 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91655-40614 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| Linked diagrams | ||||
| 8202 | ||||

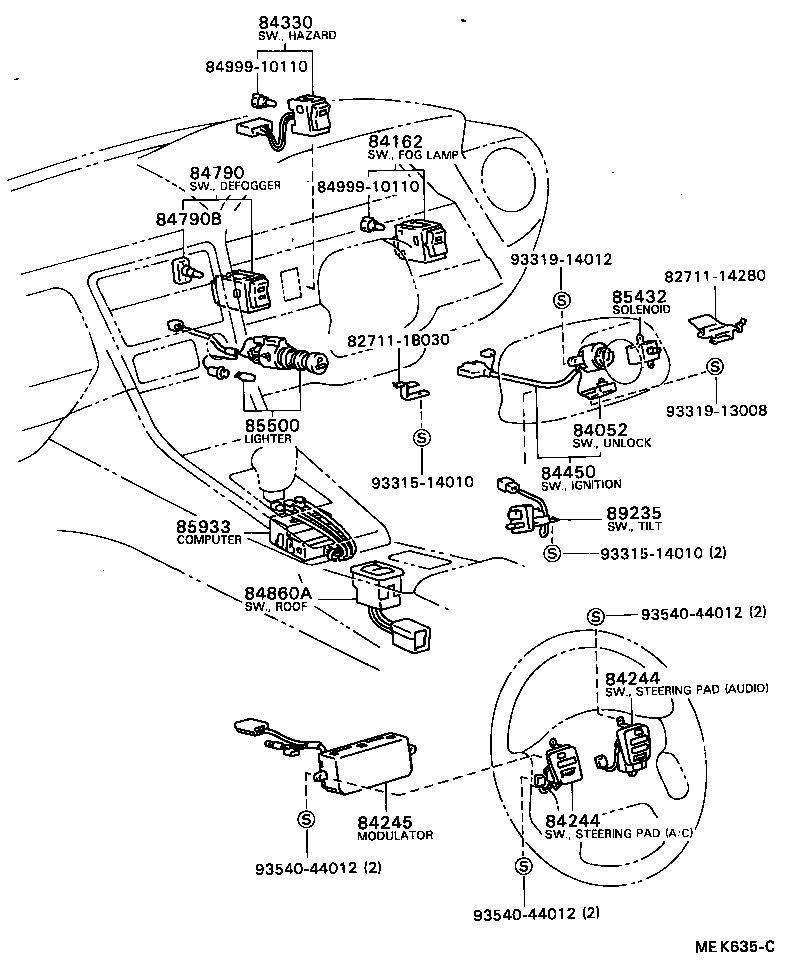

ILLUST NO. 3 OF 9(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-10020 |
GZ20,MZ2#..5F |
1 | ||
| 84052-10020 |
GZ20,MZ2# |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-24010 |
GZ20,MZ2# |
1 | ||
| 84244 - SWITCH, STEERING PAD | ||||
| 84244-2402001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,8#,AUDIO |
1 | ||
| 84244-2403001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,8#,A/C |
1 | ||
| 84244-2403005 |
GZ20,MZ2#..(GT,GTL)..TWT GRAIGE,TRIM4#,A/C |
1 | ||
| 84244-2402001 |
MZ2#..GTL BLACK,TRIM8#,AUDIO |
1 | ||
| 84244-2403001 |
MZ2#..GTL BLACK,TRIM8#,A/C |
1 | ||
| 84244-2402005 |
GZ20,MZ2#..(GT,GTL)..TWT GRAIGE,TRIM4#,AUDIO |
1 | ||
| 84244 - SWITCH, STEERING PAD | ||||
| 84244-2402001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,8#,AUDIO |
1 | ||
| 84244-2403001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,8#,A/C |
1 | ||
| 84244-2403005 |
GZ20,MZ2#..(GT,GTL)..TWT GRAIGE,TRIM4#,A/C |
1 | ||
| 84244-2402001 |
MZ2#..GTL BLACK,TRIM8#,AUDIO |
1 | ||
| 84244-2403001 |
MZ2#..GTL BLACK,TRIM8#,A/C |
1 | ||
| 84244-2402005 |
GZ20,MZ2#..(GT,GTL)..TWT GRAIGE,TRIM4#,AUDIO |
1 | ||
| 84245 - MODULATOR, STEERING PAD SWITCH | ||||
| 84245-24020 |
MZ2#..GTL ｱﾘ(ﾃﾞﾝﾜ ﾄﾘﾂｹ ﾀｲｵｳ) |
1 | ||
| 84245-24040 |
MZ2#..GTL |
1 | ||
| 84245-24030 |
MZ20..GT;GZ20..GTL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-24020 |
GZ20,MZ2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14060 |
GZ20,MZ2#..5F |
1 | ||
| 84450-14060 |
GZ20,MZ2# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-24030 |
GZ20,MZ2# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10200 |
GZ20,MZ2# 14V 0.56W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-24020 |
GZ20,MZ2# |
1 | ||
| 89235 - SWITCH, TILT STEERING | ||||
| 89235-24010 |
MZ2#..GTL |
1 | ||
| Common parts | ||||
| 82711-14280 | ||||
| 82711-1B030 | ||||
| 84999-10110 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93540-44012 | ||||

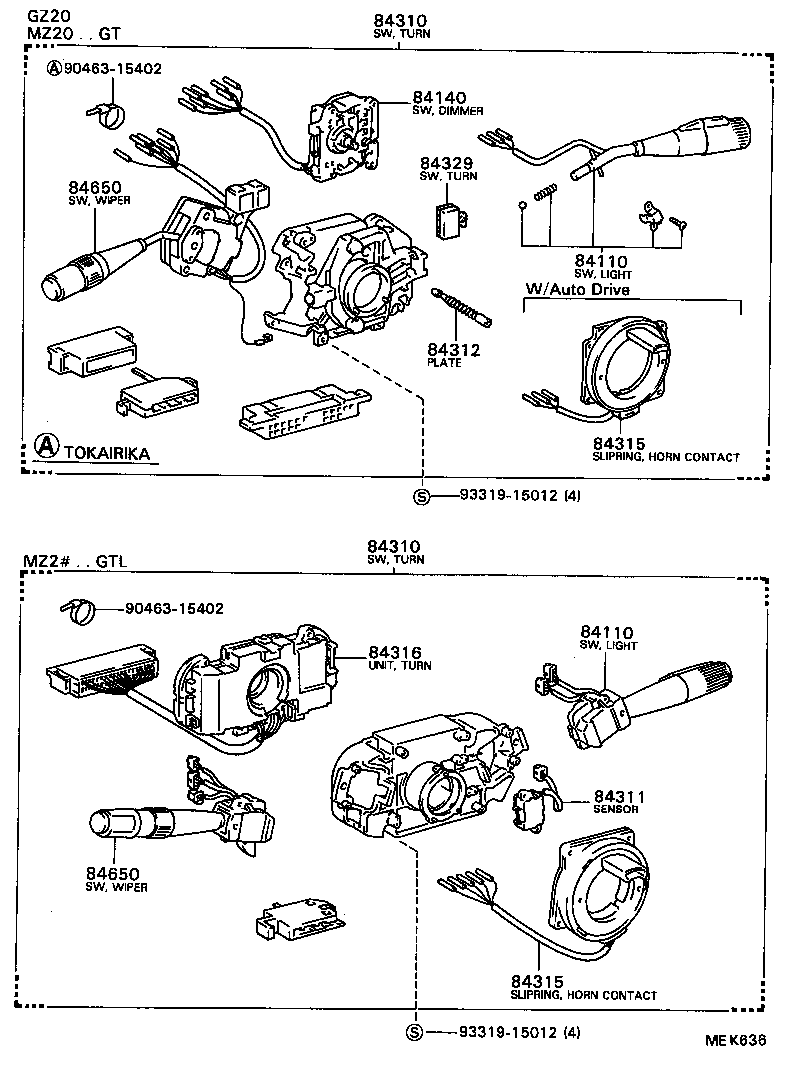

ILLUST NO. 4 OF 9(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29865 |
GZ20;MZ20..GT 東海理化 |
1 | ||
| 84112-24080 |
MZ2#..GTL |
1 | ||
| 84112-29865 |
GZ20..GTL;MZ20..CP..GT TOKAIRIK |
1 | ||
| 84112-29875 |
GZ20;MZ20..GT MATSUSHITA |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29865 |
GZ20;MZ20..GT 東海理化 |
1 | ||
| 84112-24080 |
MZ2#..GTL |
1 | ||
| 84112-29865 |
GZ20..GTL;MZ20..CP..GT TOKAIRIK |
1 | ||
| 84112-29875 |
GZ20;MZ20..GT MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20340 |
GZ20;MZ20..GT 東海理化 |
1 | ||
| 84140-20310 |
GZ20;MZ20..GT MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-24180 |
MZ2#..GTL |
1 | ||
| 84310-24260 |
MZ20..GT |
1 | ||
| 84310-24280 |
MZ20..CP..GT ｱﾘ(*RW & CD ﾌﾟﾚ-ﾔ) OR ｱﾘ(*RW & ｲｺﾗｲｻﾞ) OR ｱﾘ(*RW & ｵ-ﾄ ﾁｴﾝｼﾞﾔ) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-24180 |
MZ2#..GTL |
1 | ||
| 84310-24260 |
MZ20..GT |
1 | ||
| 84310-24280 |
MZ20..CP..GT ｱﾘ(*RW & CD ﾌﾟﾚ-ﾔ) OR ｱﾘ(*RW & ｲｺﾗｲｻﾞ) OR ｱﾘ(*RW & ｵ-ﾄ ﾁｴﾝｼﾞﾔ) |
1 | ||
| 84311 - SENSOR, TURN SIGNAL CANCEL | ||||
| 84311-24020 |
MZ2#..GTL |
1 | ||
| 84315 - SLIPRING, HORN CONTACT | ||||
| 84315-24080 |
MZ20..GT 東海理化 |
1 | ||
| 84315-24060 |
MZ2#..GTL |
1 | ||
| 84315 - SLIPRING, HORN CONTACT | ||||
| 84315-24080 |
MZ20..GT 東海理化 |
1 | ||
| 84315-24060 |
MZ2#..GTL |
1 | ||
| 84316 - UNIT, TURN SIGNAL | ||||
| 84316-24020 |
MZ2#..GTL |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-20050 |
GZ20;MZ20..GT |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-24160 |
MZ20..GT;GZ20..GTL 東海理化 |
1 | ||
| 84652-24170 |
MZ20..GT;GZ20..GTL MATSUSHITA |
1 | ||
| 84652-24200 |
GZ20..GTL;MZ20..CP..GT ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),東海理化 |
1 | ||
| 84652-24210 |
GZ20..GTL;MZ20..CP..GT ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),MATSUSHITA |
1 | ||
| 84652-24220 |
MZ2#..GTL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-24160 |
MZ20..GT;GZ20..GTL 東海理化 |
1 | ||
| 84652-24170 |
MZ20..GT;GZ20..GTL MATSUSHITA |
1 | ||
| 84652-24200 |
GZ20..GTL;MZ20..CP..GT ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),東海理化 |
1 | ||
| 84652-24210 |
GZ20..GTL;MZ20..CP..GT ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),MATSUSHITA |
1 | ||
| 84652-24220 |
MZ2#..GTL |
1 | ||
| Common parts | ||||
| 90463-15402 | ||||
| 93319-15012 | ||||

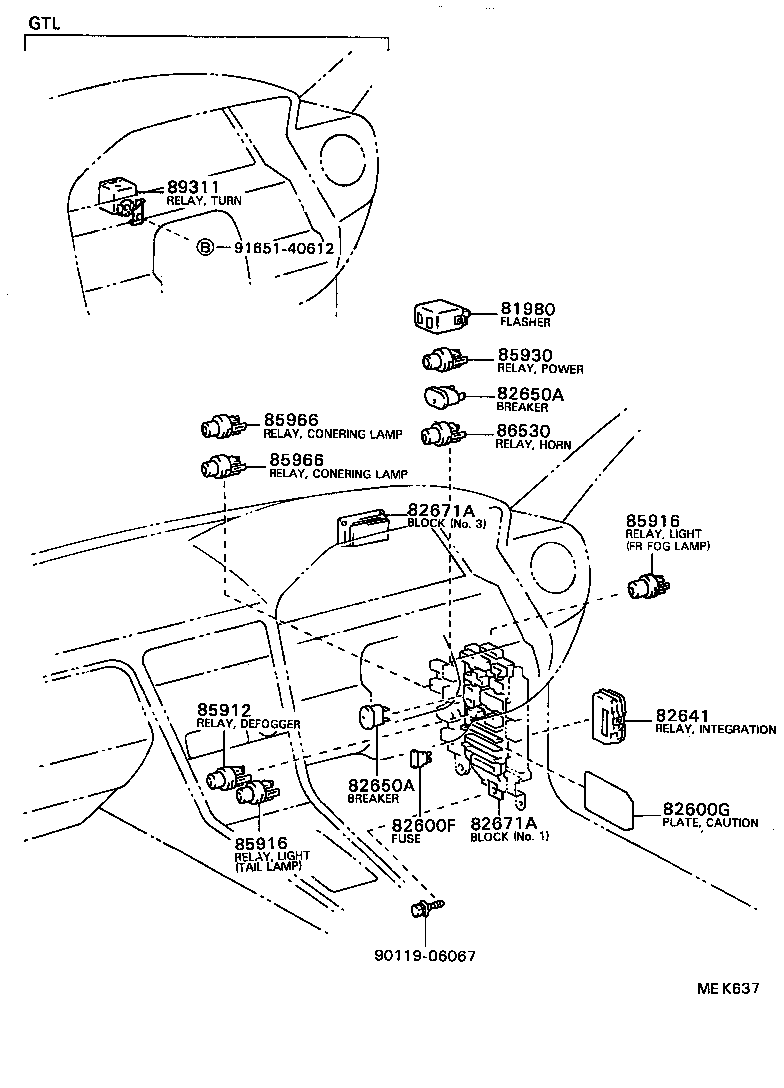

ILLUST NO. 5 OF 9(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
GZ20;MZ20..GT |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ20,MZ2# 10A |
2 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
3 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
1 | ||
| 90982-09003 |
MZ2#..GTL 15A |
2 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
4 | ||
| 90982-07011 |
GZ20;MZ20..GT 30A,緑 |
1 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
6 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
4 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-24030 |
GZ20,MZ2# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-24020 |
GZ20;MZ20..GT |
1 | ||
| 82641-24010 |
MZ2#..GTL |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20020 |
GZ20,MZ2# 40A |
1 | ||
| 82650-20011 |
GZ20,MZ2# 30A |
2 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20020 |
GZ20,MZ2# 40A |
1 | ||
| 82650-20011 |
GZ20,MZ2# 30A |
2 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-24030 |
GZ20,MZ2# NO.3 |
1 | ||
| 82671-24010 |
GZ20,MZ2# NO.2 |
1 | ||
| 82671-20030 |
GZ20,MZ2# NO.1 |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-24030 |
GZ20,MZ2# NO.3 |
1 | ||
| 82671-24010 |
GZ20,MZ2# NO.2 |
1 | ||
| 82671-20030 |
GZ20,MZ2# NO.1 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
GZ20,MZ2# NIPONDENSO |
1 | ||
| 90987-02002 |
GZ20,MZ2# MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GZ20,MZ2# NIPONDENSO,TAIL LAMP OR FR FOG LAMP |
2 | ||
| 90987-02002 |
GZ20,MZ2# MARUKO,TAIL LAMP OR FR FOG LAMP |
2 | ||
| 90987-02006 |
GZ20,MZ2# HEADLAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
GZ20,MZ2# NIPONDENSO,TAIL LAMP OR FR FOG LAMP |
2 | ||
| 90987-02002 |
GZ20,MZ2# MARUKO,TAIL LAMP OR FR FOG LAMP |
2 | ||
| 90987-02006 |
GZ20,MZ2# HEADLAMP |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
GZ20,MZ2# NIPPONDENSO |
1 | ||
| 90987-02002 |
GZ20,MZ2# MARUKO |
1 | ||
| 85966 - RELAY,CORNERING LAMP CONTROL | ||||
| 90987-02002 |
GZ20;MZ20..GT MARUKO |
1 | ||
| 90987-02004 |
GZ20;MZ20..GT NIPPONDENSO |
1 | ||
| 90987-02004 |
MZ2#..GTL |
2 | ||
| 85966 - RELAY,CORNERING LAMP CONTROL | ||||
| 90987-02002 |
GZ20;MZ20..GT MARUKO |
1 | ||
| 90987-02004 |
GZ20;MZ20..GT NIPPONDENSO |
1 | ||
| 90987-02004 |
MZ2#..GTL |
2 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
GZ20,MZ2# MARUKO |
1 | ||
| 90987-02002 |
GZ20,MZ2# MARUKO |
1 | ||
| 90987-02004 |
GZ20,MZ2# NIPPONDENSO |
1 | ||
| 90987-02002 |
GZ20,MZ2# MARUKO |
1 | ||
| 90987-02004 |
GZ20,MZ2# NIPPONDENSO |
1 | ||
| 89311 - RELAY, TURN SIGNAL | ||||
| 89311-24010 |
MZ2#..GTL |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 91651-40612 | ||||

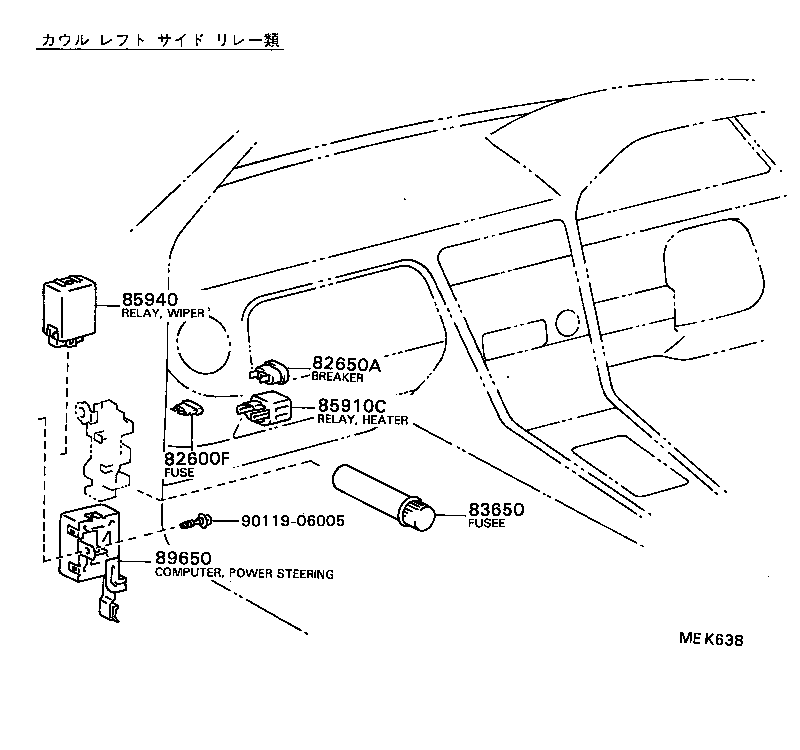

ILLUST NO. 6 OF 9(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GZ20,MZ2# 10A |
2 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
3 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
1 | ||
| 90982-09003 |
MZ2#..GTL 15A |
2 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
4 | ||
| 90982-07011 |
GZ20;MZ20..GT 30A,緑 |
1 | ||
| 90982-09003 |
GZ20,MZ2# 15A |
6 | ||
| 90982-09005 |
GZ20,MZ2# 7.5A |
4 | ||
| 90982-09004 |
GZ20,MZ2# 20A,黄 |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20020 |
GZ20,MZ2# 40A |
1 | ||
| 82650-20011 |
GZ20,MZ2# 30A |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
GZ20,MZ2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GZ20,MZ2# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-24040 |
MZ2#..GTL |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-24020 |
GZ20,MZ2#..(GT,GTL)..TWT |
1 | ||
| 89650-24040 |
GZ20,MZ2#..(GT,GTL)..TWT |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

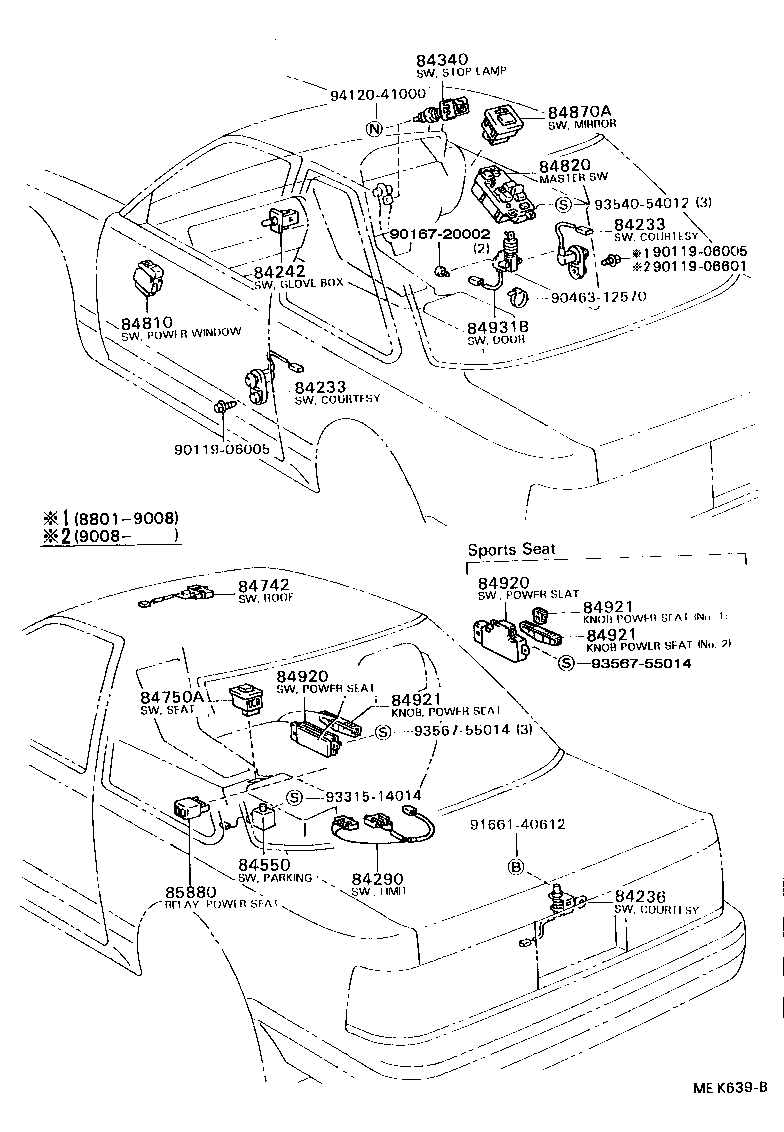

ILLUST NO. 7 OF 9(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12070 |
GZ20,MZ2# |
2 | ||
| 84231-24010 |
GZ20,MZ2# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12070 |
GZ20,MZ2# |
2 | ||
| 84231-24010 |
GZ20,MZ2# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-24020 |
GZ20,MZ2# |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GZ20,MZ2# |
1 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-24010 |
GZ20,MZ2#..(GT,GTL)..TWT |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22100 |
GZ20,MZ2#..(GT,GTL)..TWT |
1 | ||
| 84340-30050 |
GZ20,MZ2#..(GT,GTL)..TWT |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24030 |
GZ20,MZ2# |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-24010 |
GZ20,MZ2#..CP..(EFI,TWC,TWT) |
1 | ||
| 84750A - SWITCH ASSY, SEAT | ||||
| 84750-14050 |
MZ20..CP..GT ｱﾘ(ｽﾎﾟ-ﾂ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 84750-24020 |
GZ20,MZ20..CP..(GT,VX) |
1 | ||
| 84750-24020 |
GZ20,MZ2#..GTL ｱﾘ(ﾗｸﾞｼﾞﾕｱﾘ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 84750-14050 |
MZ20..AEC;GZ20,MZ2#..GTL,GTT |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
GZ20,MZ2# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-14180 |
GZ20,MZ2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-24020 |
GZ20,MZ2# ｱﾘ(ﾌｴﾝﾀﾞ- ﾐﾗ-) |
1 | ||
| 84870-24030 |
GZ20,MZ2# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84922-14020 |
GZ20,MZ2#..GTL ﾅｼ(ﾘｸﾗｲﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 84922-22010 |
MZ20..CP..GT ｱﾘ(ｽﾎﾟ-ﾂ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 84922-14020 |
MZ20..CP..GT |
1 | ||
| 84922-22010 |
MZ20..AEC;GZ20,MZ2#..GTL ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84922-14020 |
GZ20,MZ2#..GTL ﾅｼ(ﾘｸﾗｲﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 84922-22010 |
MZ20..CP..GT ｱﾘ(ｽﾎﾟ-ﾂ ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 84922-14020 |
MZ20..CP..GT |
1 | ||
| 84922-22010 |
MZ20..AEC;GZ20,MZ2#..GTL ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞ ｽｲﾂﾁ) |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-3003035 |
GZ20,MZ2#..(GT,GTL)..TWT GARIGE,TRIM4#,NO.2 |
1 | ||
| 84921-3002001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,NO.1 |
1 | ||
| 84921-1401014 |
GZ20,MZ2#..CP..(GT,GTL)..TWT DARK BLUE,TRIM8# |
1 | ||
| 84921-3002025 |
GZ20,MZ2#..(GT,GTL)..TWT GRAIGE,TRIM4#,NO.1 |
1 | ||
| 84921-3003001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,NO.2 |
1 | ||
| 84921-3002024 |
GZ20,MZ2#..CP..(GT,GTL)..TWT DARK BLUE,TRIM8#,NO.1 |
1 | ||
| 84921-3003034 |
GZ20,MZ2#..CP..(GT,GTL)..TWT DARK BLUE,TRIM8#,NO.2 |
1 | ||
| 84921-3003035 |
MZ20..GT;GZ20..GTL GARIGE,TRIM4#,8#,NO.2 |
1 | ||
| 84921-3003035 |
MZ2#..GTL GARIGE,TRIM4#,NO.2 |
1 | ||
| 84921-1401001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 84921-1401015 |
GZ20,MZ2#..CP..(GT,GTL)..TWT GRAIGE,TRIM4# |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-3003035 |
GZ20,MZ2#..(GT,GTL)..TWT GARIGE,TRIM4#,NO.2 |
1 | ||
| 84921-3002001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,NO.1 |
1 | ||
| 84921-1401014 |
GZ20,MZ2#..CP..(GT,GTL)..TWT DARK BLUE,TRIM8# |
1 | ||
| 84921-3002025 |
GZ20,MZ2#..(GT,GTL)..TWT GRAIGE,TRIM4#,NO.1 |
1 | ||
| 84921-3003001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,NO.2 |
1 | ||
| 84921-3002024 |
GZ20,MZ2#..CP..(GT,GTL)..TWT DARK BLUE,TRIM8#,NO.1 |
1 | ||
| 84921-3003034 |
GZ20,MZ2#..CP..(GT,GTL)..TWT DARK BLUE,TRIM8#,NO.2 |
1 | ||
| 84921-3003035 |
MZ20..GT;GZ20..GTL GARIGE,TRIM4#,8#,NO.2 |
1 | ||
| 84921-3003035 |
MZ2#..GTL GARIGE,TRIM4#,NO.2 |
1 | ||
| 84921-1401001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 84921-1401015 |
GZ20,MZ2#..CP..(GT,GTL)..TWT GRAIGE,TRIM4# |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-3003035 |
GZ20,MZ2#..(GT,GTL)..TWT GARIGE,TRIM4#,NO.2 |
1 | ||
| 84921-3002001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,NO.1 |
1 | ||
| 84921-1401014 |
GZ20,MZ2#..CP..(GT,GTL)..TWT DARK BLUE,TRIM8# |
1 | ||
| 84921-3002025 |
GZ20,MZ2#..(GT,GTL)..TWT GRAIGE,TRIM4#,NO.1 |
1 | ||
| 84921-3003001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2#,NO.2 |
1 | ||
| 84921-3002024 |
GZ20,MZ2#..CP..(GT,GTL)..TWT DARK BLUE,TRIM8#,NO.1 |
1 | ||
| 84921-3003034 |
GZ20,MZ2#..CP..(GT,GTL)..TWT DARK BLUE,TRIM8#,NO.2 |
1 | ||
| 84921-3003035 |
MZ20..GT;GZ20..GTL GARIGE,TRIM4#,8#,NO.2 |
1 | ||
| 84921-3003035 |
MZ2#..GTL GARIGE,TRIM4#,NO.2 |
1 | ||
| 84921-1401001 |
GZ20..GTL;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 84921-1401015 |
GZ20,MZ2#..CP..(GT,GTL)..TWT GRAIGE,TRIM4# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-24020 |
GZ20,MZ2# |
1 | ||
| 85880 - RELAY ASSY, POWER SEAT | ||||
| 85880-24010 |
GZ20,MZ2#..(GT,GTL)..TWT |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06601 | ||||
| 90167-20002 | ||||
| 90463-12570 | ||||
| 91661-40612 | ||||
| 93315-14014 | ||||
| 93540-54012 | ||||
| 93567-55014 | ||||
| 94120-41000 | ||||

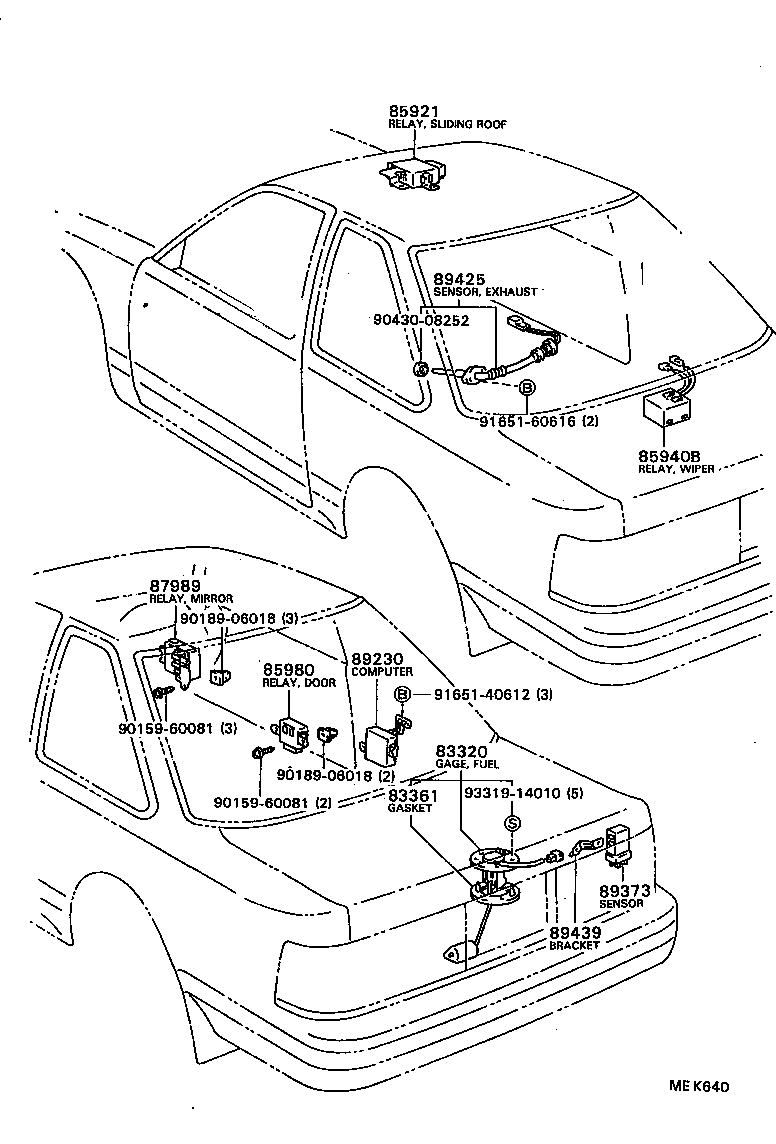

ILLUST NO. 8 OF 9(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80052 |
GZ20,MZ2# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GZ20,MZ2# |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-24010 |
GZ20,MZ2#..CP..(EFI,TWC,TWT) |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-24030 |
GZ20,MZ2#..CP..(TWC,TWT) |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-24040 |
GZ20,MZ2# |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-24010 |
GZ20,MZ2# |
1 | ||
| 89230 - COMPUTER ASSY, TILT STEERING | ||||
| 89230-24010 |
MZ2#..GTL |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-24060 |
GZ20,MZ2# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29425 |
GZ20,MZ2# |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-24010 |
GZ20,MZ2# |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90189-06018 | ||||
| 90430-08252 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 93319-14010 | ||||
ILLUST NO. 9 OF 9(8904-8905)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

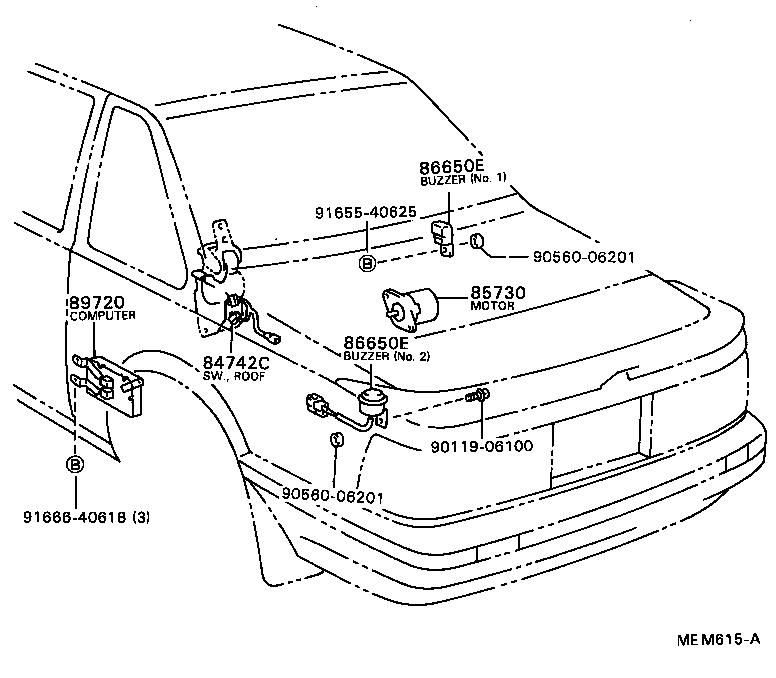

| Common parts | ||||
| 90119-06100 | ||||
| 90560-06201 | ||||
| 91655-40625 | ||||
| 91666-40618 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
