MZ20-HCMVZ (1987)

Toyota Soarer

Production Jan 1987 - Jan 1988
Engine 7MGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8701- )MZ2#..5F

Click highlighted areas on diagram

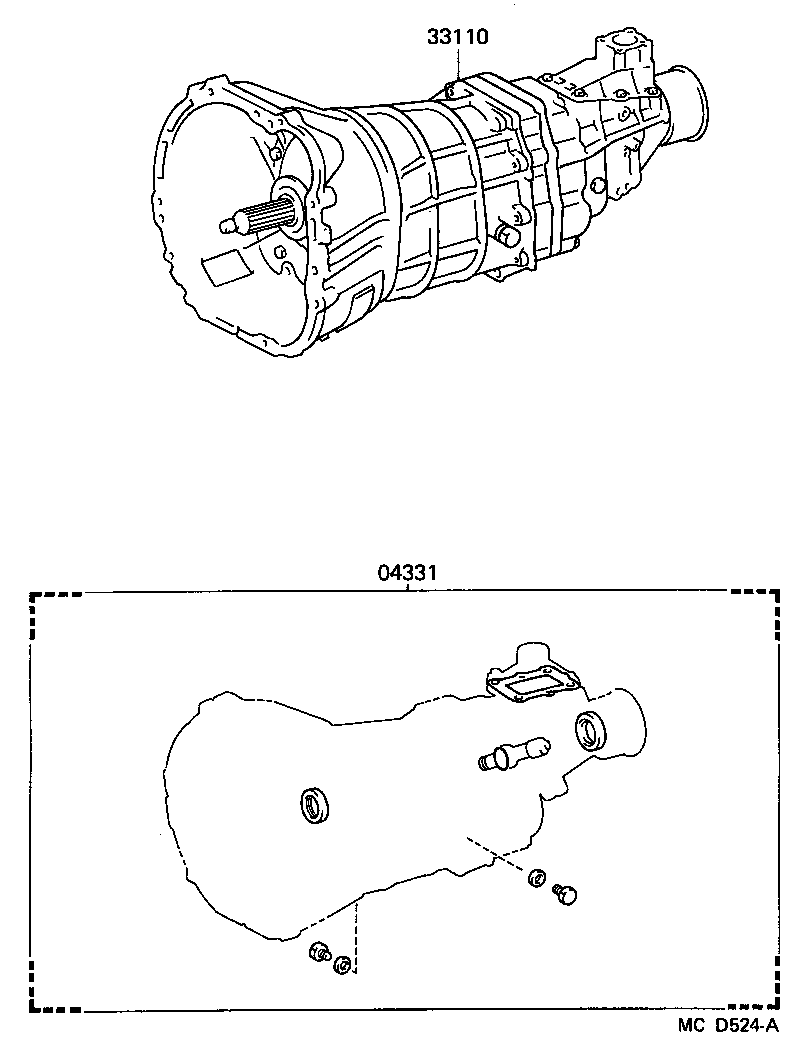

diagram 04331 33110
Part # Description Qty Price
04331 - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-14040

MZ2#..5F

 1
33110 - TRANSMISSION ASSY, MANUAL
33030-1B050

MZ2#..5F

W/ESC

 1
33030-1B040

MZ20..5F..GT

 1
33030-1B051

MZ2#..5F

W/ESC

 1
33030-1B041

MZ20..5F..GT

 1
