MZ20-HCMVZ (1988)
Toyota Soarer

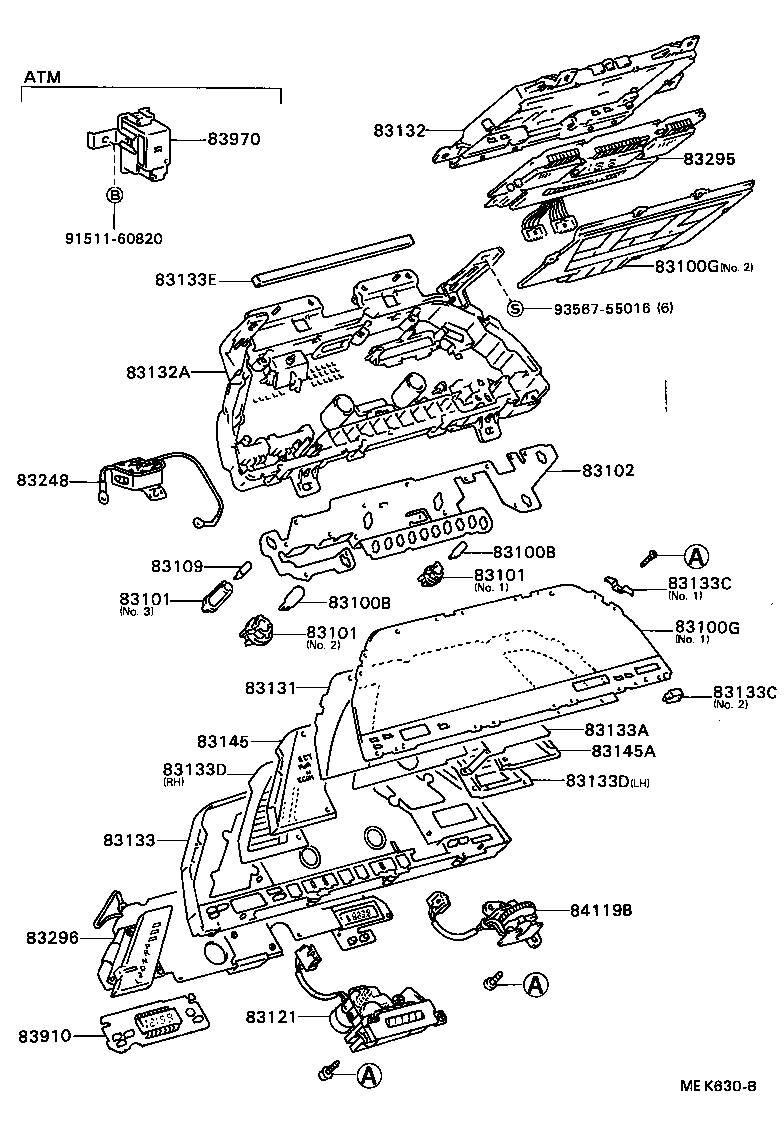

ILLUST NO. 1 OF 3(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GZ20,MZ2#..TWC,TWT 12V 1.2W ｿｹｯﾄ無し,12V 1.2W OR 14V 1.4W |
9 | ||
| 99132-12034 |
GZ20,MZ2# 12V 3.4W |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
GZ20,MZ2#..TWC,TWT 12V 1.2W ｿｹｯﾄ無し,12V 1.2W OR 14V 1.4W |
9 | ||
| 99132-12034 |
GZ20,MZ2# 12V 3.4W |
2 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-24070 |
GZ20,MZ2# NO.2 |
1 | ||
| 83138-24170 |
MZ2#..CP NO.1 |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-24070 |
GZ20,MZ2# NO.2 |
1 | ||
| 83138-24170 |
MZ2#..CP NO.1 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32010 |
GZ20,MZ2# NO.3 |
4 | ||
| 83101-14040 |
GZ20,MZ2#..TWC,TWT NO.2 |
10 | ||
| 83101-14030 |
MZ2#;GZ20..5F;GZ20..4FC..(HTWC,TWC,TWT) NO.1 |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32010 |
GZ20,MZ2# NO.3 |
4 | ||
| 83101-14040 |
GZ20,MZ2#..TWC,TWT NO.2 |
10 | ||
| 83101-14030 |
MZ2#;GZ20..5F;GZ20..4FC..(HTWC,TWC,TWT) NO.1 |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-32010 |
GZ20,MZ2# NO.3 |
4 | ||
| 83101-14040 |
GZ20,MZ2#..TWC,TWT NO.2 |
10 | ||
| 83101-14030 |
MZ2#;GZ20..5F;GZ20..4FC..(HTWC,TWC,TWT) NO.1 |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-24270 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24040 |
GZ20,MZ2# 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
5 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-24070 |
GZ20,MZ2# |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-24490 |
GZ20,MZ2# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-24130 |
GZ20,MZ2# |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-24150 |
GZ20,MZ2# |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-24350 |
GZ20,MZ2#..HTWC,TWC,TWT |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-24530 |
GZ20,MZ2# |
1 | ||
| 83133C - PLATE, COMBINATION METER,NO.4 | ||||
| 83133-24290 |
GZ20,MZ2# NO.1 |
8 | ||
| 83133-24310 |
GZ20,MZ2# NO.2 |
1 | ||
| 83133C - PLATE, COMBINATION METER,NO.4 | ||||
| 83133-24290 |
GZ20,MZ2# NO.1 |
8 | ||
| 83133-24310 |
GZ20,MZ2# NO.2 |
1 | ||
| 83133D - PLATE, DECORATION | ||||
| 83133-24450 |
GZ20,MZ2#..5F..TWT 左側 |
1 | ||
| 83133-24490 |
GZ20,MZ2#..5F..(GT,GTL)..TWT 右側 |
1 | ||
| 83133D - PLATE, DECORATION | ||||
| 83133-24450 |
GZ20,MZ2#..5F..TWT 左側 |
1 | ||
| 83133-24490 |
GZ20,MZ2#..5F..(GT,GTL)..TWT 右側 |
1 | ||
| 83133E - PLATE, URETHANE | ||||
| 83133-24510 |
GZ20,MZ2# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-24550 |
MZ2#..5F |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-24450 |
GZ20..TWC;GZ20,MZ2#..5F..(GT,GTL)..TWT |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-24010 |
GZ20,MZ2# |
1 | ||
| 83295 - PANEL, METER DISPLAY | ||||
| 83295-24040 |
MZ2# |
1 | ||
| 83296 - PANEL, METER COMPUTER | ||||
| 83296-24190 |
MZ2#..5F |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-24040 |
GZ20,MZ2# |
1 | ||
| 84119B - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-24050 |
GZ20,MZ2# |
1 | ||
| Common parts | ||||
| 91511-60820 | ||||
| 93567-55016 | ||||

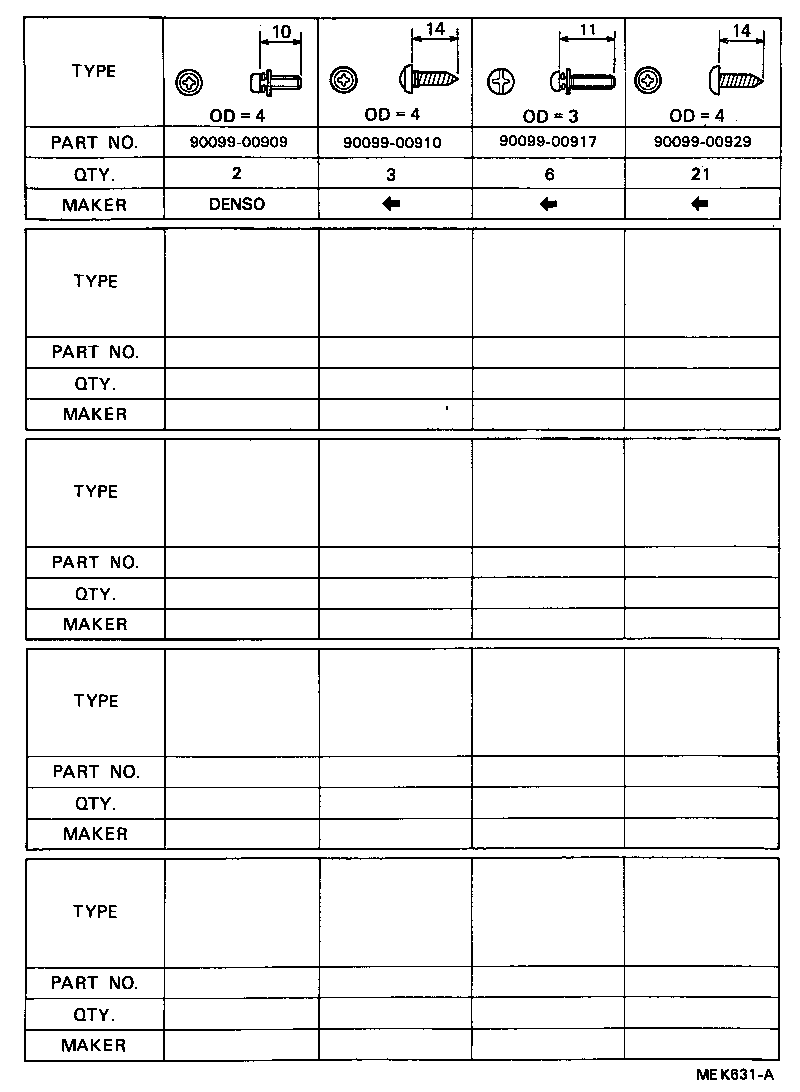

ILLUST NO. 2 OF 3(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||

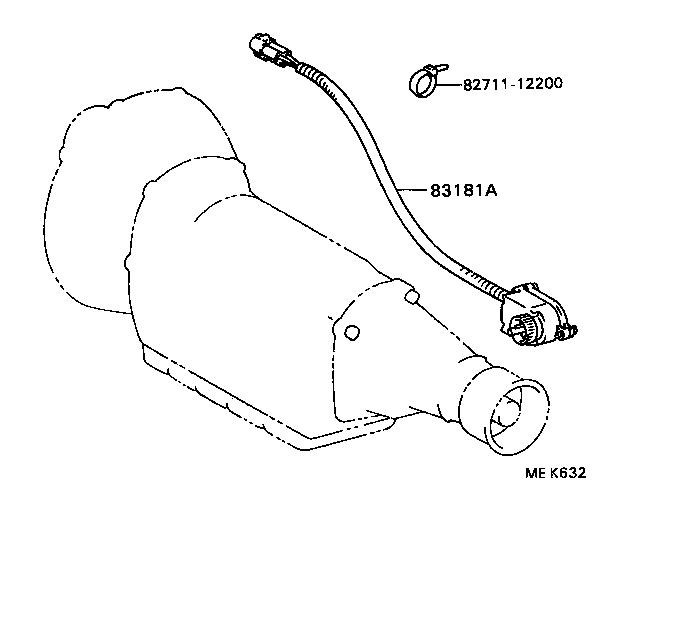

ILLUST NO. 3 OF 3(8801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24031 |
GZ20,MZ2#..5F |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
