MZ20-HCMVZ (1988)
Toyota Soarer
Production
Jan 1988
-
Apr 1991
Engine
7MGTEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8801- )CP

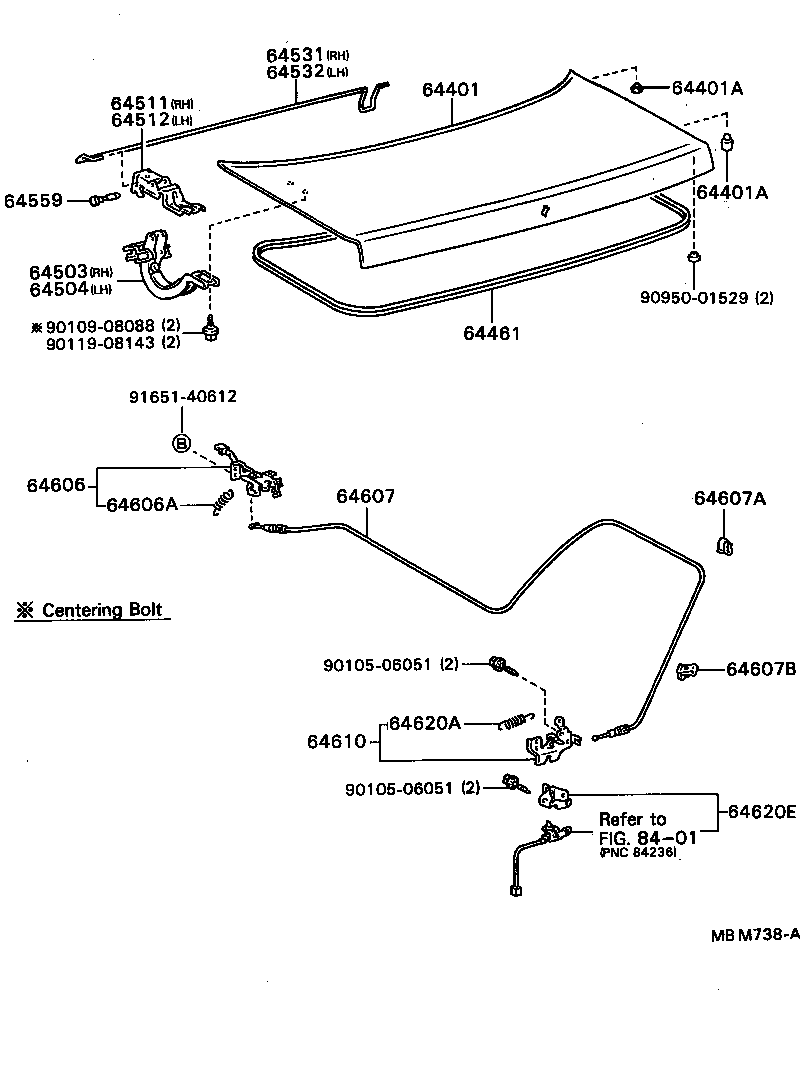

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-24051 |
GZ20,MZ2#..CP |
1 | ||
| 64401-24070 |
GZ20,MZ2#..CP ｴｱﾛ ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09016 |
GZ20,MZ2#..CP 外径=17 |
2 | ||
| 90541-06076 |
GZ20,MZ2#..CP OD=10 |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09016 |
GZ20,MZ2#..CP 外径=17 |
2 | ||
| 90541-06076 |
GZ20,MZ2#..CP OD=10 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-24030 |
GZ20,MZ2#..CP |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-24010 |
GZ20,MZ2#..CP |
1 | ||
| 64503-24020 |
GZ20,MZ2#..CP ｴｱﾛ ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64504-24010 |
GZ20,MZ2#..CP |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-24020 |
GZ20,MZ2#..CP |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-24020 |
GZ20,MZ2#..CP |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-24041 |
GZ20,MZ2#..CP ｴｱﾛ ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ |
1 | ||
| 64531-24030 |
GZ20,MZ2#..CP..(GT,GTL)..TWT |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-24030 |
GZ20,MZ2#..CP..(GT,GTL)..TWT |
1 | ||
| 64532-24041 |
GZ20,MZ2#..CP ｴｱﾛ ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12010 |
GZ20,MZ2#..CP |
2 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-2402004 |
GZ20,MZ2#..CP DARK BLUE,TRIM8# |
1 | ||
| 64606-2402001 |
GZ20;MZ20..CP..GT BLACK,TRIM2# |
1 | ||
| 64606-2402015 |
GZ20,MZ2# GREIGE,TRIM4# |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
GZ20,MZ2# |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-24040 |
GZ20,MZ2#..CP |
1 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90463-05002 |
GZ20,MZ2#..CP |
1 | ||
| 64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90463-05004 |
GZ20,MZ2#..CP |
2 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-24020 |
GZ20,MZ2# |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-08001 |
GZ20,MZ2# |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-24010 |
GZ20,MZ2# |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90109-08088 | ||||
| 90119-08143 | ||||
| 90950-01529 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||
