MZ20-HCMVZ (1988)

Toyota Soarer

Production Jan 1988 - Apr 1991
Engine 7MGTEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8801- )

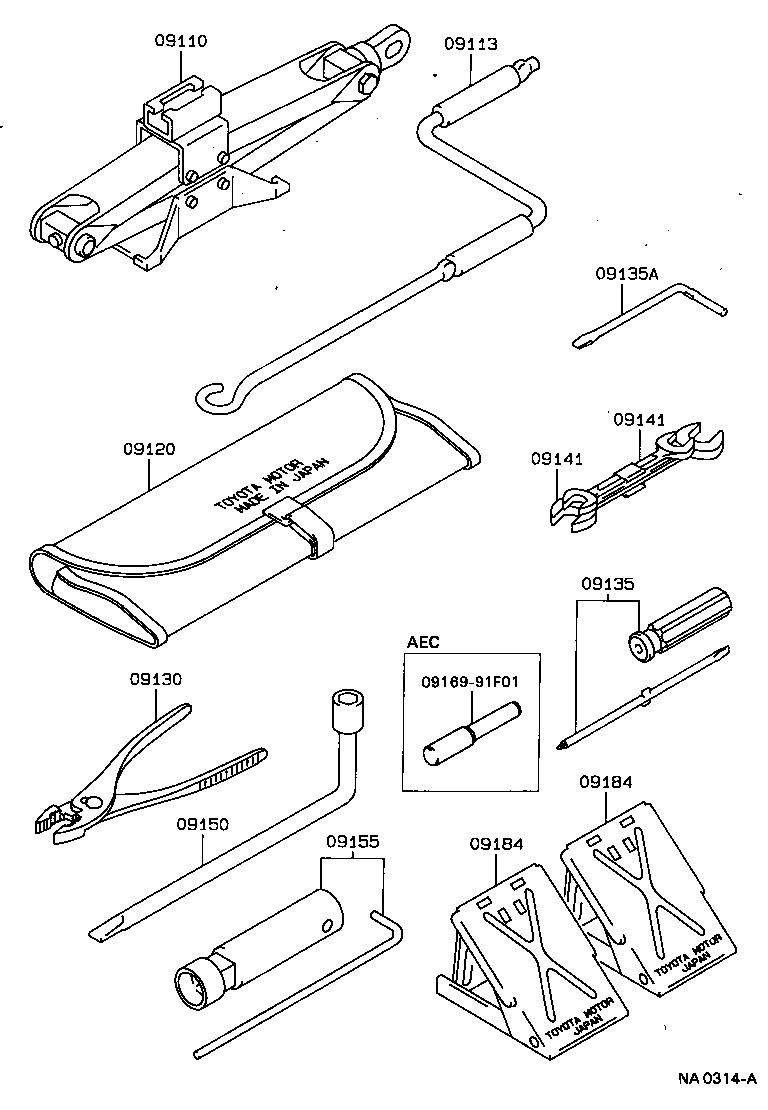

Click highlighted areas on diagram

diagram 09110 09113 09120 09130 09135 09135A 09141 09141 09150 09155 0916991F01 09184 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-24040

GZ20,MZ2#

 1
09113 - HANDLE, JACK
09113-24020

GZ20,MZ2#

 1
09120 - BAG, TOOL
09120-12011

GZ20,MZ2#

 1
09130 - PLIERS
99913-11500

GZ20,MZ2#

 1
09135 - DRIVER, SCREW
99915-10700

GZ20,MZ2#

 1
09135A - BIT, SCREW DRIVER
09135-00012

GZ20,MZ2#..CP

 1
09141 - SPANNER
99914-10810

GZ20,MZ2#

8 X 10

 1
99914-11214

GZ20,MZ2#

12 X 14

 1
09141 - SPANNER
99914-10810

GZ20,MZ2#

8 X 10

 1
99914-11214

GZ20,MZ2#

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

GZ20,MZ2#

 1
09155 - WRENCH, SPARK PLUG
09155-00100

MZ2#;GZ20..TWC

 1
09184 - STOPPER, WHEEL
09184-00010

GZ20,MZ2#

 1
09184 - STOPPER, WHEEL
09184-00010

GZ20,MZ2#

 1
Common parts
09169-91F01
